Frameless Motor

SEA MOTION has been the exclusive distributor of internationally renowned frameless motors in China since 2019. Our clientele covers universities, research institutes, and high-end manufacturing sectors across China. Simultaneously, our supply chain includes a group of outstanding manufacturers. They specialize in different areas and excel in different products. Some specialize in customized, small-batch, and specialty products, possessing strong R&D teams and a large number of skilled workers. Others specialize in producing large quantities of standard industrial products, possessing extremely strong QC management capabilities and ensuring excellent product consistency.

Send Inquiry

Product Description

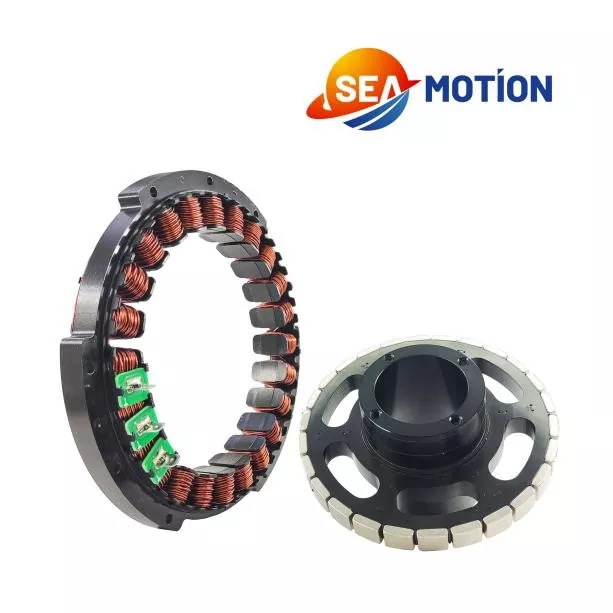

A frameless motor is a permanent magnet synchronous direct-drive motor that is shell-less, bearing-less, and shaftless. It consists only of a stator and a rotor, directly embedded into the equipment as part of the structure, and features high torque density, zero backlash, and high dynamic response.

Our technical team will evaluate customer requirements and select a suitable supplier. We will work with the supplier's R&D team to design and validate the product selection or magnetic circuit. After finalizing the solution, we will conduct simulations to ensure the reliability and controllability of the entire process.

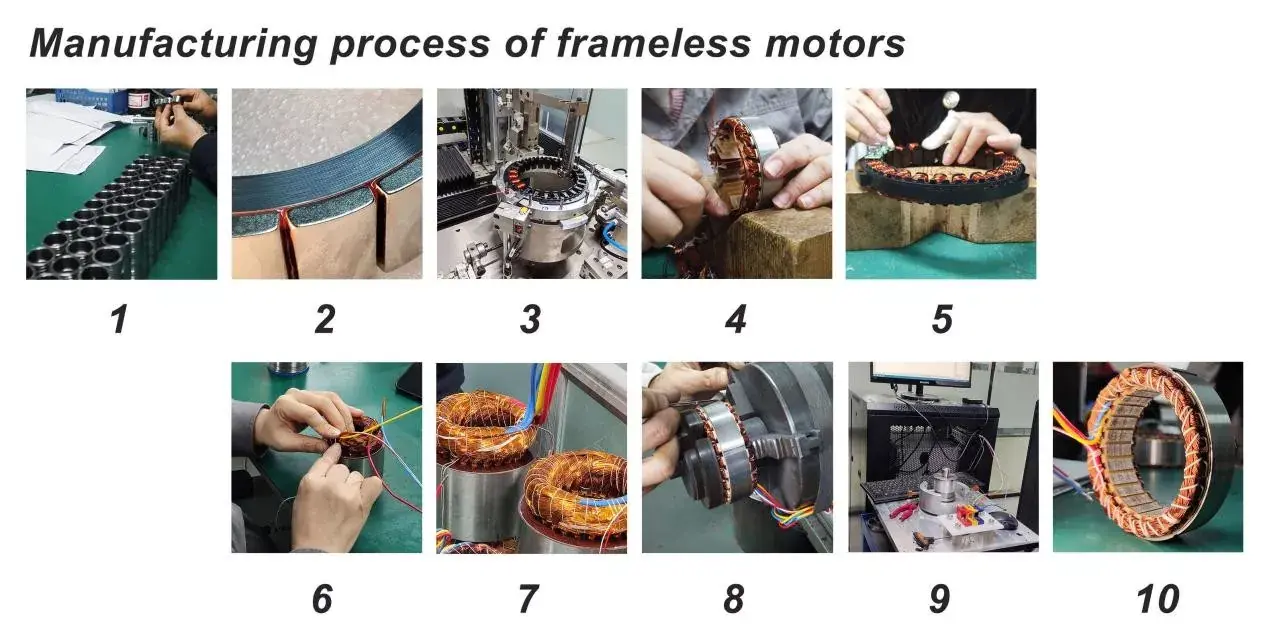

Next comes the complex production process. We have simplified the frameless motor production process into ten steps. The following is the frameless motor production process:

1. Material inspection, the rotor of a frameless motor requires precision machining.

2.For attaching the strong magnetic sheets, an anaerobic adhesive is used. Some high-speed rotors have a layer of carbon fiber attached to the outside of the strong magnetic sheets to prevent the sheets from being thrown off by excessive centrifugal force.

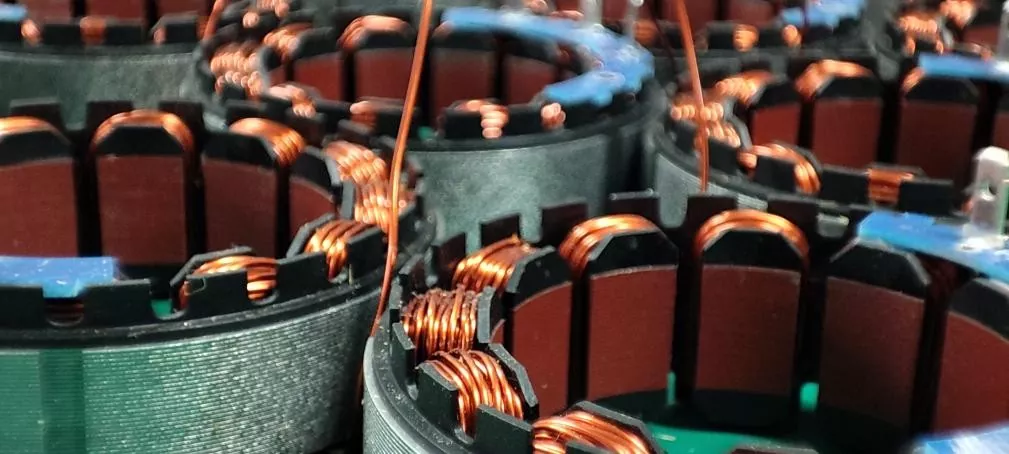

3.Automatic winding machines perform the winding work of the stator.

4.For some small-batch or customized products with high requirements for winding, manual winding is necessary. Manual winding is a highly technical task.

5.Organize the windings. Soft wooden tooling will be used here to avoid damaging the insulating varnish on the winding surface.

6.Soldering, involves soldering the windings to the conductors or PCB interface board.

7.The glue pouring process needs to be carried out in a vacuum environment to prevent air from entering, and then it needs to be baked in an oven.

8.Remove any residual adhesive from the surface of the stator magnet sheets.

9.Testing includes three-phase continuity testing, load testing, etc.

10.Finished product

Product Parameter

We can provide different winding patterns, magnetic circuit designs, packaging methods, and wiring methods according to customer needs. Below are the parameters for our standard products.

Model	Rated voltage Vdc	Rated speed rpm	Rated torque N·m	Rated power W	Rated current A	Peak current A	Peak torque N·m	Ke Vrms/krpm	Ω	mH	P
25LW01	24	4000	0.05	20	2.4	5.8	0.12	1.4	2.2	0.3	7
38LW01	27	2300	0.05	12	0.7	1.3	0.13	4.7	11.2	3.9	5
38LW02	48	9970	0.23	240	6.1	13	0.47	2.4	0.5	0.27	7
50LW01	48	3000	0.2	63	1.65	5.8	0.7	8.5	2.52	1.25	7
52LW01	48	3000	0.2	63	1.65	5.8	0.7	8.5	2.4	1.4	7
60LW01	48	4000	0.27	114	2.7	13	1.37	6.7	0.75	0.39	10
60LW02	24	2000	0.2	31.5	1	3.2	0.7	14.8	4.9	3.3	14
60LW03	48	4000	0.25	104	2.75	8.25	0.75	6.7	0.6	0.46	7
60LW04	220Vac	3500	0.275	100	0.77	2.3	0.82	25	9.1	4.9	10
60ZWS03	24	1700	0.54	96	5.6	17.5	1.68	6.25	0.62	0.32	8
60ZWS04	72	980	1.1	113	2.4	7.2	3.3	30.2	5.8	0.6	7
60ZWS05	72	980	0.54	55	1.2	3.6	1.6	28.8	12	11.3	7
60ZWS06	48	4800	0.76	477	10.2	30.6	2.2	4.7	0.09	0.072	8
68LW01	48	4000	0.55	231	5.6	19	1.65	6.4	0.44	0.35	7
76LW01	95	2200	2.8	646	10	24	8	23	0.8	0.8	10
76LW02	48	3900	0.63	258	5.6	36	2.86	7.56	0.28	0.25	10
76LW03	48	2000	1.2	252	7.2	21.6	3.6	11.17	0.55	0.52	10
76LW04	220Vac	2600	0.66	180	1.3	4.1	1.98	32.6	8.5	6.5	10
76LW05	48	3750	0.8	314	6.6	19.8	2.4	7.7	0.22	0.28	14
76LW06	220Vac	2240	0.66	207	1.3	4.1	1.98	31.4	9.66	7.85	8
76ZWS03	74	1620	3.3	560	9.9	33	10	23.2	2	0.7	14
76ZWS07	380Vac	700	0.95	700	1.63	4.8	2.85	40.5	5.8	30	5
76ZWS08	72	960	1.3	131	2.6	7.8	4	32.5	4.5	4.9	14
85LW01	27	140	0.9	13	1.5	4.0	2	11.2	9.69	7.39	8
85LW02	48	1500	1.7	267	11	42	5.1	11.2	0.28	0.27	14
85LW03	48	3600	0.95	358	7.8	23.4	2.85	7.7	0.25	0.3	7
85ZWS01	74	870	3.5	319	6	24	11	38.45	1.48	2.25	14
85ZWS03	74	1010	2.5	265	4.8	16.5	8	35.7	1.8	2.3	14
85ZWS07	74	900	2.3	216	4.1	13	7	35.7	2.3	3.4	14
88LW01	48	3000	1.28	403	14.5	45	4	6.36	0.102	0.0835	10
90LW01	28	800	0.75	63	3.6	10.8	2.25	16.12	0.62	0.38	14
95LW01	24	15	1.5	2.36	2	3.5	2.5	50.1	4.6	4.7	22
95LW02	48	3000	1.9	637	13	39	5.7	9.7	0.097	0.18	7
100ZWS01	600	900	9.55	9000	19	68	19	34	0.55	2.9	4
104LW01	48	3000	1.8	566	13	40	5.4	9.55	0.13	0.17	10
104LW03	48	2700	3	848	18.5	56	9	9.8	0.075	0.11	10
104LW04	48	2000	1.6	335	7.8	24	4.8	13.1	0.29	0.26	16
105ZWS01	74	1100	6	692	12	47	18	34	0.58	0.8	14
105ZWS02	74	960	6	604	10.5	43	18	36.7	0.65	1.25	14
105ZWS03	74	960	6	604	9.8	31	18	39.6	0.54	1.1	14
105ZWS06	48	1380	5.4	781	18	36	10.8	19.6	0.2	0.4	14
127LW01	48	2400	3.2	800	19.5	39	6.4	12.4	0.09	0.18	10
127LW02	48	2400	6.37	1600	35.5	71	12.7	11.5	0.039	0.095	10
127LW04	48	2000	6.5	1360	30	90	19.5	14	0.06	0.14	10
135LW01	48	2400	3.2	805	19.5	60	10	11	0.12	0.32	11
135ZWS01	95	750	10	786	11.8	37.8	32	53	0.52	1	16
135ZWS02	74	960	10	1006	17.8	65	30	37.3	0.26	0.45	21
172LW01	12	30	6.5	20.5	7	12.3	10	60	0.52	1.05	16
172LW02	12	100	6.5	68.5	13.6	23	11	32.5	0.17	0.36	13
172LW03	12	300	6.5	205	20.5	65	13.8	62	0.41	1.01	13
172LW04	12	30	4.5	14	8.2	11	6	34.2	0.41	0.83	13
175LW01	600	200	30	629	6.4	22	90	315	2.8	15.85	10
175LW02	220Vac	2500	15	3930	18	55	45	52	0.126	0.55	10
175LW03	220Vac	3200	6.5	2178	10.3	32	19.5	39	0.126	0.65	10

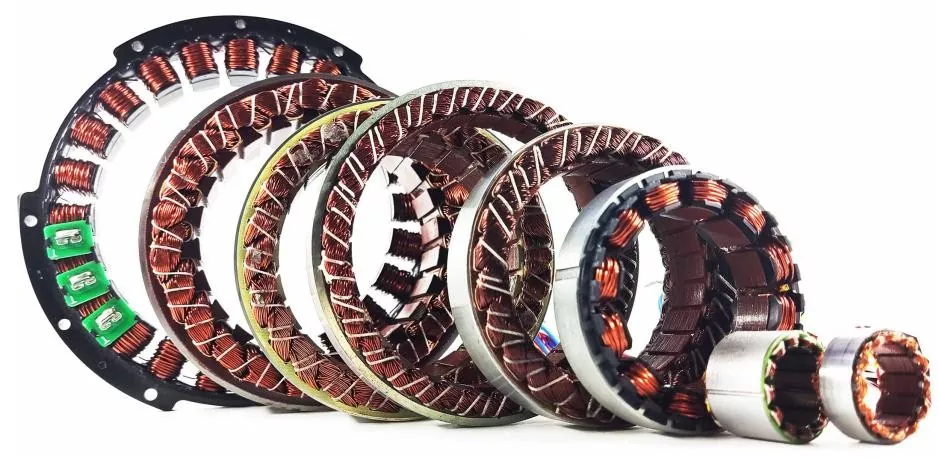

175-out diameter 175mm Standard motors can be customized with an outer diameter ranging from 12mm to 600mm. For larger and more specialized frameless torque motors, please consult our sales team.

Product feature And Application

The advantages of frameless motors are as follows:

1. High torque density: Torque is 2–3 times that of ordinary servos for the same volume, with excellent low-speed, high-torque characteristics.

2. Zero backlash + high precision: Gearless/coupling-free, repeatability accuracy up to ±1 arcsecond, high rigidity, and strong anti-disturbance.

3. Ultra-high dynamic response: Extremely low rotor inertia, response frequency > 1kHz, suitable for high-speed start-stop and frequent reversing.

4. Compact and lightweight: Eliminating the housing and transmission components reduces volume/weight by 30%–50%, facilitating hollow cabling.

5. Long life and maintenance-free: No brushes, no gear wear, lifespan up to tens of thousands of hours, only bearings are consumables.

6. Flexible design: Outer diameter, inner diameter, and length can be customized according to the equipment shape, supporting hollow through holes (for cabling/pipeline passage).

Specific applications include:

1. Humanoid/Collaborative Robots: Joint-driven (lightweight, hollow wiring, high torque).

2. Semiconductor/Panel Equipment: Wafer stages, lithography machines, precision rotary stages.

3. Medical Equipment: Surgical robots, CT/MRI scanners.

4. Aerospace: Servo motors, satellite antennas, optoelectronic pods.

5. CNC Machine Tools: Direct-drive rotary stages, high-speed spindles, five-axis linkage.

Production Details and size / mm

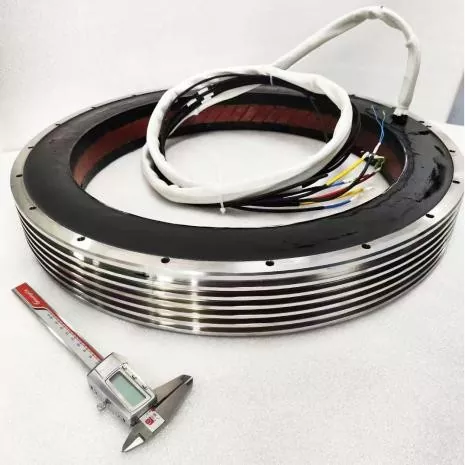

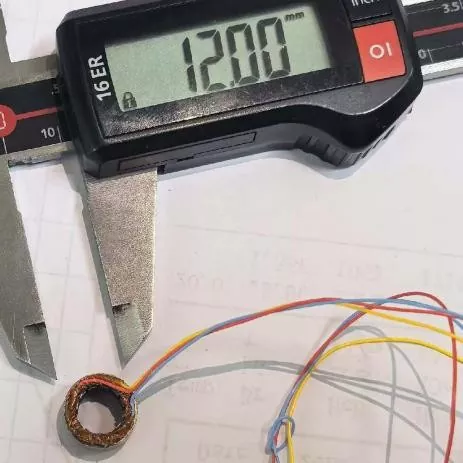

Besides standard industrial products, we accept customized frameless motor orders. Our customized sizes range from a minimum outer diameter of 12mm to 600mm.
