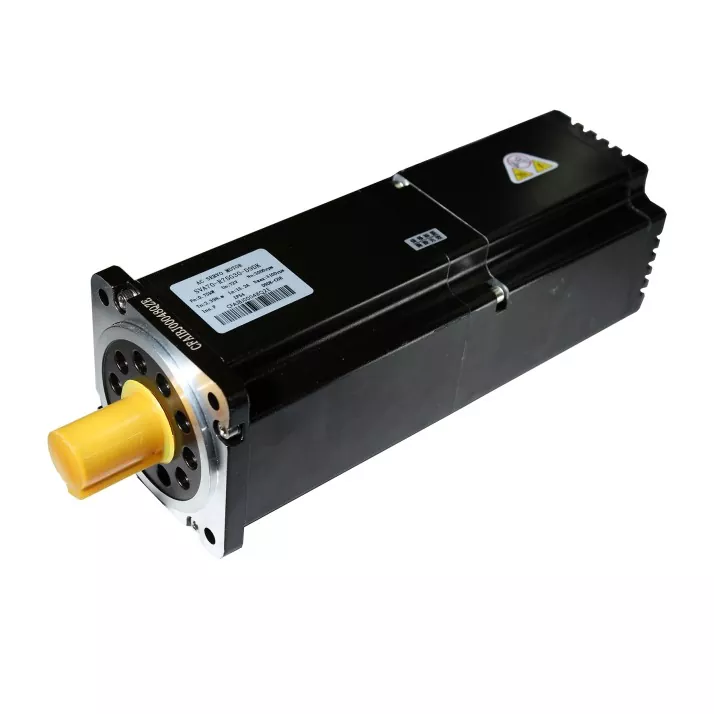

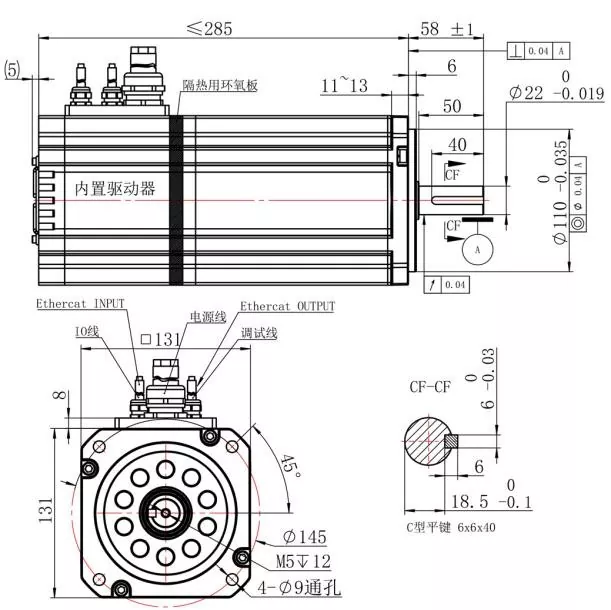

Integrated driver 130#-3000W48V2000-2100RPM, POSITAL 17-bit multi-turn (no battery, BISSS-C protocol), output spindle 22-55mm + 140A driver with interface board B1.0 + cooling fan
The SEA MOTION ISM-3000 uses a 48V dc intergrated servo motor, SEA140A drive, and POSITAL 17-bit multi-turn encoder (no battery, BIS-C). After rigorous testing and verification by our customers, it has been delivered in large quantities.
The SEA MOTION ISM-3000 integrated DC servo motor supports EtherCAT communication and is a plug-and-play product. It can be directly integrated into a servo system as an action execution unit, eliminating the need for motor-drive-encoder selection, installation, and debugging.
High integration, high control precision, ease of operation, and customization support are the hallmarks of JINGYUE Technology's Integrated DC servo motor products. Leveraging SEA MOTION high-performance drive products and the excellent servo motor manufacturers within SEA MOTION supply chain, as well as the world-renowned encoder manufacturer POSITAL, we deliver near-perfect Integrated DC servo motor products to our customers.
|
Parameter |
Value |
Unit & Remark |
|
Rated power |
3000 |
W |
|
Rated voltage |
48 |
VDC |
|
Rated current |
81 |
A |
|
Peak current |
162±10% |
A |
|

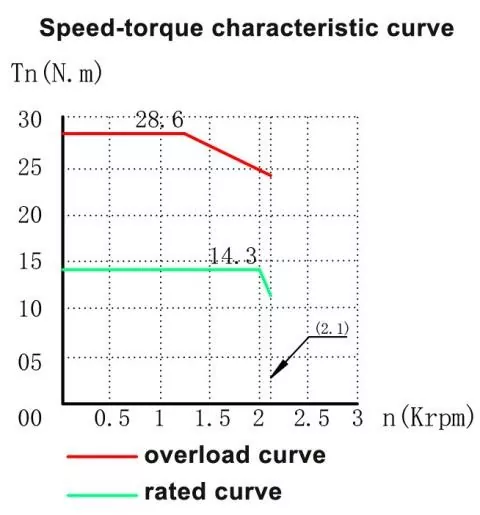

Rated torque |
14.3 |
N.M |
|
Peak torque |
28.6 |
N.M |
|
Rated speed |
2000 |
RPM |
|
Max speed |
2100 |
RPM |
|
Back electromotive force |
11.1±10% |
V/Krpm |
|
Torque coefficient |
0.18±10% |
N.M/A |
|
Rotor inertia |
35.2±20% |
kg.cm² |
|
Working temperature |
0~40℃ |
No ice |
|
Storage temperature |
-40℃~85℃ |
— |
|
Motor poles |
10 |
— |
|
Ambient humidity |
20~80%RH |
No condensation |
|
Waterproof level |
IP54 |
— |
Built-in fan cooling, 17-bit multi-turn feedback, no battery memory, BISS-C protocol
The SEA MOTION ISM-3000 integrated DC servo motor uses a high-performance military-grade 48V dc intergrated servo motor, SEA140A drive, and POSITAL 17-bit multi-turn encoder. The product uses EtherCAT bus communication and has an IP54 waterproof rating. It also features a built-in fan for cooling.
Different from traditional integrated DC servo motors, the superior performance of the SEA MOTION ISM-3000 integrated DC servo motor is not only due to the use of high-performance motors, drives, and encoders, but also because we have spent more time on debugging, integration, and improvement between different components, making the product a truly integrated whole.
The SEA MOTION ISM-3000 integrated DC servo motor features extremely high integration, excellent control precision, and easier installation and use.
1. Heavy-duty AGVs;
2. CNC welding equipment;
3. Integrated circuit and semiconductor equipment, such as LCD panel production lines;
4. Industrial automation equipment;
