Frameless torque motors are becoming an important solution for industries that require compact structures, high torque output, and extremely accurate motion control. Unlike conventional motors with integrated housings, frameless torque motors are designed as separate rotor and stator components that can be directly integrated into mechanical systems. This design approach helps engineers reduce transmission losses, improve responsiveness, and create smaller yet more powerful equipment. SEA MOTION provides advanced motion control solutions designed to support high-performance applications where accuracy, efficiency, and reliability are essential.
This article explains how frameless torque motors work, their key advantages, application fields, selection considerations, and how they solve common engineering challenges in modern automation systems.
Modern industrial equipment requires more than simple rotational movement. Manufacturers increasingly need motion systems that provide higher accuracy, faster response, lower maintenance requirements, and better space utilization. Traditional motor systems often rely on gearboxes, couplings, and mechanical transmission components to transfer power. Although these components can achieve the required movement, they may introduce backlash, friction, vibration, and efficiency losses.
A frameless torque motor offers a different approach. By removing the traditional motor housing, shaft, and mechanical transmission structure, the motor components can be directly integrated into the machine design. This allows engineers to create compact direct-drive systems with improved control performance.

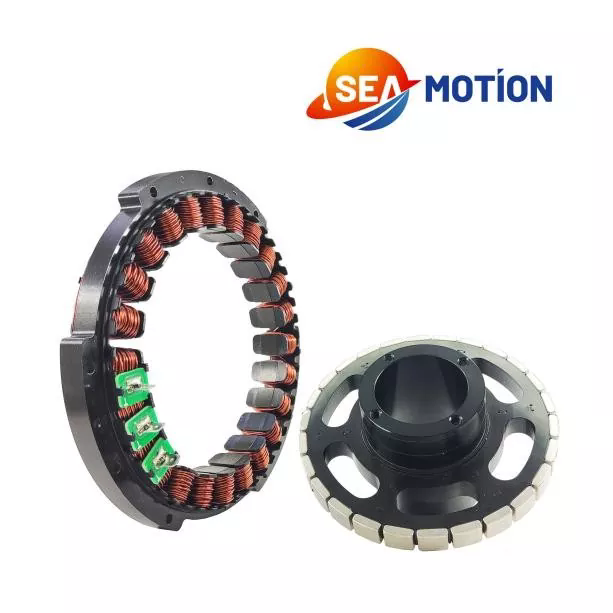

A typical frameless torque motor consists of two major electromagnetic parts: the rotor and the stator. The rotor generates magnetic interaction with the stator windings to produce rotational torque. Since the motor is directly connected to the driven mechanism, fewer mechanical components are required, resulting in smoother operation and higher positioning accuracy.
For precision industries such as robotics, semiconductor equipment, medical devices, aerospace systems, and automated manufacturing, this design provides significant advantages. SEA MOTION focuses on developing high-performance motion control solutions that help customers achieve reliable and accurate movement performance in demanding environments.
Understanding the operating principle of a frameless torque motor helps engineers choose the right solution for their equipment. The working process is based on electromagnetic force generated between the stator and rotor.
The stator contains electrical windings that create a rotating magnetic field when current passes through them. The rotor contains permanent magnets that interact with this magnetic field. This interaction generates torque, causing the rotor to rotate.
Unlike conventional servo motors, frameless torque motors do not include a complete external casing or built-in mechanical components. Instead, the motor manufacturer provides optimized electromagnetic components that machine designers install directly into their own equipment structures.
| Component | Function | Engineering Benefit |
|---|---|---|
| Stator | Creates electromagnetic rotating field | Provides stable torque generation |
| Rotor | Produces magnetic interaction with stator | Delivers direct rotational force |
| Encoder Feedback System | Measures position and speed | Improves motion accuracy |
| Servo Drive | Controls current and motor operation | Enables precise dynamic control |
Because the motor directly drives the load, the system avoids many limitations caused by traditional transmission mechanisms. This direct-drive structure is especially valuable where extremely precise positioning and smooth movement are required.
Choosing the correct motor technology directly affects machine performance, reliability, and long-term operating costs. Frameless torque motors provide several advantages that address common challenges faced by equipment manufacturers.
For automation manufacturers, these benefits can translate into improved productivity and more reliable equipment performance.
The unique design characteristics of frameless torque motors make them suitable for many industries requiring accurate rotary motion.
| Industry | Application Examples | Main Requirements |
|---|---|---|
| Robotics | Robot joints, collaborative robots, robotic arms | High torque, compact size, precise movement |
| Semiconductor Manufacturing | Wafer handling equipment and positioning platforms | Ultra-high accuracy and smooth operation |
| Medical Equipment | Precision scanning and diagnostic systems | Quiet operation and reliability |
| Industrial Automation | Rotary tables and automated machinery | Fast response and long service life |
| Aerospace Equipment | Precision control mechanisms | Low weight and dependable performance |
In robotics applications, frameless torque motors allow designers to build smaller and more flexible robotic joints. In manufacturing systems, they help improve positioning accuracy and reduce production errors.
Selecting a suitable frameless torque motor requires a detailed understanding of the machine structure, operating conditions, and performance requirements. A motor that matches the application can significantly improve efficiency, accuracy, and product lifetime. However, choosing an unsuitable motor may result in insufficient torque, overheating, unstable operation, or unnecessary costs.
Engineers should evaluate several important factors before integrating a frameless torque motor into a motion system.
| Selection Factor | Why It Matters | Key Considerations |
|---|---|---|
| Required Torque | Determines whether the motor can drive the application effectively | Load weight, acceleration requirements, continuous and peak torque |
| Speed Requirements | Affects overall system productivity and response capability | Maximum rotation speed, operating cycles, dynamic performance |
| Installation Space | Influences mechanical design flexibility | Outer diameter, motor height, integration dimensions |
| Control Accuracy | Determines positioning performance | Encoder resolution, feedback system compatibility |
| Thermal Performance | Ensures stable long-term operation | Heat dissipation, cooling method, working environment |
Another important consideration is compatibility between the motor and control system. Frameless torque motors are commonly used with advanced servo drives and high-resolution feedback devices. A properly matched control system allows the motor to achieve smoother operation, faster response, and improved energy efficiency.
SEA MOTION provides professional frameless torque motor solutions designed for different industrial requirements. By considering application conditions and customer equipment specifications, suitable motor configurations can be developed to achieve reliable motion performance.
Although traditional motors remain widely used in many industries, frameless torque motors provide unique advantages for advanced precision applications. Understanding the differences helps manufacturers determine which technology better meets their equipment requirements.
| Comparison Item | Frameless Torque Motor | Traditional Motor System |
|---|---|---|
| Mechanical Structure | Separate rotor and stator for direct integration | Complete motor assembly with housing and shaft |
| Transmission Components | Usually no gearbox or coupling required | Often requires additional mechanical components |
| Positioning Accuracy | High accuracy due to reduced mechanical error | May experience backlash and transmission loss |
| Installation Flexibility | Highly customizable for machine designs | Limited by standard motor dimensions |
| Maintenance Requirements | Lower mechanical maintenance needs | More components may require inspection |
| Application Focus | Precision automation and direct-drive systems | General industrial rotation applications |
For simple rotational applications, conventional motors may still provide an economical solution. However, when equipment requires compact design, high precision, and fast dynamic response, frameless torque motors often provide better long-term value.
The performance of a motion system depends not only on motor technology but also on engineering experience, product quality, and application support. SEA MOTION focuses on providing advanced motion control products that help customers overcome complex automation challenges.
Frameless torque motors from SEA MOTION are designed for applications where precision, efficiency, and reliability are critical. The company emphasizes optimized electromagnetic design, stable manufacturing processes, and flexible solutions to support different industrial requirements.
Key benefits of working with SEA MOTION include:
As industries continue moving toward intelligent manufacturing and automated production, the demand for high-performance motion components continues to increase. Frameless torque motors provide an effective way to improve machine capability while reducing mechanical complexity.
Although frameless torque motors require fewer mechanical components compared with traditional motor systems, proper maintenance and operating practices remain important for achieving stable performance.
With proper integration and maintenance, frameless torque motors can provide consistent performance for many years, supporting manufacturers in improving equipment reliability and reducing downtime.
A frameless torque motor is a direct-drive motor consisting of separate rotor and stator components without a traditional motor housing. It is integrated directly into a machine structure to provide high torque density, accurate motion control, and flexible installation.
Robotic systems require compact, lightweight, and highly accurate movement solutions. Frameless torque motors provide direct-drive torque output, reduce mechanical transmission errors, and enable smaller robotic joint designs.
In many precision applications, frameless torque motors can improve system efficiency because they reduce mechanical transmission losses. However, overall efficiency depends on the complete motion system design, operating conditions, and control strategy.
Industries including robotics, semiconductor manufacturing, medical equipment, aerospace, and industrial automation commonly use frameless torque motors because these fields require accurate, reliable, and compact motion solutions.
The selection process should consider torque requirements, speed, installation dimensions, thermal conditions, control compatibility, and accuracy requirements. Working with an experienced supplier such as SEA MOTION can help ensure the selected motor matches the application.
Frameless torque motors represent an important advancement in modern motion control technology. By combining direct-drive performance, compact integration, and high precision, they help manufacturers create more efficient and reliable equipment.
Compared with traditional motor systems, frameless torque motors reduce mechanical complexity while providing improved responsiveness and positioning accuracy. They are especially valuable for industries where every movement must be controlled with exceptional precision.
SEA MOTION continues to provide professional frameless torque motor solutions for customers seeking advanced motion performance. Whether developing robotics, automation equipment, or precision machinery, choosing the right motor technology can significantly improve system capability and competitiveness.
If you are looking for a reliable frameless torque motor solution tailored to your application requirements, please contact us today. SEA MOTION is ready to provide professional support and help you build a more efficient motion control system.
-
