CANopen Integrated Servo Motor

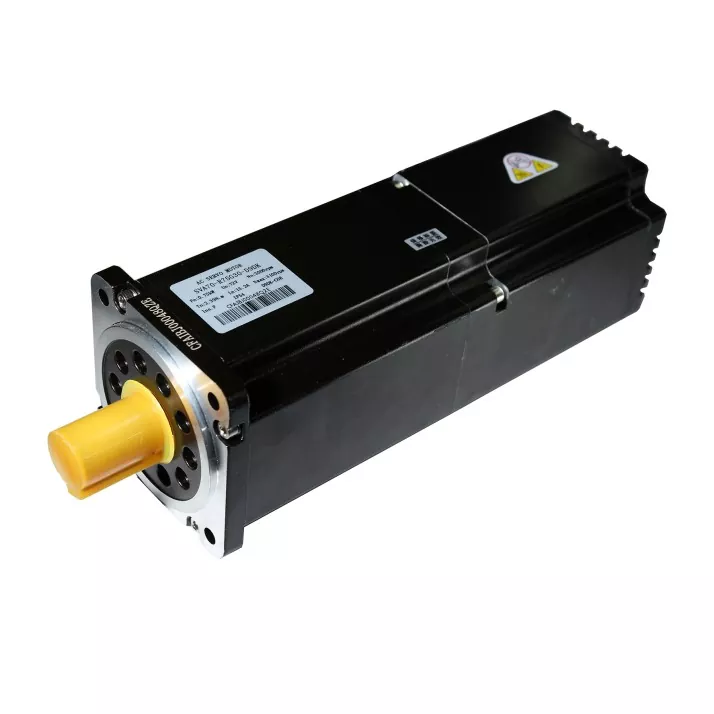

SEA MOTION ISM-3000 CANopen integrated servo motor

Integrated driver 130#-3000W48V2000-2100RPM, POSITAL 17-bit multi-turn (no battery, BISSS-C protocol), output spindle 22-55mm + 140A driver with interface board B1.0 + cooling fan

SEA MOTION ISM-3000 CANopen integrated servo motor is a high-end integrated motion control product independently developed based on mature SEA MOTION servo drive technology. It integrates military-grade 48V DC servo motor, self-developed SEA140A drive and world-renowned POSITAL 17-bit battery-free multi-turn BISS-C encoder, realizing highly integrated all-in-one design. Supporting CANopen and EtherCAT bus communication and featuring IP54 waterproof grade and built-in fan heat dissipation, the product boasts high precision, simple operation and strong customization. Abolishing tedious separate selection, installation and debugging procedures, it supports plug-and-play use. Relying on strict iterative testing, premium supply chain resources and standardized quality control systems, the product has passed long-term customer verification and achieved stable mass delivery, serving as a high-cost-performance choice for China-made integrated servo motor products.

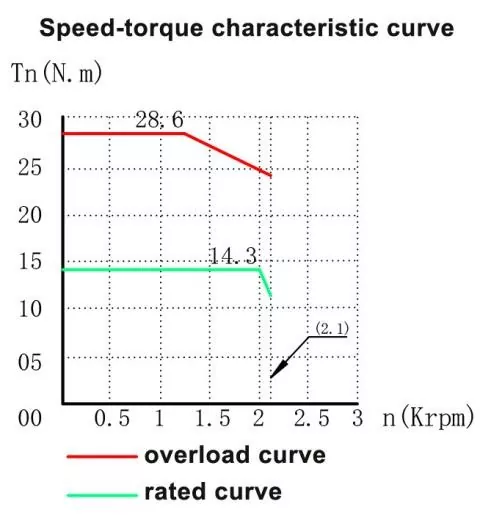

Product core technical parameters

Built-in fan cooling, 17-bit multi-turn feedback, no battery memory, BISS-C protocol

The SEA MOTION CANopen integrated servo motor features ultra-high integration and precise control, effectively simplifying customers’ equipment architecture, shortening project debugging cycles and reducing overall equipment costs. Equipped with high-precision POSITAL encoder and self-developed high-performance drive, it delivers excellent linearity and stable dynamic response, far exceeding traditional discrete servo products in adaptability and reliability.

With IP54 protection grade and optimized heat dissipation structure, it adapts to complex industrial working environments. Widely applicable in multiple fields, it is corely used in heavy-duty AGV equipment to ensure stable and efficient handling operation. It also perfectly matches numerical control welding equipment, LCD panel semiconductor production lines and various industrial automation devices, providing efficient, stable and customizable motion control support for diversified high-precision industrial automation scenarios.

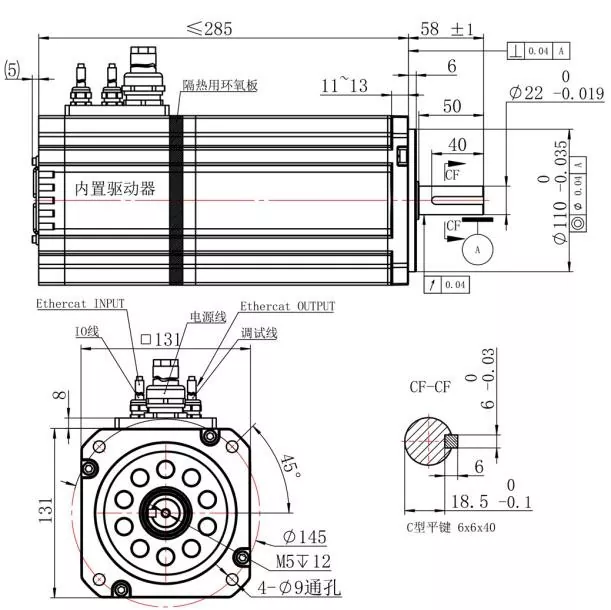

Production Details and size / mm

FAQ

Q1: What are the main benefits of using a CANopen integrated servo motor over discrete systems?

A: An integrated system combining the motor, drive, and encoder reduces electromagnetic interference (EMI), eliminates external motor-to-drive cabling, and saves valuable cabinet space. This simplifies installation, lowers overall equipment costs, and accelerates time-to-market.

Q2: Does the POSITAL 17-bit multi-turn absolute encoder require an external battery?

A: No. The ISM-3000 utilizes a true battery-free multi-turn memory system via the BiSS-C protocol. It tracks rotations mechanically, entirely eliminating maintenance downtime and risks associated with battery drainage in harsh production lines.

Q3: How does the built-in fan protect the integrated drive from overheating?

A: Since the 140A driver is integrated directly into the motor housing, SEA MOTION engineered an active thermodynamic structure with an optimized built-in cooling fan. This ensures continuous heat dissipation for both the electronic interface board and windings during mass production runs.

Q4: What fieldbus communication protocols does the ISM-3000 support?

A: It natively supports standard CANopen bus communication and features excellent compatibility with EtherCAT networks. This ensures seamless integration with mainstream PLCs, motion controllers, and CNC systems.

Q5: Can SEA MOTION customize the mechanical output spindle?

A: Yes. As a professional factory, we support hardware customization. The output spindle can be customized between 22mm and 55mm to match your heavy-duty AGV wheels or specific gearboxes.

Q6: How do you ensure product quality and reliable delivery for bulk orders?

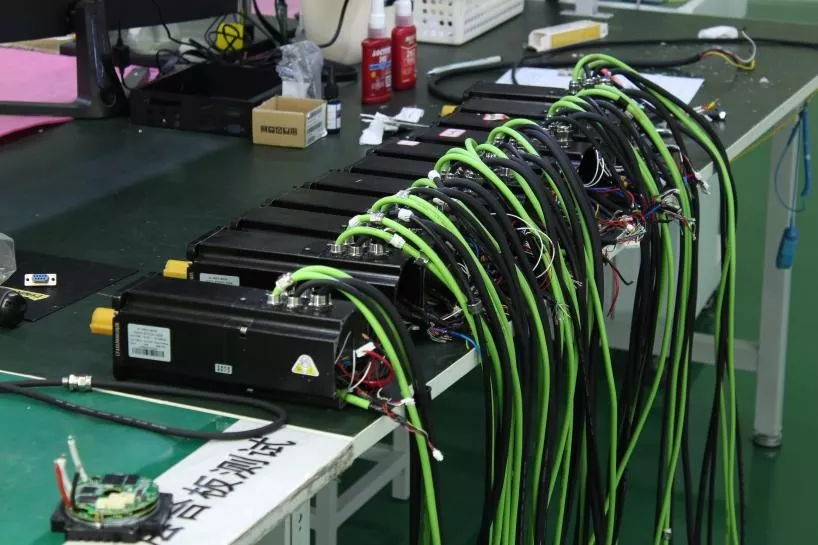

A: Every ISM-3000 unit undergoes iterative hardware testing, environmental stress screening, and rigorous load testing. Backed by stable premium supply chain resources and strict standardized quality control, our products have achieved reliable long-term mass delivery for Tier-1 industrial automation customers.

Request a Quote & Technical Support

Are you looking for a reliable CANopen integrated servo motor manufacturer for your next AGV or automation project? Contact our engineering team today to get 2D/3D CAD drawings, detailed interface specifications, and competitive wholesale pricing.
