Abstract: In modern industrial automation, accurate position feedback and stable communication are essential for improving equipment efficiency and safety. The ProfiBUS DP Heavy Duty Encoder developed by Jingyue is designed for harsh industrial environments where high precision, strong protection, and reliable data transmission are required. With advanced magnetic sensing technology, rugged housing, and ProfiBUS DP communication capability, this encoder provides a dependable solution for steel manufacturing, petrochemical, mining, power generation, and heavy machinery applications.
A ProfiBUS DP Heavy Duty Encoder is an industrial-grade absolute encoder designed to provide accurate position measurement and real-time feedback in demanding automation environments. Unlike conventional encoders used in standard machines, heavy-duty models are engineered to withstand vibration, dust, moisture, temperature fluctuations, and electromagnetic interference.

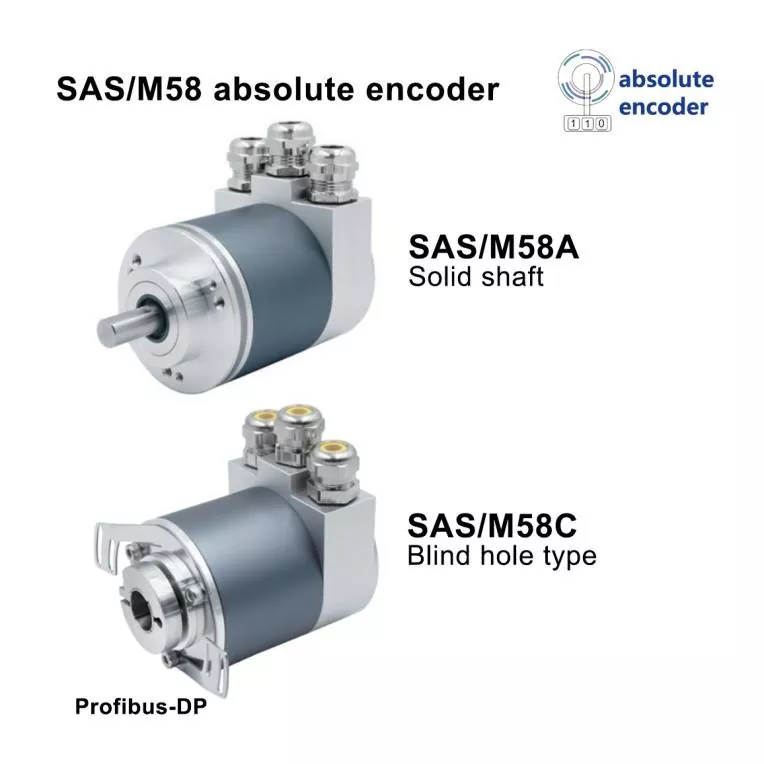

Jingyue's ProfiBUS DP Heavy Duty Encoder adopts a 58mm industrial structure with high-rigidity aluminum alloy or stainless steel housing. It integrates advanced magnetic induction technology and ProfiBUS DP bus communication to achieve stable position feedback for complex industrial control systems. The encoder supports both single-turn and multi-turn measurement modes, allowing industrial equipment to maintain accurate positioning even after power interruptions.
By using ProfiBUS DP industrial communication technology, the encoder enables fast and reliable data transmission between sensors, PLC systems, and automation controllers. This makes it suitable for applications requiring continuous operation, precise motion control, and high system reliability.
The performance of an industrial encoder directly affects the accuracy and stability of automation equipment. The ProfiBUS DP Heavy Duty Encoder provides multiple advantages that help manufacturers improve production reliability.
These features make the encoder a reliable feedback component for industrial automation systems that require long service life and consistent performance.
Understanding the technical specifications helps engineers select suitable encoder solutions according to equipment requirements. The following table summarizes the main parameters of the ProfiBUS DP Heavy Duty Encoder.
| Parameter | Specification |
|---|---|
| Product Type | 58mm ProfiBUS DP Heavy Duty Encoder |
| Housing Material | Aluminum alloy, stainless steel optional |
| Signal Output | ProfiBUS DP Bus Interface |
| Protocol Support | DPV0, DPV1, DPV2 Class 2 (EN50170 + EN50254) |
| Absolute Type | Single-turn / Multi-turn |
| Single Turn Resolution | 12bit, 13bit, 16bit options |
| Multi-turn Resolution | Up to 14bit |
| Power Supply | 10-30VDC |
| Transmission Rate | Up to 12Mbit |
| Maximum Speed | 6000rpm |
| Working Temperature | -30℃ to +85℃ |
| Protection Grade | IP65 / IP66 / IP68 options |
| Impact Resistance | 1000m/s², 6ms (100g) |
| Anti-vibration Performance | 20g |
Industrial automation systems require sensors that can maintain accuracy under continuous operation. A ProfiBUS DP Heavy Duty Encoder offers several advantages compared with ordinary feedback devices.
Heavy industrial equipment often operates in conditions involving vibration, dust, humidity, and temperature changes. The reinforced metal housing and high protection rating help prevent environmental damage and maintain stable measurement accuracy.
The ProfiBUS DP communication interface allows direct integration with industrial PLC systems. High-speed data exchange improves response time and supports precise motion control in automated production lines.
With durable mechanical construction and protective functions, the encoder reduces maintenance frequency and improves overall equipment availability. This is especially important for industries where unexpected downtime can create significant production losses.
Different machines require different installation structures. The encoder supports multiple flange designs, shaft dimensions from 6mm to 15mm, and various connector configurations, making system integration easier.
Due to its high durability and communication capability, the ProfiBUS DP Heavy Duty Encoder is widely used in industries that require accurate motion monitoring and reliable automation control.
Choosing the correct encoder requires consideration of mechanical structure, communication requirements, environmental conditions, and system compatibility.
| Selection Factor | Important Considerations |
|---|---|
| Working Environment | Consider dust, moisture, vibration, temperature, and chemical exposure. |
| Resolution Requirement | Select suitable single-turn and multi-turn resolution according to positioning accuracy. |
| Communication System | Confirm compatibility with PLC and industrial control networks. |
| Mechanical Installation | Choose proper flange type, shaft size, and cable outlet direction. |
| Protection Grade | Select IP protection level based on actual working conditions. |
Professional technical support can help customers avoid incorrect selection and ensure the encoder matches the complete automation system.
The main advantage is its ability to provide accurate position feedback while maintaining stable communication performance in harsh industrial environments. It combines high-resolution sensing technology with reliable ProfiBUS DP data transmission.
Yes. The ProfiBUS DP Heavy Duty Encoder is designed with a reinforced industrial structure and strong vibration resistance, making it suitable for heavy machinery and industrial production equipment.
Yes. It supports both single-turn and multi-turn absolute measurement modes, allowing users to select suitable feedback solutions according to application requirements.
It is widely used in steel manufacturing, petrochemical plants, mining equipment, power generation systems, heavy machinery, and automated production lines.
Customers should provide information about equipment type, PLC communication system, installation requirements, operating environment, and accuracy requirements. Technical specialists can recommend a suitable configuration.
A ProfiBUS DP Heavy Duty Encoder is an essential component for modern industrial automation systems that require accurate feedback, strong durability, and reliable communication. With advanced magnetic sensing technology, robust protection design, and flexible configuration options, it helps industries achieve safer and more efficient motion control. If you are looking for a professional encoder solution for demanding industrial applications, please contact us for technical consultation, customized solutions, and competitive manufacturing support.
