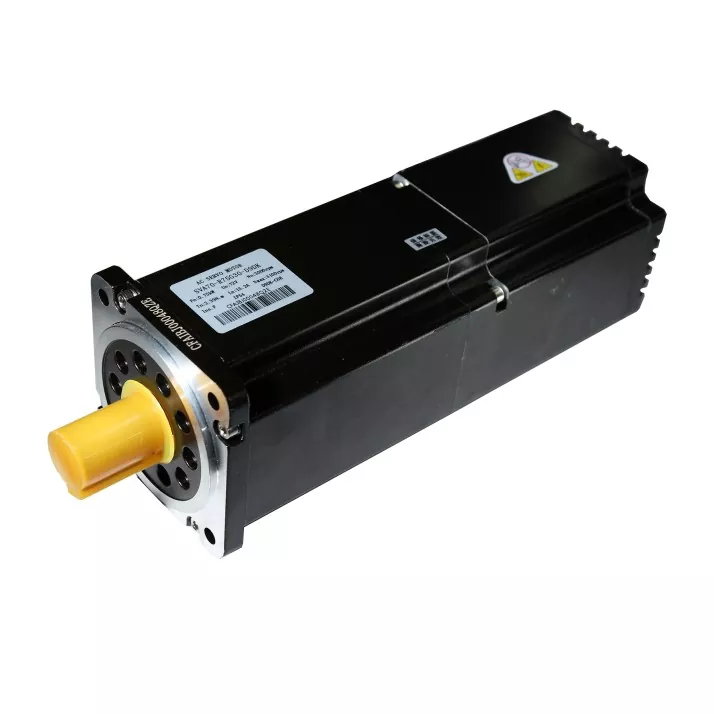

EtherCAT Integrated Servo Motor

SEA MOTION ISM-3000

Integrated driver 130#-3000W48V2000-2100RPM, POSITAL 17-bit multi-turn (no battery, BISSS-C protocol), output spindle 22-55mm + 140A driver with interface board B1.0 + cooling fan

SEA MOTION ISM-3000 EtherCAT integrated servo motor is a cutting-edge all-in-one motion control product developed based on the brand’s mature high-end servo drive technology, tailored for complex industrial automation scenarios and has achieved stable mass delivery. The product adopts military-grade 48V DC servo motor, self-developed SEA140A drive and world-class POSITAL 17-bit battery-free BISS-C multi-turn encoder, integrating core components perfectly to realize ultra-high integration. Supporting high-speed EtherCAT bus communication, it features IP54 waterproof and dustproof grade and built-in cooling fan, ensuring stable continuous operation in harsh industrial environments.

As a high-quality Chinese EtherCAT integrated servo motor manufacturer, SEA MOTION relies on premium supply chain resources and professional R&D teams to optimize product performance iteratively. Different from traditional discrete servo systems, this integrated servo motor supports plug-and-play installation, eliminating complicated separate selection, wiring and debugging processes. All products undergo long-term customer field verification and strict factory testing, with standardized quality control procedures to guarantee consistent product quality, greatly improving equipment deployment efficiency and reducing overall operating costs for customers.

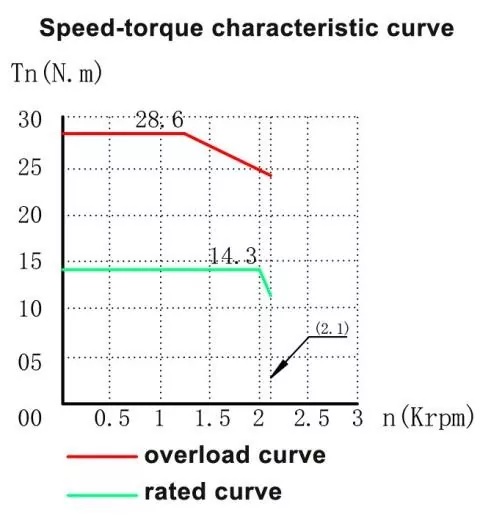

Product Parameter

Built-in fan cooling, 17-bit multi-turn feedback, no battery memory, BISS-C protocol

The SEA MOTION ISM-3000 EtherCAT integrated servo motor boasts outstanding core advantages including high control accuracy, compact integrated structure, simple operation and strong customized adaptability. Equipped with high-precision POSITAL encoder and self-developed high-performance drive, it delivers precise positioning, fast response and excellent operational stability, perfectly adapting to high-precision and high-load industrial working conditions. Its built-in fan heat dissipation system effectively solves heat accumulation during long-term high-power operation, while IP54 protection grade enhances environmental adaptability.

Widely applied in multiple core industries, it is the preferred motion control unit for heavy-duty AGV equipment, providing stable power output for heavy-load handling and intelligent logistics operation. It also serves numerical control welding equipment to ensure accurate welding trajectory control, and supports stable operation of semiconductor and liquid crystal panel production lines. In addition, it is widely compatible with various standard industrial automation equipment, helping enterprises simplify system architecture, shorten debugging cycles and realize efficient and intelligent equipment upgrading.

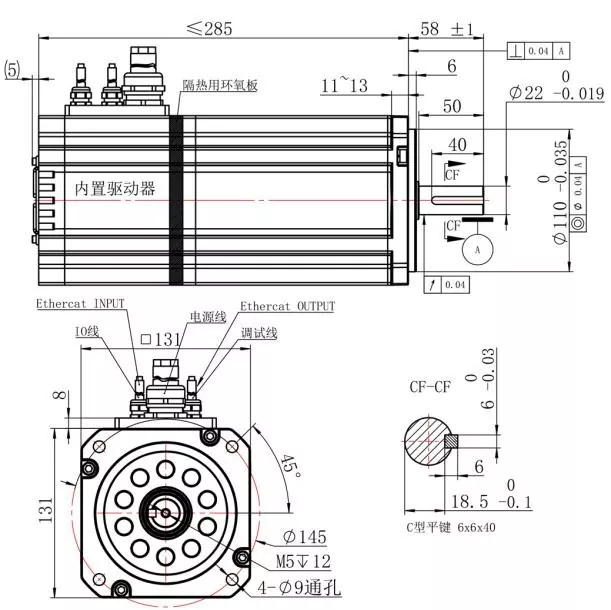

Production Details and size / mm

Frequently Asked Questions

Q1: Why choose an EtherCAT integrated servo motor over a standard pulse/direction or CANopen system?

A: EtherCAT operates on a high-speed industrial Ethernet protocol, making it ideal for systems requiring complex multi-axis control, distributed topologies, and huge data throughput. Unlike traditional setups, it handles hundreds of axes simultaneously with sub-microsecond synchronization, while reducing wiring layout to simple RJ45 network cables.

Q2: How does the battery-free absolute encoder on the ISM-3000 lower long-term operating costs?

A: Standard multi-turn encoders rely on lithium batteries to preserve absolute positions when powered down, leading to regular maintenance shutdowns. The ISM-3000 features a premium Germany POSITAL 17-bit mechanical multi-turn encoder. It tracks position permanently without any battery, fully preventing downtime caused by unexpected battery drainage.

Q3: Is the active cooling fan reliable enough for continuous, enclosed industrial operations?

A: Yes. Because the 140A high-power driver and B1.0 interface board are housed alongside the motor, heat dissipation is critical. SEA MOTION designed an advanced active thermodynamic housing with a built-in heavy-duty fan, ensuring the electronics stay well within safe limits during continuous full-load mass production.

Q4: Can we request custom shaft/spindle modifications to fit our heavy-duty AGV wheels?

A: Absolutely. As an OEM/ODM capable Chinese manufacturer, we support deep hardware customization. We can adjust the output spindle diameter anywhere between 22mm and 55mm, and customize the B1.0 interface board terminations to match your exact mechanical layout.

Q5: How does SEA MOTION guarantee quality consistency for mass production delivery?

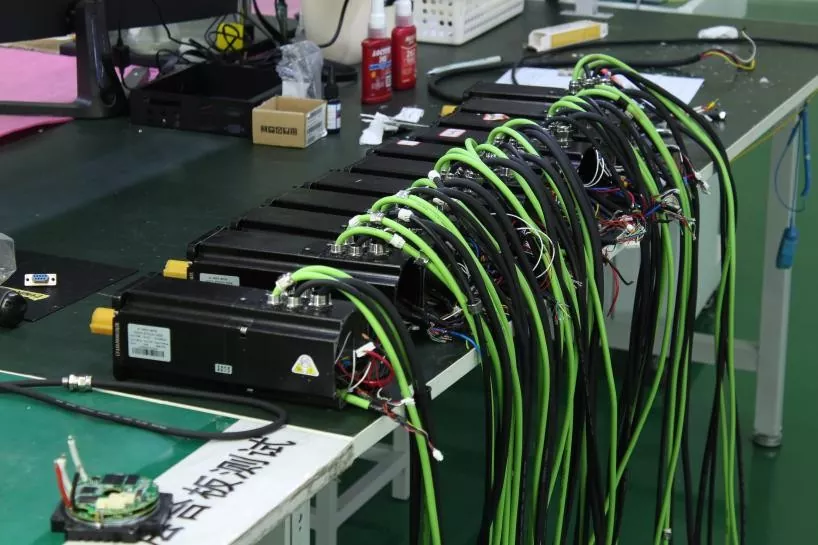

A: Every single ISM-3000 unit must pass standard factory inspections, including full-load dynamic testing, iterative software debugging, and strict environmental stress screenings. We build our products using a highly standardized QC system and premium supply chains to guarantee consistent, reliable batch deliveries for global Tier-1 system integrators.

Get Direct Factory Wholesale Pricing Now

Looking for a high-performance EtherCAT integrated servo motor manufacturer to optimize your equipment architecture and shorten your project debugging cycles? Contact SEA MOTION's application engineers today for official quotes, 2D/3D CAD models, and technical integration guides.
