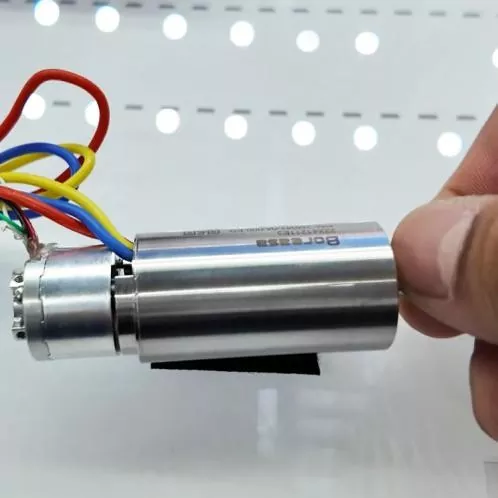

The EC-Micro series of Absolute multi turn photoelectric encoder features extremely small installation dimensions. Available in outer diameters from 8mm to 26mm, with a hollow structure, 17-bit capability, a maximum speed of 20,000 RPM, and customization options are supported.The EC-Micro series of miniature absolute multi-turn photoelectric encoders addresses the need for high-precision positioning in products such as coreless motors, dexterous hands, and ZR modules, where limited internal installation space prevents their application. Furthermore, due to the characteristics of optical encoders, they offer stronger anti-interference capabilities compared to magnetic encoders.
The EC-Micro series of Absolute multi turn photoelectric encoders is an absolute multi-turn optical encoder used in coreless motors, dexterous hands, ZR modules, and space-constrained installations.
The EC-Micro series of miniature absolute multi-turn photoelectric encoders is a product with significant market potential in the JINGYUE MOTION CONTROL supply chain. Its compact size allows it to meet the needs of coreless motors with an outer diameter of 8mm-26mm, and it can also be used in miniature DC servo motors or ZR modules.

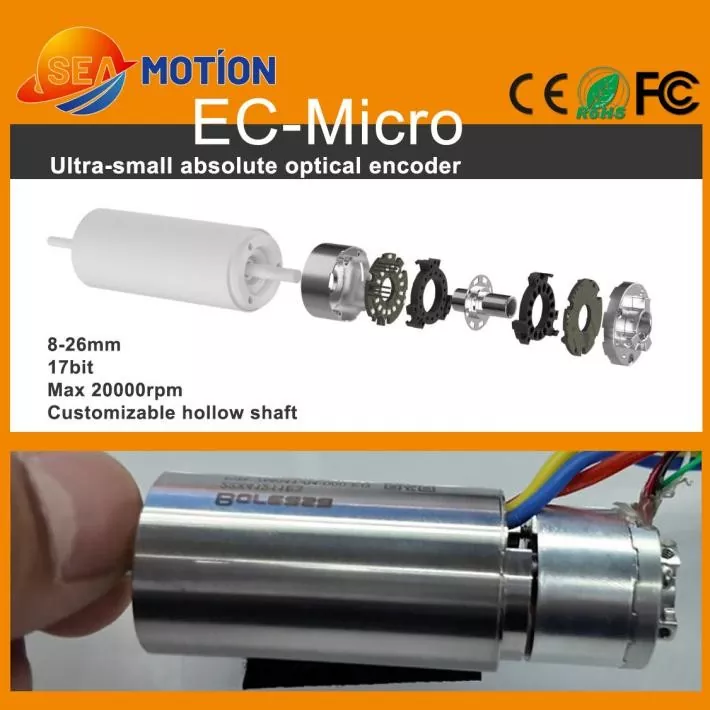

The EC-Micro series miniature absolute multi-turn photoelectric encoder features an outer diameter of 8mm-26mm, a hollow structure (customization supported), 17-bit resolution, and a maximum speed of 20,000rpm.
|
Parameter |
Specification |
|
Resolution |
17bit |
|
Output Interface |
RS485 |
|
Baud Rate |
2.5Mbps |
|
Cumulative Error |
±80" |
|
Continuous Error |
±5" |
|
Repeatability |
12bit |
|
Multi-turn Range |
24bit@Resolution 17bit;16bit@Resolution 23bit |
|
Parameter |
Specification |
|
Housing |
Aluminum |
|

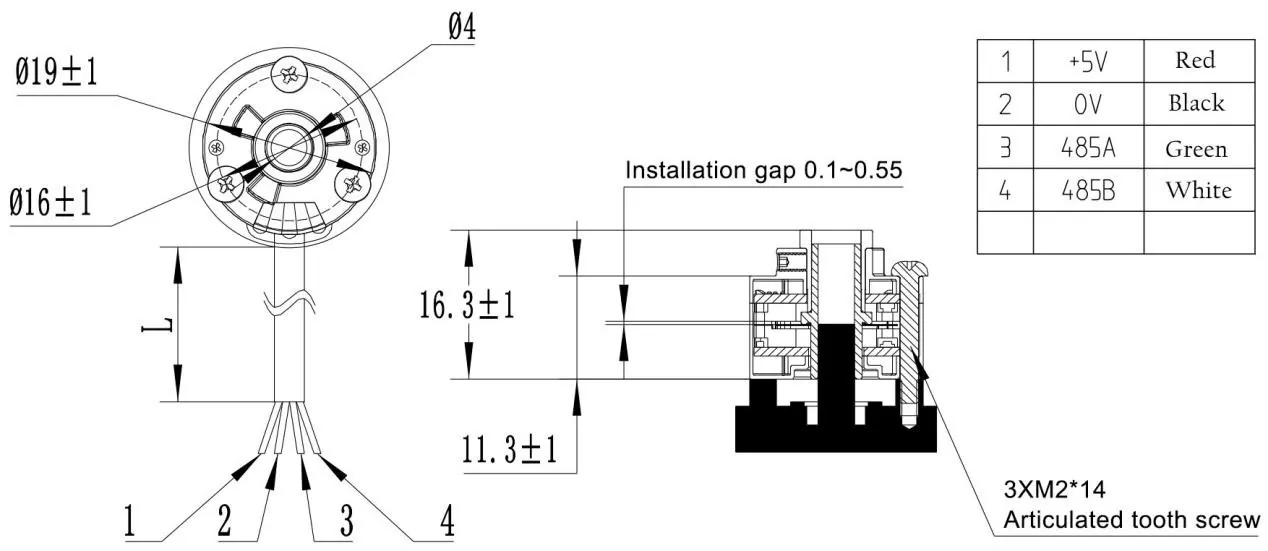

Dimensions |
ø19mm,H=14.5mm / Customizable |
|
Mounting Screws |
M2 |
|
Motor Shaft Diameter |
4-6mm |
|
Code Disk |
Stainless Steel |
|
Allowable Shaft Displacement |
Radial ±0.1mm;Axial ±0.1mm |
|
Angular Acceleration |
Maximum: 80000rpm |
|
Maximum Allowable Speed |
20000rpm |
|
Protection Class |
IP40(After Installation) |
|
Parameter |
Specification |
|
Input Voltage |
DC5V±5% |
|
Electrical Connection |
5pin PCB Soldering Interface |
|
Operating Current |
≤150mA(No Load) |
|
Overheating Detection Accuracy |
±3℃ |
|
Output Level Rise/Fall Time |
≤100ns |
|
Electrical Life |
24000h (MTBF 85℃) |
|
Parameter |
Specification |
|
Temperature |
Operating Temperature: -20℃to85℃; Storage Temperature: -40℃to105℃ |
|
Humidity |
10%-90% (No Condensation) |
|
Applicable Altitude |
≤2000m |
|
Storage Time |
45days |
|
Product Certifications |
CE,RoHS,FCC |
|
Warranty |
1year |
The EC-Micro series miniature Absolute multi turn photoelectric encoder features 17-bit resolution, RS485 communication, and customizable absolute multi-turn hollow core.
Applications include:
1. Coreless motors;
2. Dexterous hands;
3. ZR modules;
