High-precision magnetic induction technology, single-turn or multi-turn encoders;
PROFINET I/O bus maximum speed 100Mbit;
Single-turn resolution up to 18 bits, multi-turn resolution up to 14 bits;
Superior resistance to magnetic field interference, LED status display;
Features reverse short-circuit and short-circuit protection,reducing the impact of installation errors.
This 58mm ProfiNET IO heavy duty encoder adopts ProfiNET IO industrial Ethernet output, realizing high-efficiency real-time data transmission, flexible network topology and convenient equipment networking and expansion, which is suitable for intelligent and modular industrial automation systems. The absolute multi-turn magnetic encoding technology ensures non-volatile storage of position data, no power-down zero drift, and continuous and stable signal output. The high-strength all-metal housing and IP65-IP68 dustproof, waterproof and anti-corrosion structure fully adapt to extreme harsh environments such as high temperature, high humidity, strong vibration and chemical corrosion in heavy industry. It supports dual synchronous output of single/multi-turn data and multi-resolution switching, meeting diversified high-stability industrial measurement needs. The advanced redundant function improves equipment fault self-recovery ability and operational reliability. Various industrial-standard installation methods ensure standardized on-site deployment, and multiple authoritative certifications guarantee long-term stable operation in heavy industrial scenarios.
|

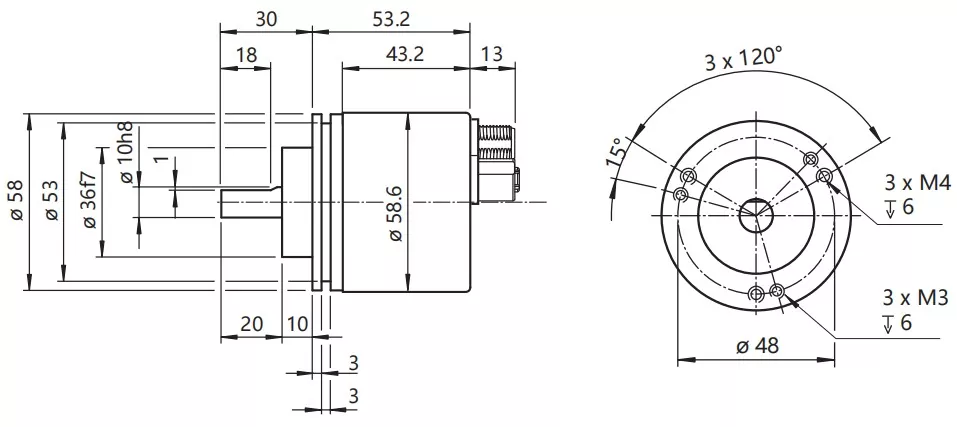

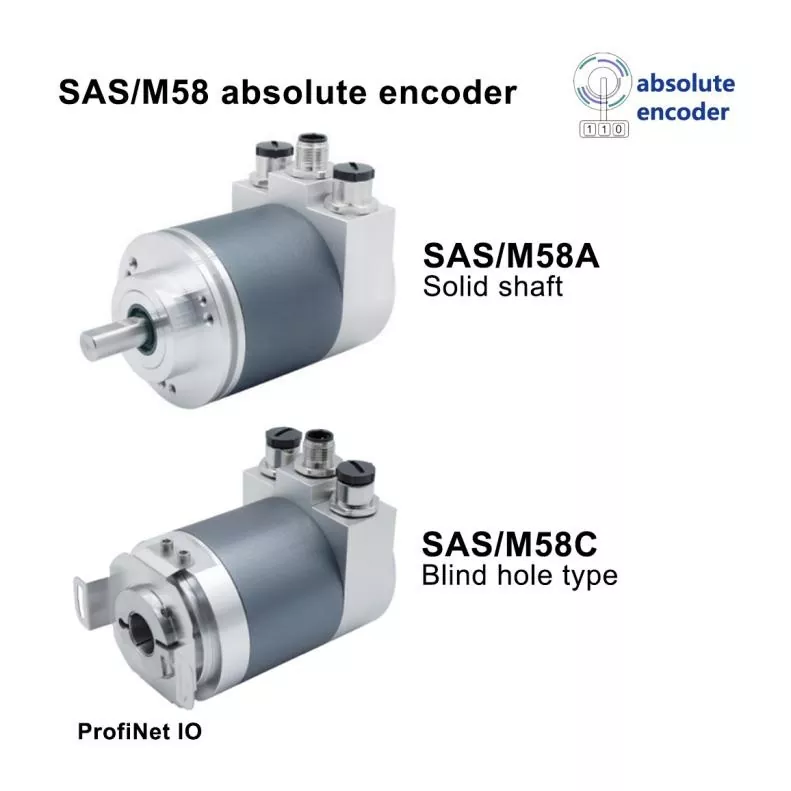

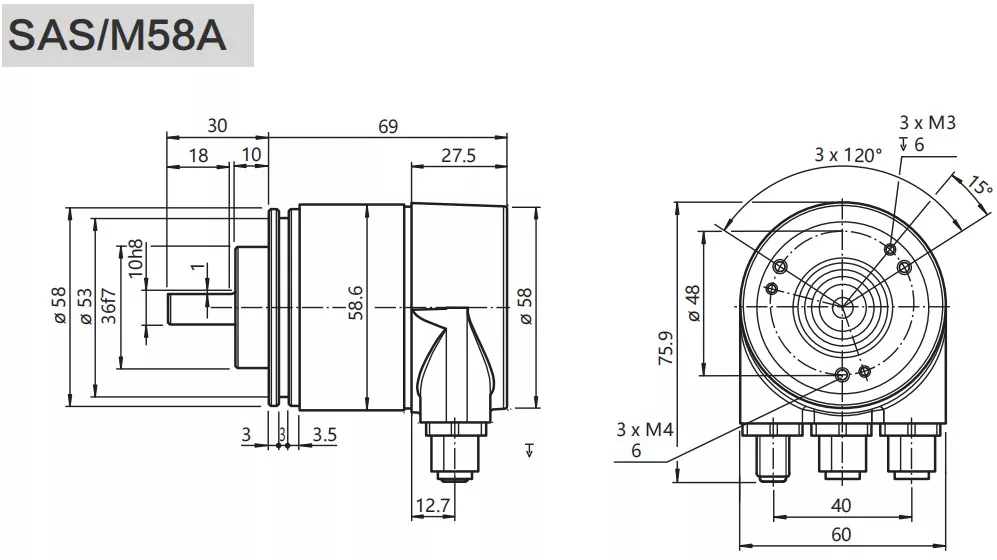

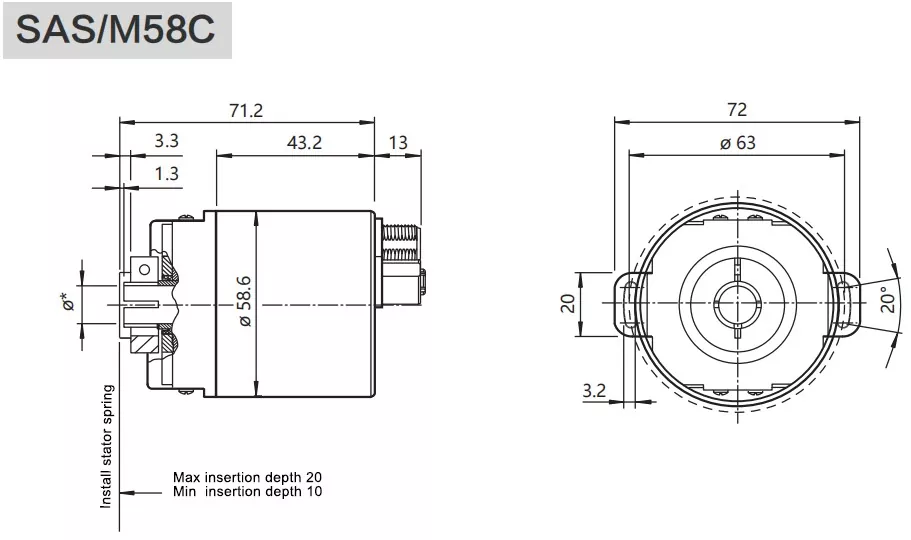

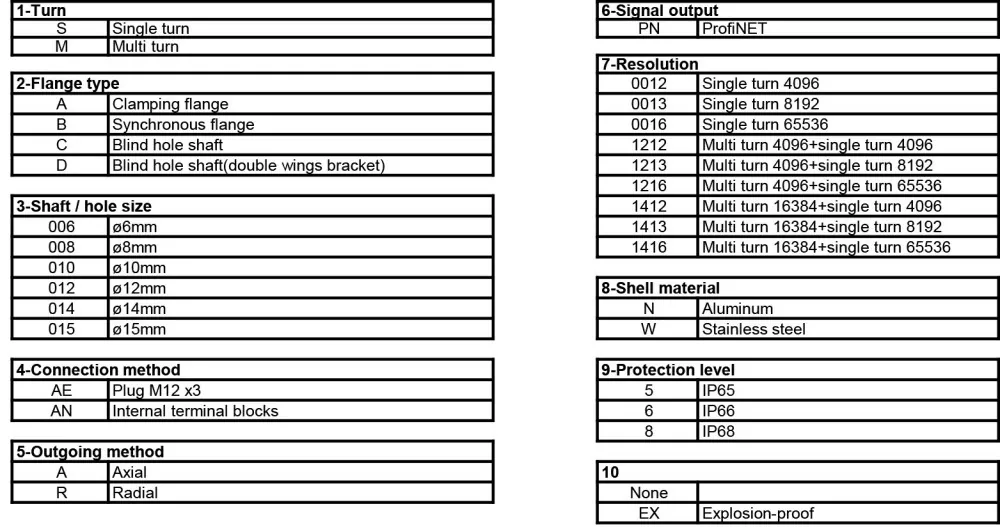

Model No. |
SAS/M58A / SAS/M58C |
|

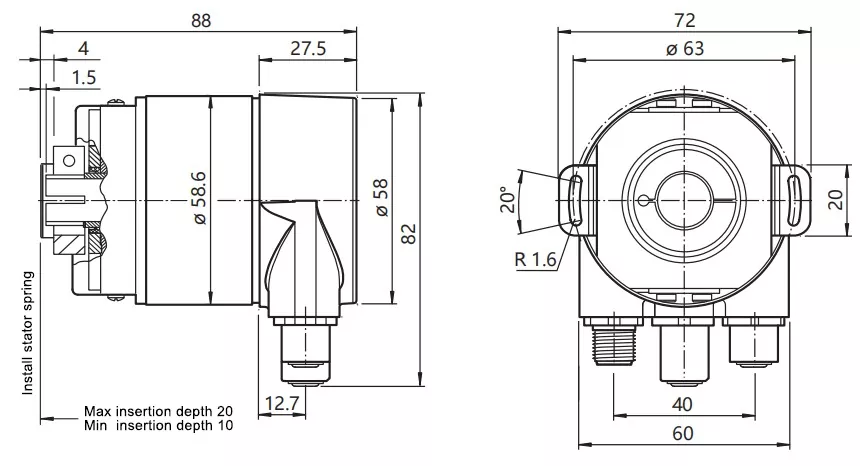

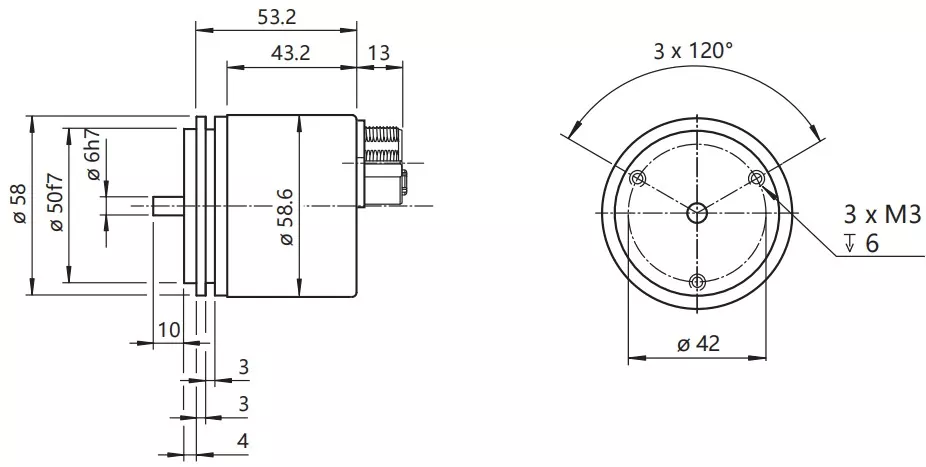

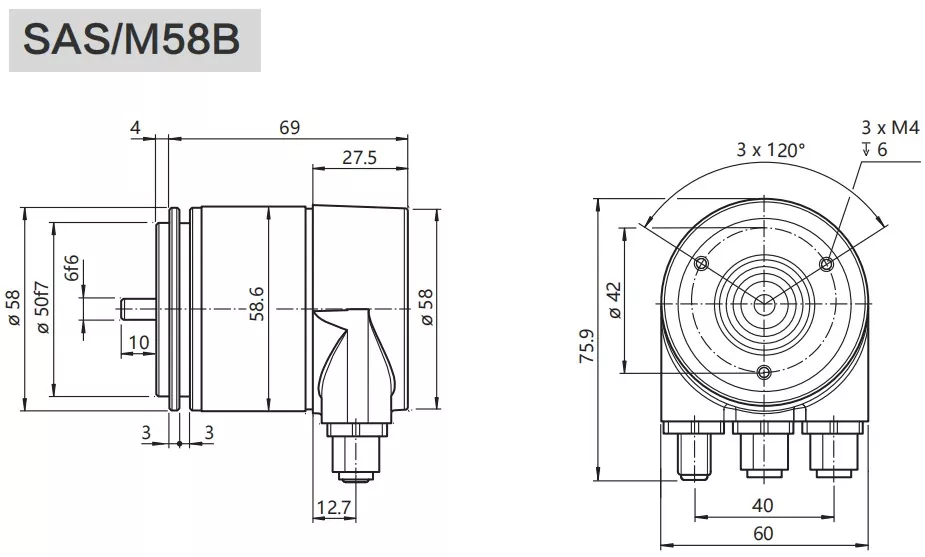

Flange |
ø58mm Solid shaft / ø58mm blind hole |
|
Spindle size |
ø6,8,10,12,15mm customizable |
|
Shell material |
Aluminum (stainless steel optional) |
|
Signal output interface |
PROFINET I/O |
|
Protocal |
Profidrive Profile 4.x, Encoder Profile 4.0, 4.1, 4.2 |
|
Output driver |
Ethernet |
|
Absolute type |
Single turn / multi turn |
|
Power voltage |
10~30VDC |
|
Single turn resolution |
Standard 12bit 4096,13bit 8192, 16bit 65536, 18bit 2677216 |
|
Turns |
1(single turn),multi-turn standard 12bit 4096,multi-turn max 14bit 16384 |
|
Power consumption |
≤3W |
|
Start time |
<15s |
|
Interface cycle time |
≥125μs |
|
Programming function |
Resolution, time base and speed, preset values, counting direction, IP address |
|
Transmission rate |
100Mbit |
|
Diagnosis |
Optoelectronic ASIC, memory, LED |
|
Encoding |
Binary code |
|
Reverse polarity protection |
Yes |
|
Short circuit protection |
Yes |
|
Lightning and static electricity protection |
Yes |
|
Max speed |
6000rpm |
|
Spindle load |
Radial 200N, Axial 100N |
|
Protection |
IP65,IP66 |
|
Starting torque |
<0.05Nm |
|
Working temperature |
-30℃~+85℃(-40℃~85℃ optional) |
|
Storage temperature |
-40℃~+100℃ |
|
Impact resistance |
1000m/s2,6ms(100g) |
|
Anti-vibration |
20g |
|

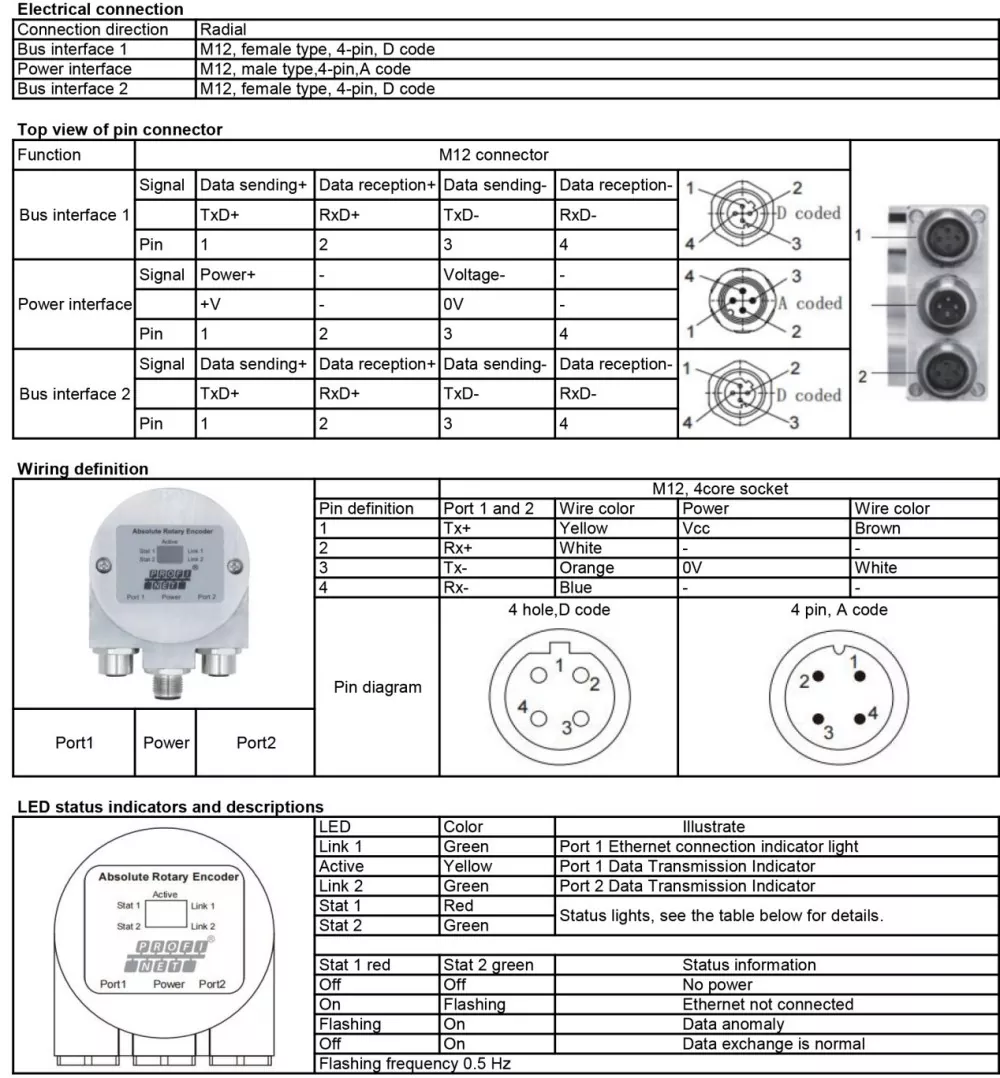

Connection method |
3xM12 connector |
|
Outgoing method |
Radial side outlet,Axial rear outlet |
This ProfiNET IO intelligent heavy duty encoder is mainly applicable to intelligent and networked heavy industrial automation scenarios. It is widely used in intelligent upgrading production lines of steel manufacturing and metallurgical processing, realizing networked and intelligent monitoring of production equipment. It serves intelligent production equipment in oil fields, petrochemical plants and refineries, supporting real-time data interaction and remote intelligent control of equipment. In addition, it is suitable for intelligent mining machinery, large hoisting intelligent equipment, power plant intelligent power generation systems and automated papermaking intelligent production lines, providing high-reliability real-time data transmission and intelligent control support for modern intelligent heavy industry.
