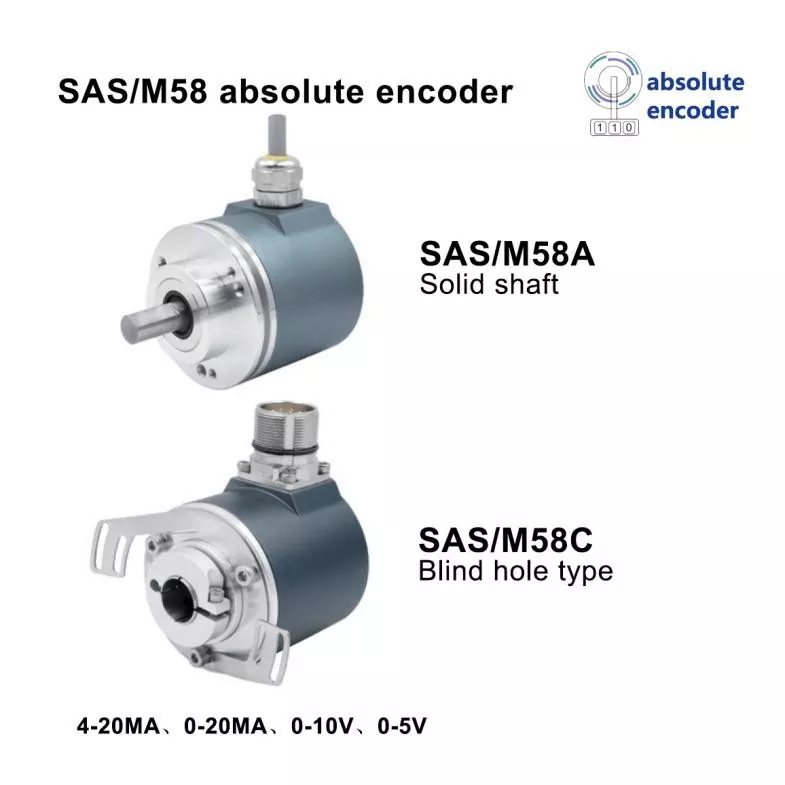

Analog Heavy Duty Encoder

High-precision magnetic induction technology; Single-turn or multi-turn encoder;

Analog current output 4-20mA, 0-20mA or voltage output 0-10V, 0-5V;

Incremental signal TTL or HTL can be added;

Single-turn resolution up to 16 bits, multi-turn resolution up to 14 bits; Superior shock and vibration resistance;

Reverse short-circuit and short-circuit protection, reducing the impact of installation errors.

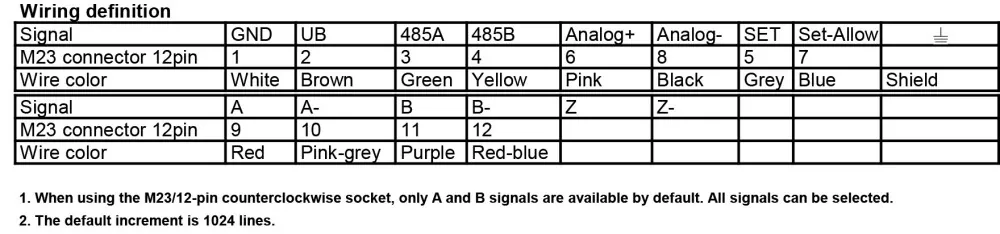

Parameter

First, the analog output design enables seamless and linear signal transmission, which is perfectly compatible with conventional industrial analog control systems, realizing real-time and continuous position monitoring without signal discontinuity. Second, the high-grade aluminum alloy and stainless steel housing structure endows the encoder with excellent anti-corrosion, anti-shock and anti-vibration capabilities, adapting to high-dust, high-humidity and corrosive heavy industrial environments. Third, the IP65-IP68 high protection grade effectively prevents dust, water and oil pollution, ensuring long-term stable operation in harsh working scenarios. Fourth, it supports dual output of single-turn and multi-turn data with adjustable resolution from 12bit to 16bit, meeting diverse low-precision but high-stability measurement demands. In addition, multiple flange structures, shaft sizes and cable outlet methods realize flexible on-site installation and adaptation. The product is equipped with reliable redundant functions, greatly improving operational safety, and has passed authoritative industrial certifications, with stable quality and excellent environmental adaptability.

Waveform graph

This 58mm outer diameter heavy duty absolute multi-turn magnetic encoder is widely used in heavy industrial scenarios that require continuous position signal feedback and high operational reliability. It is mainly applied in steel manufacturing for rolling mill position adjustment and steel coil transmission control, in papermaking industry for roller position synchronization and tension control. It also serves core equipment in metallurgical processing, petrochemical and oil refinery production lines, providing stable position feedback for production and processing equipment. In addition, it is suitable for lifting and hoisting equipment in mining and hoisting industries, as well as conventional power generation equipment in power plants, ensuring the stable operation of mechanical transmission and position adjustment links under harsh working conditions.

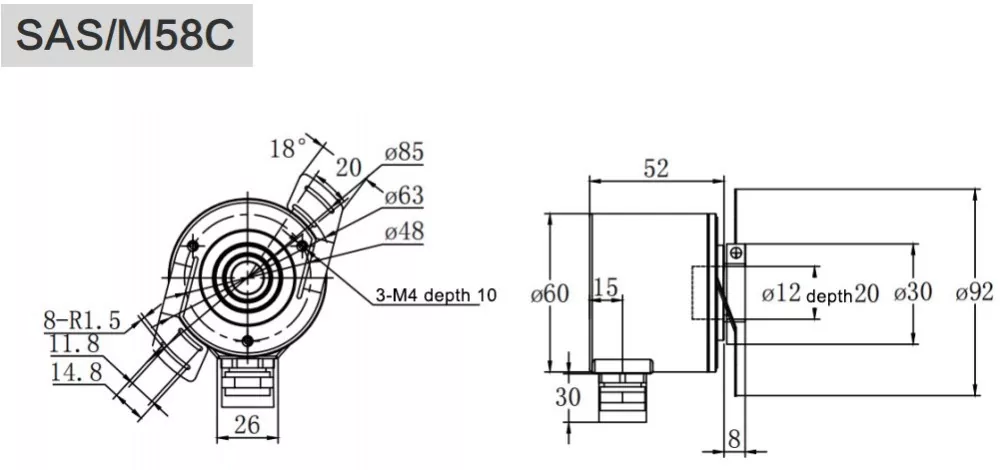

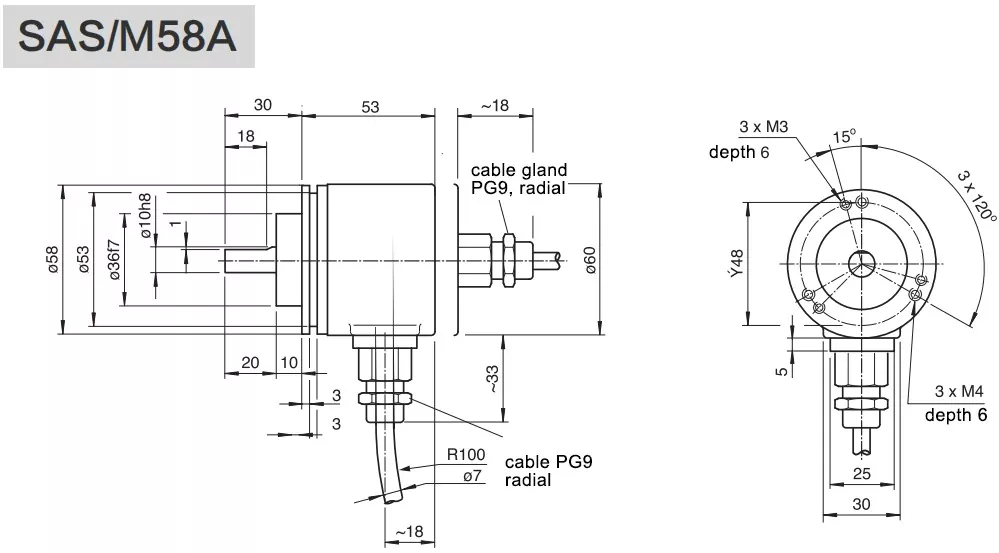

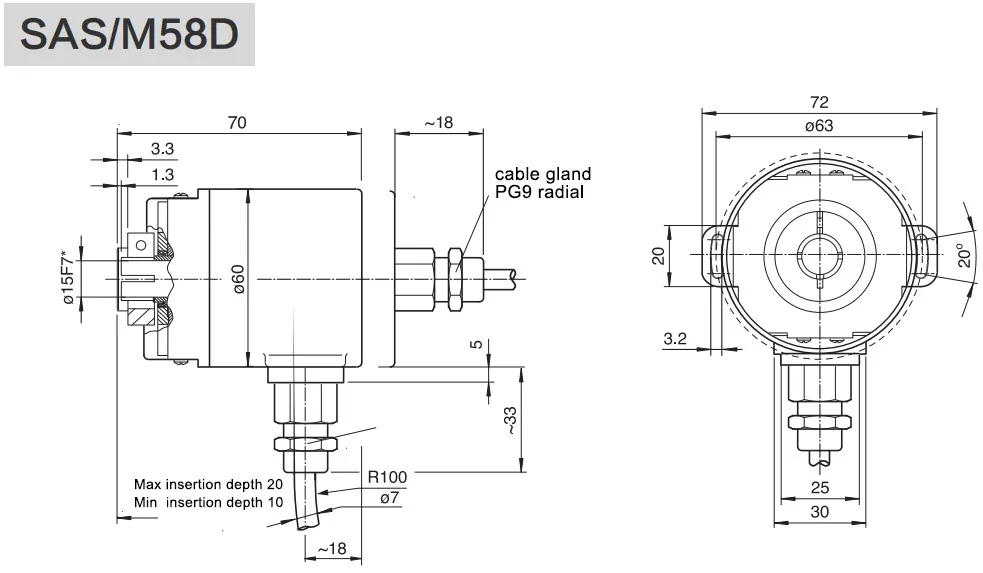

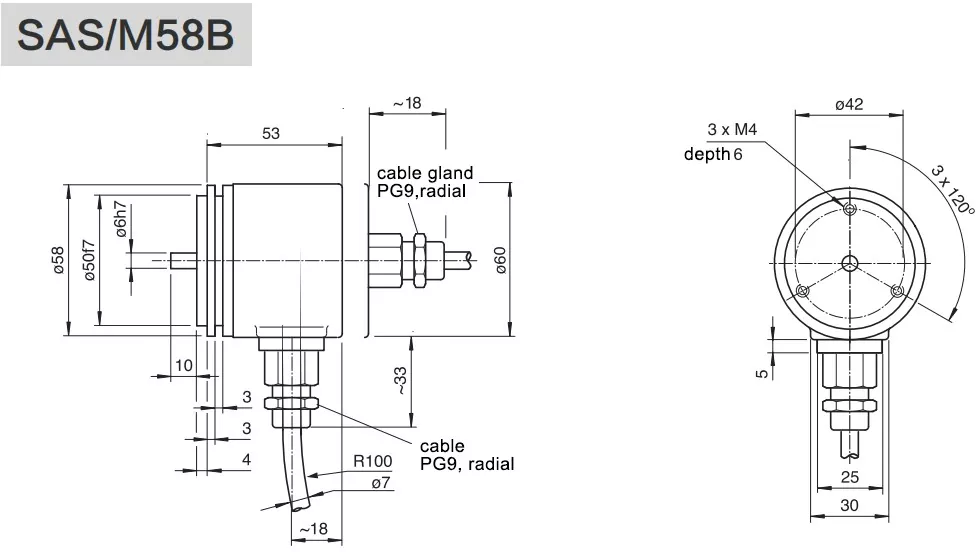

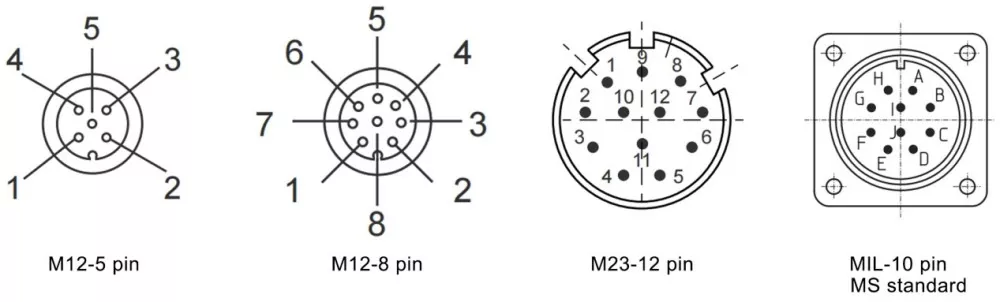

Installation dimensions

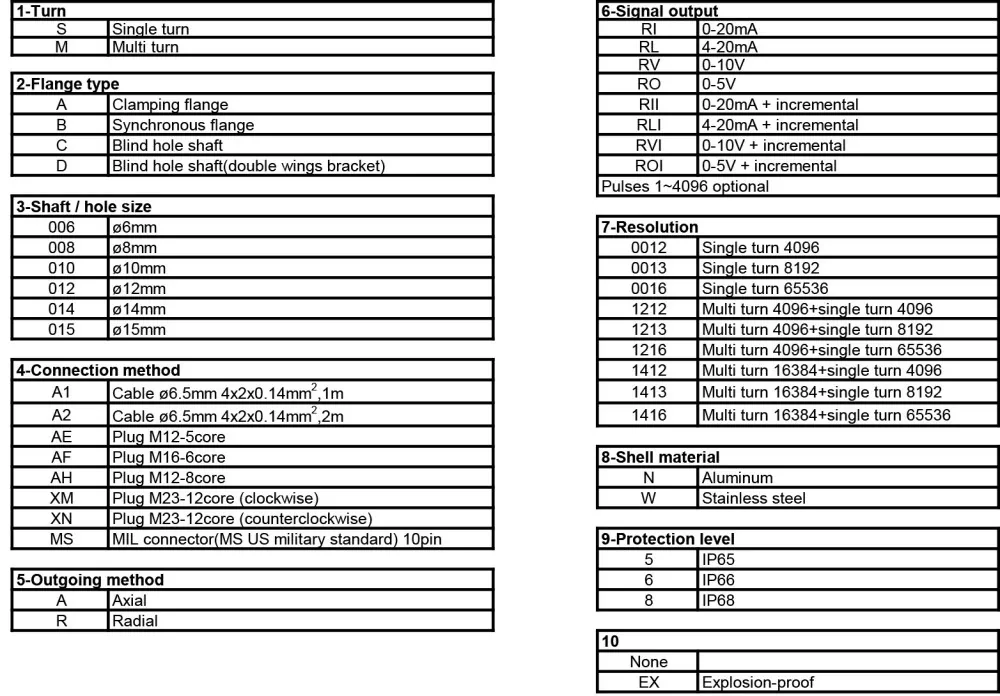

Selection

FAQ

Q1: Are you a factory or a trading company?

A: We are a professional original manufacturer & source factory specializing in heavy duty encoders. We have independent R&D, machining, testing and production workshops, providing direct factory supply without middlemen.

Q2: What is your MOQ (Minimum Order Quantity)?

A: We support 1 piece minimum order. Both sample orders, small-batch trial orders and large-scale bulk orders are acceptable.

Q3: What production equipment do you have to guarantee product quality?

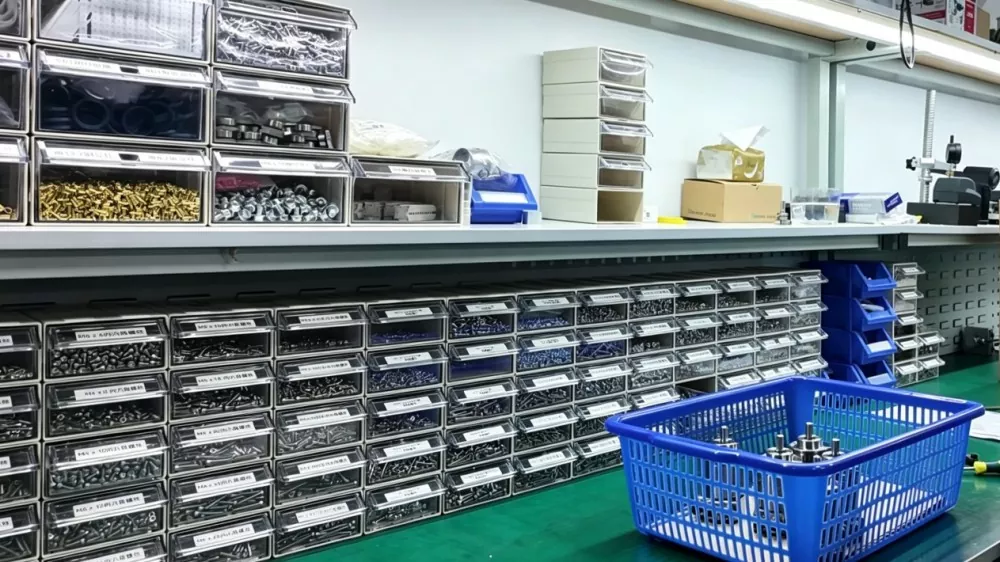

A: We own a self-operated machining workshop equipped with 3 sets of five-axis machining centers. All mechanical structural parts are independently processed and controlled, ensuring high precision, consistency and stability of encoder dimensions.
