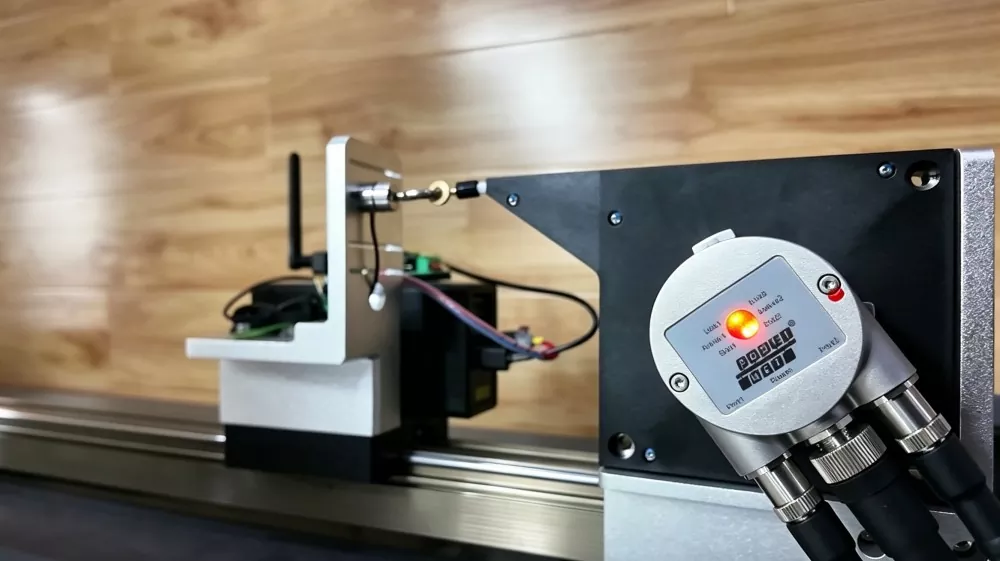

High-precision magnetic induction technology, single-turn or multi-turn encoder;
CANopen bus, up to 1MHz Baud; Incremental signal can be added TTL or HTL output;
Single-turn resolution up to 21 bits, multi-turn resolution up to 14 bits;
Superior shock and vibration resistance, high protection rating: up to IP68;
Features reverse short-circuit and short-circuit protection, reducing the impact of installation errors .

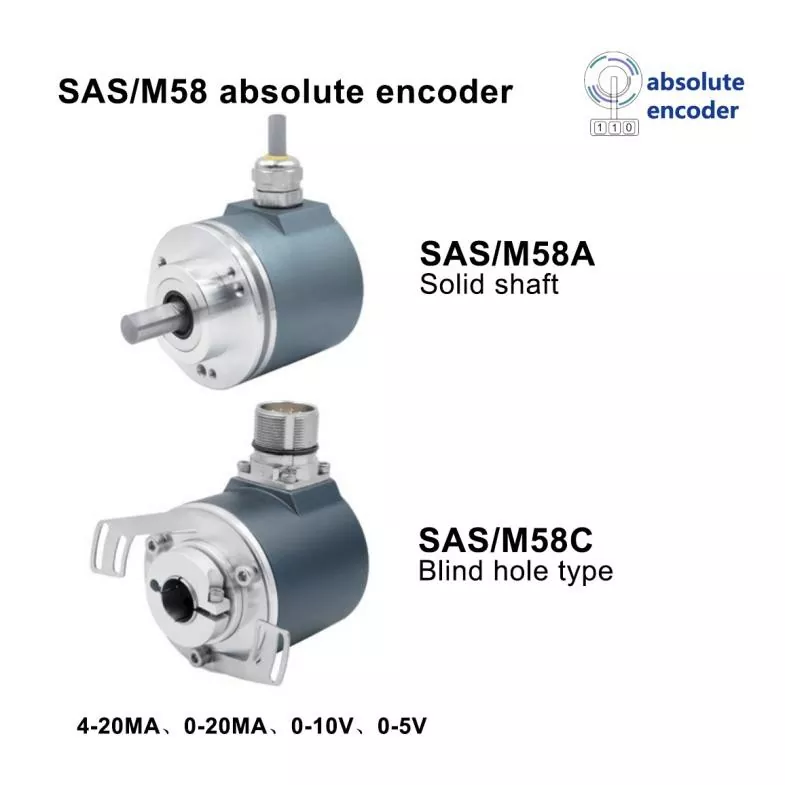

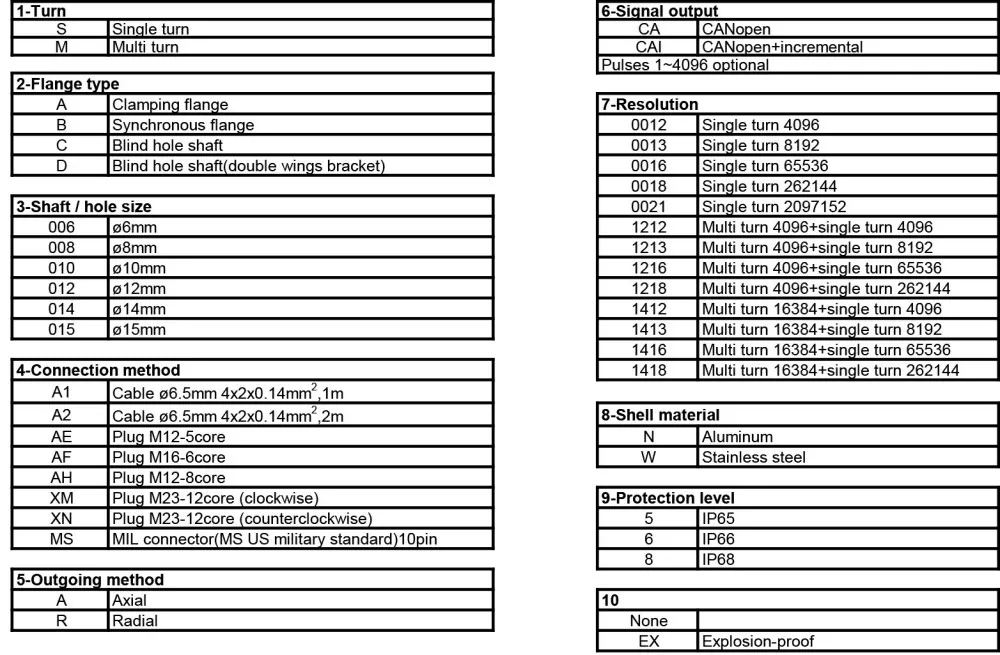

| Model No. | SAS/M58A / SAS/M58C |

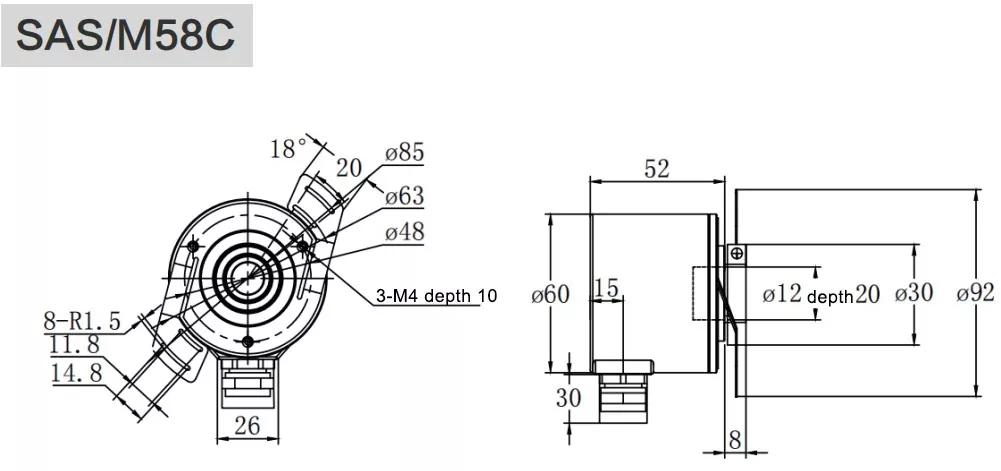

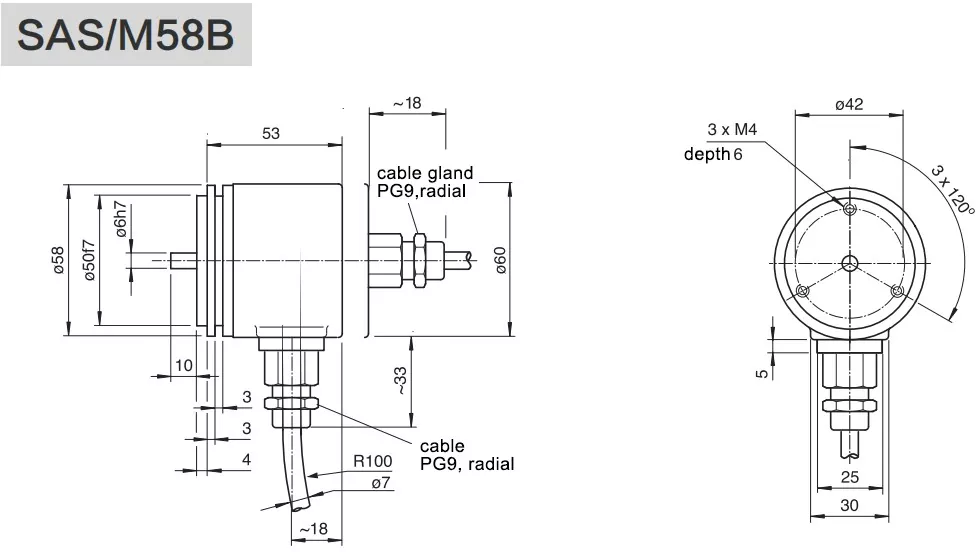

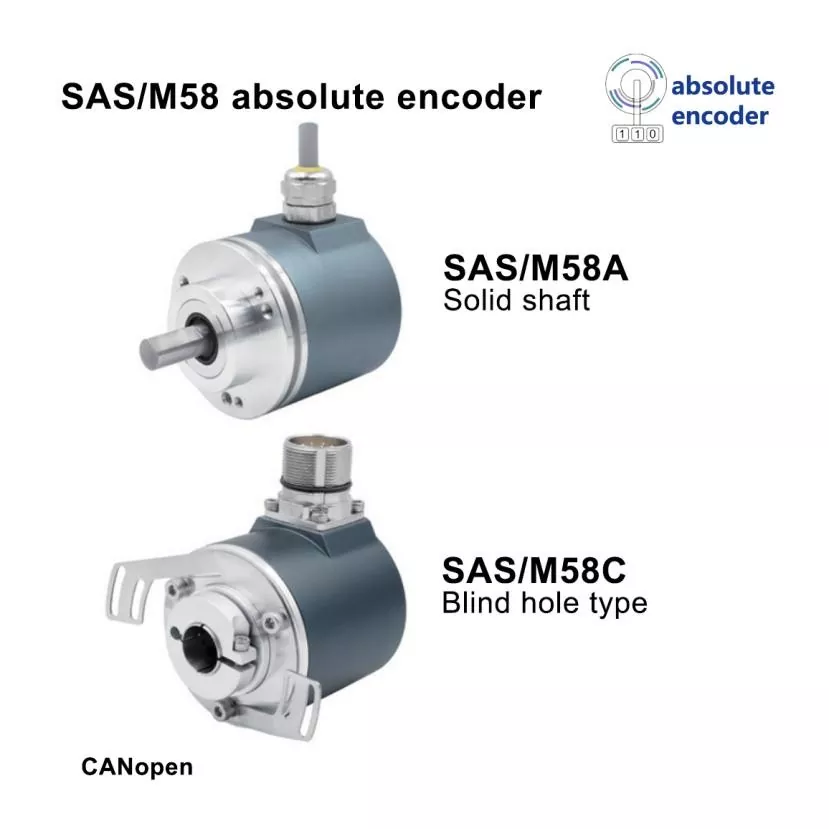

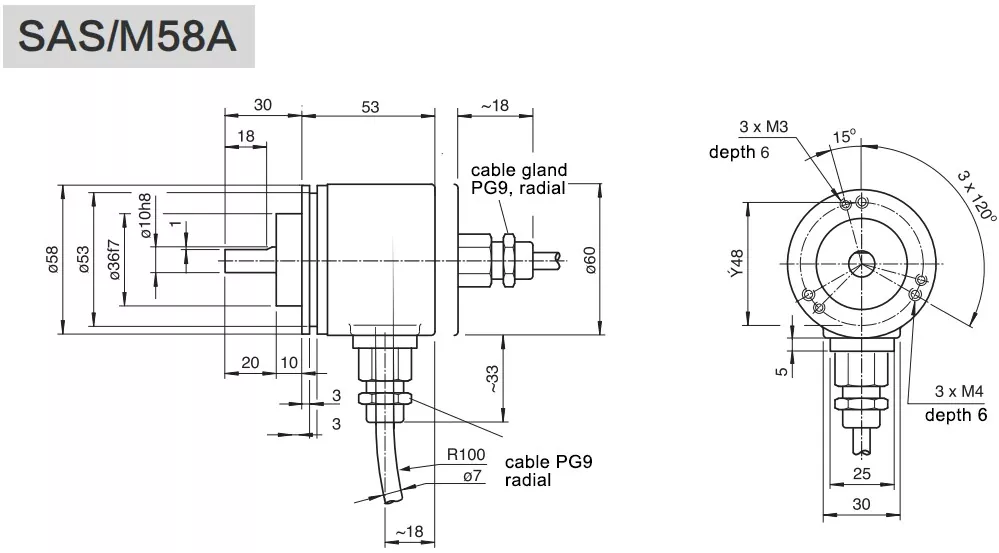

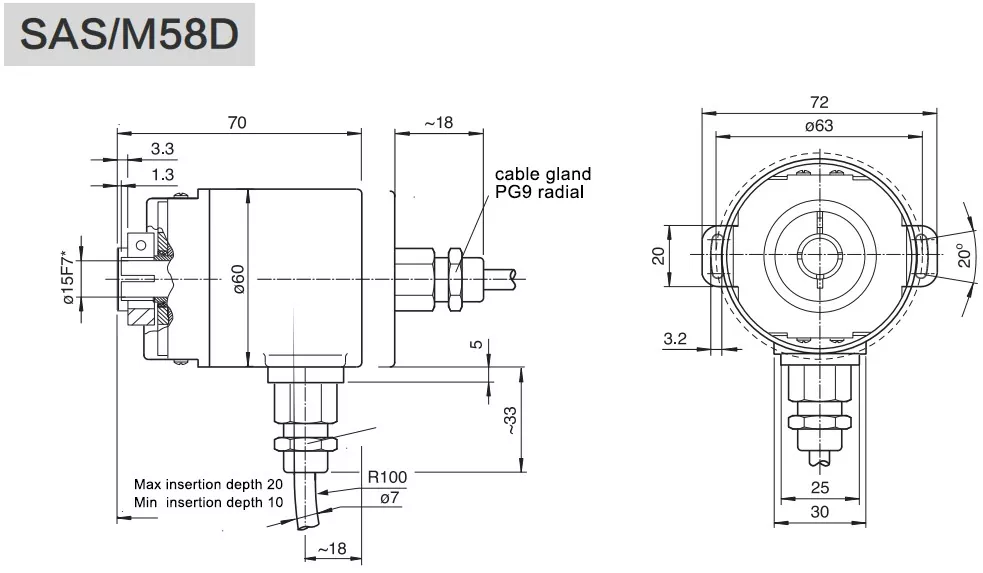

| Flange | ø58mm Solid shaft with clamping flange / ø58mm blind hole |
| Spindle size | ø6,8,10,12,15mm customizable |
| Shell material | Aluminum (stainless steel optional) |
| Signal output interface | CANopen |
| CANopen+incremental | |
| Output circuit | Compliant with ISO11898 standard, optocoupler electrical isolation |
| Compliant protocal | CANopen CiA,DS301V4.02 |
| DSP 305(LSS) | |
| DS 406/DS417 (Equipment protocol) | |
| Node address | 1-127 |
| Absolute type | Single turn / multi turn |
| Power voltage | 10~30VDC |
| Single turn resolution | Standard 12bit 4096,13bit 8192, 16bit 65536,18bit 262144,max 21bit 2097152 |
| Turns | 1(single turn),multi-turn standard 12bit 4096,multi-turn max 14bit 16384 |
| Supported transfer mode | Polling, Looping, Synchronization |
| Parameter settings | Supported setting node address and baud rate(DS305 LSS) |
| Diagnose | Position, speed, voltage, and temperature; 2 limit switches, 8 cams |
| Encoding | Binary code |
| Reverse polarity protection | Yes |
| Short circuit protection | Yes |
| Lightning and static electricity protection | Yes |
| Max speed | 6000rpm |
| Spindle load | Radial 200N, Axial 100N |
| Protection | IP65,IP68 |
| Starting torque | <0.01Nm |
| Working temperature | -30℃~+85℃(-40℃~85℃ optional) |
| Storage temperature | -40℃~+100℃ |
| Impact resistance | 1000m/s2,6ms(100g) |
| Anti-vibration | 20g |

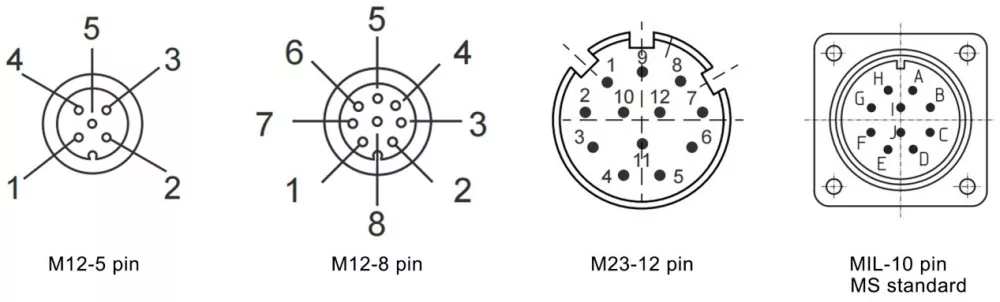

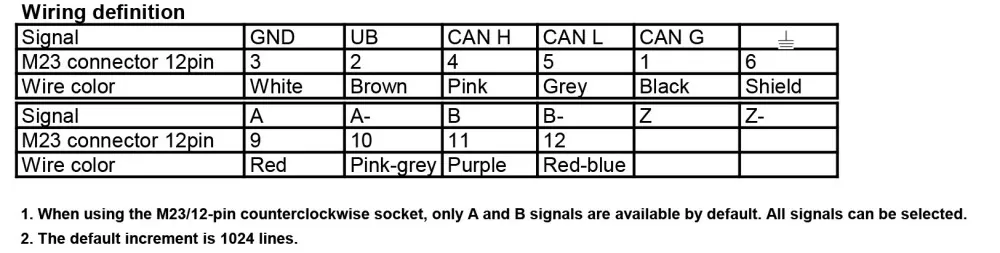

| Connection method | 4x2x0.2-8-core shielded cable,M12-5 core,M12-8 core,M23-12 core male flange connector |
| Outgoing method | Radial side outlet,Axial rear outlet |
| Optional | Incremental output TTL/RS422, HTL/push-pull |
| Incremental signal | A+ A- B+ B- Z+ Z- |
| Pulses per revolution | 1~4096 pulses optional(standard 1024,2048,4096) |
The CANopen output interface is the core advantage of this encoder, supporting high-speed, high-efficiency data transmission and multi-device bus networking, which can realize centralized control and synchronous data collection of multiple industrial devices. The absolute multi-turn magnetic measurement technology ensures non-volatile position data, no need for repeated zero calibration, and improves production efficiency. The all-metal rugged structure and IP65-IP68 full protection level enable it to resist mechanical impact, vibration, dust, water and chemical corrosion in heavy industrial environments. It supports independent and synchronous output of single-turn and multi-turn data, with flexible resolution adjustment to adapt to low-precision and high-stability industrial measurement scenarios. The built-in professional redundant function greatly reduces equipment operation failure risks and improves system safety. With standardized protocol certification and industrial-grade quality, the product has strong environmental adaptability and long service life, and various installation methods meet diverse on-site layout requirements.
This 58mm outer diameter ANopen heavy duty encoder is mainly applicable to heavy industrial automated equipment that requires bus networking and high-speed data transmission. It is widely used in intelligent production lines of steel manufacturing and metallurgy, realizing synchronous control of multiple rolling and processing equipment. It is suitable for automated machinery and equipment in oil fields, petrochemical plants and refineries, supporting networked monitoring of production and extraction equipment. In addition, it serves large-scale mining machinery, heavy hoisting equipment, power plant automated units and papermaking industrial production lines, providing high-reliability position data transmission and synchronous control support for networked industrial automation systems.
