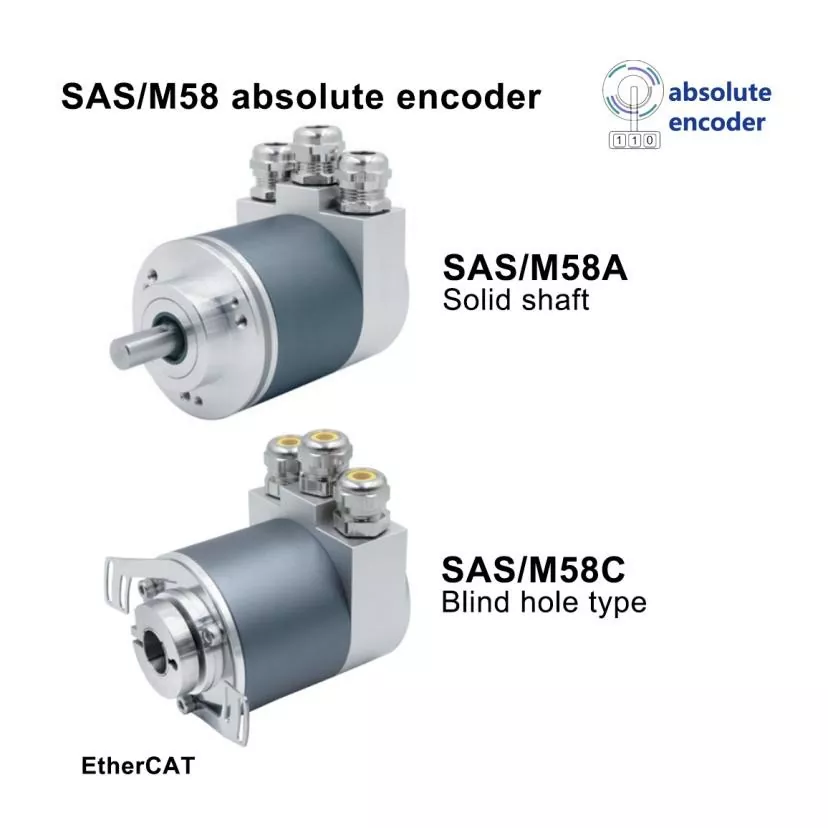

EtherCAT Heavy Duty Encoder

High-precision magnetic induction technology, single-turn or multi-turn encoders;

EtherCAT bus maximum speed 100Mbit;

Single-turn resolution up to 16 bits, multi-turn resolution up to 14 bits;

Superior resistance to magnetic field interference, LED status display;

Features reverse short-circuit and short-circuit protection,reducing the impact of installation errors.

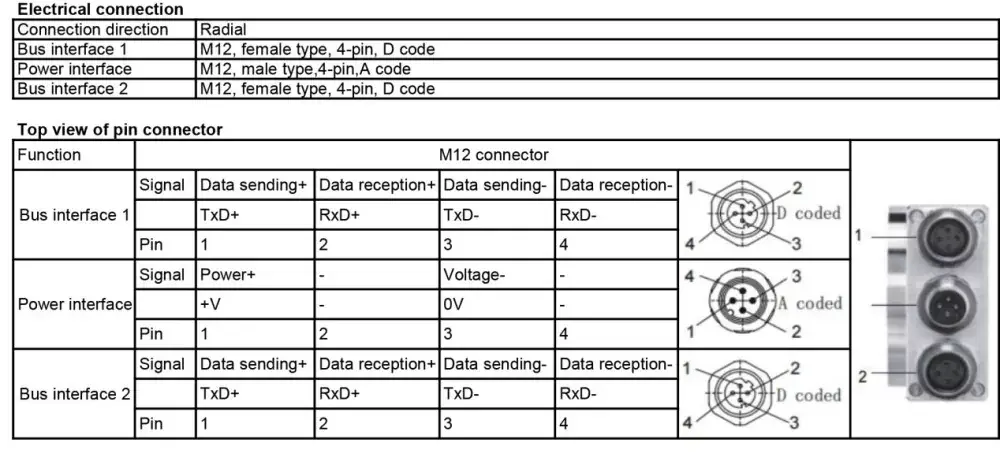

Parameter

Adopting EtherCAT real-time Ethernet output protocol, this 58mm EtherCAT heavy duty encoder achieves microsecond-level high-speed data transmission and ultra-low delay signal feedback, meeting the real-time control requirements of high-speed automated heavy industrial equipment. The absolute magnetic encoding technology ensures accurate recording of multi-turn position information, no data loss after power failure, and stable and continuous output. The high-rigidity metal housing and IP65-IP68 high protection grade effectively resist severe environmental interference such as strong vibration, impact, corrosion and dust in heavy industry. It supports flexible resolution configuration and dual synchronous output of single/multi-turn data, adapting to high-stability and low-precision industrial measurement scenarios. The independent redundant signal design ensures fault tolerance of equipment operation and avoids production interruption caused by single signal failure. Diversified installation schemes realize fast on-site deployment, and multiple authoritative certifications guarantee industrial-grade reliable operation in long-term harsh environments.

This EtherCAT high-speed heavy duty encoder is suitable for heavy industrial automated equipment with high real-time control requirements. It is widely used in high-speed rolling and automated processing production lines of steel manufacturing and metallurgical industries, realizing real-time position feedback and synchronous control of high-speed operating equipment. It is applied to high-precision automated control equipment in petrochemical, oil refinery and oil field scenarios, ensuring real-time monitoring of production machinery. In addition, it provides high-speed and high-reliability position signal support for intelligent mining equipment, large hoisting machinery, power plant intelligent power generation units and high-speed papermaking production lines, ensuring efficient and stable operation of automated industrial systems.

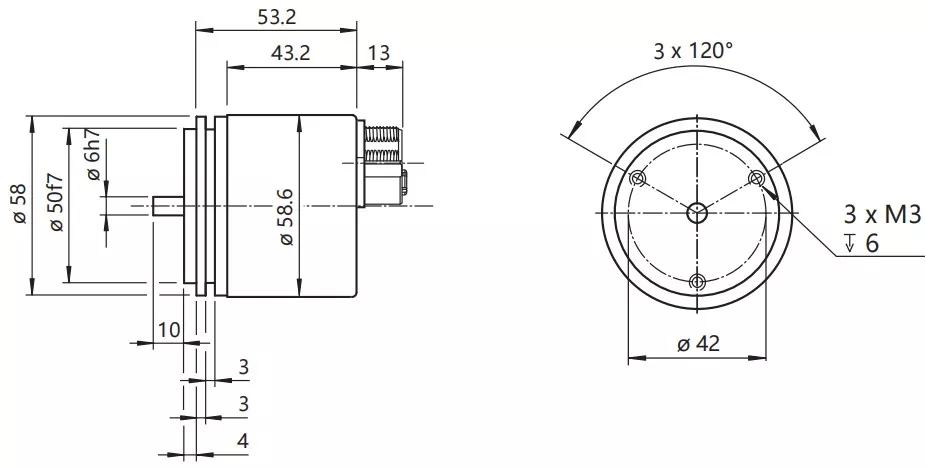

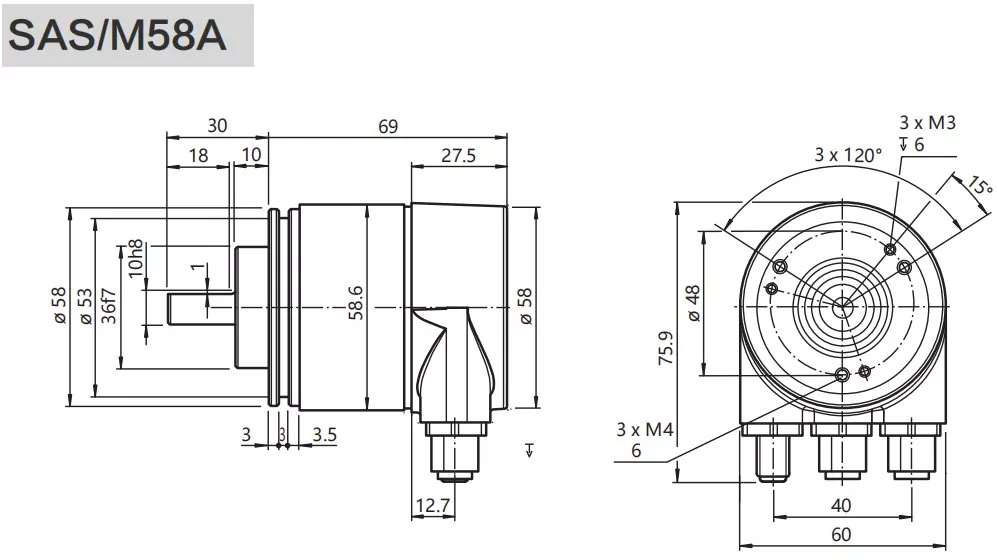

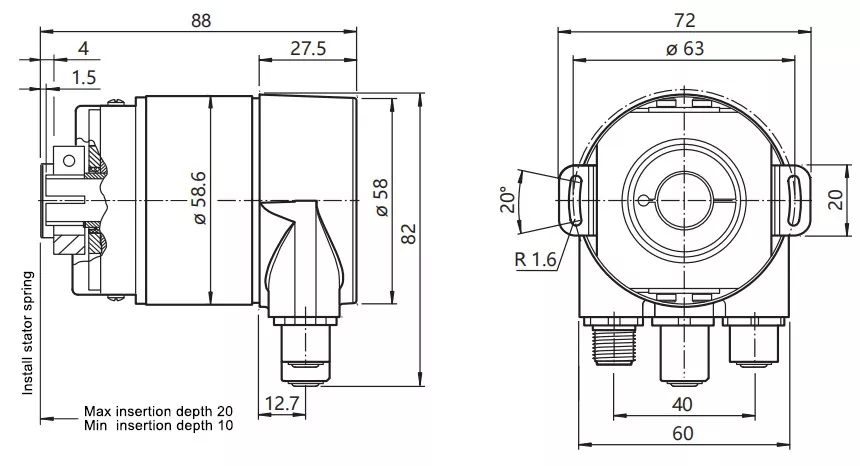

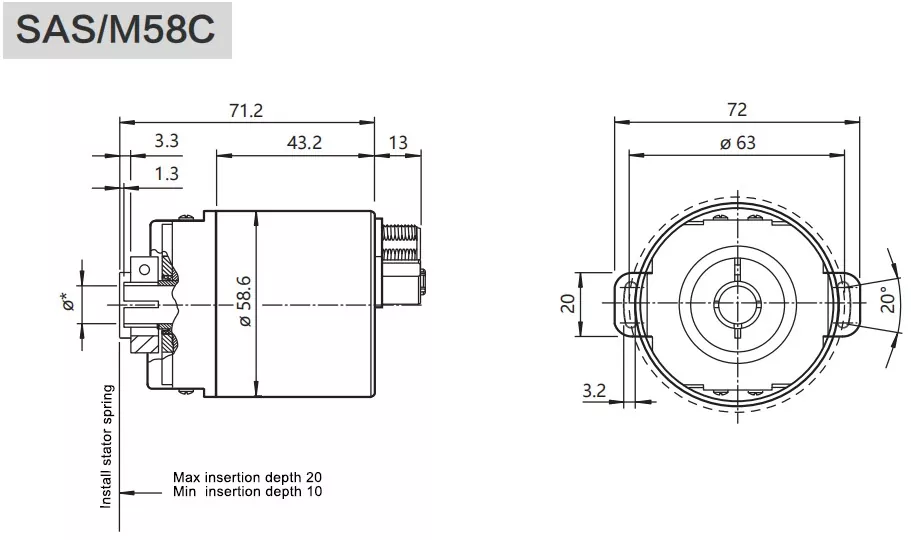

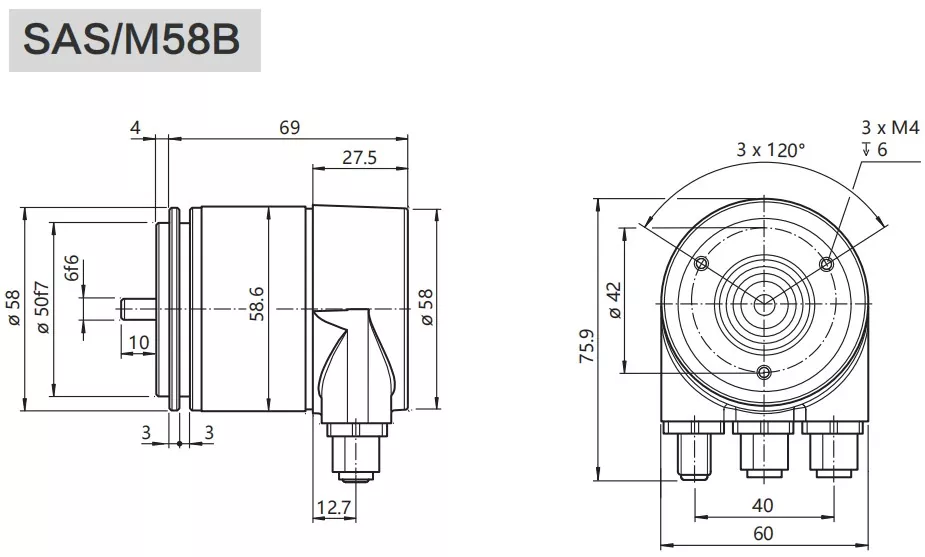

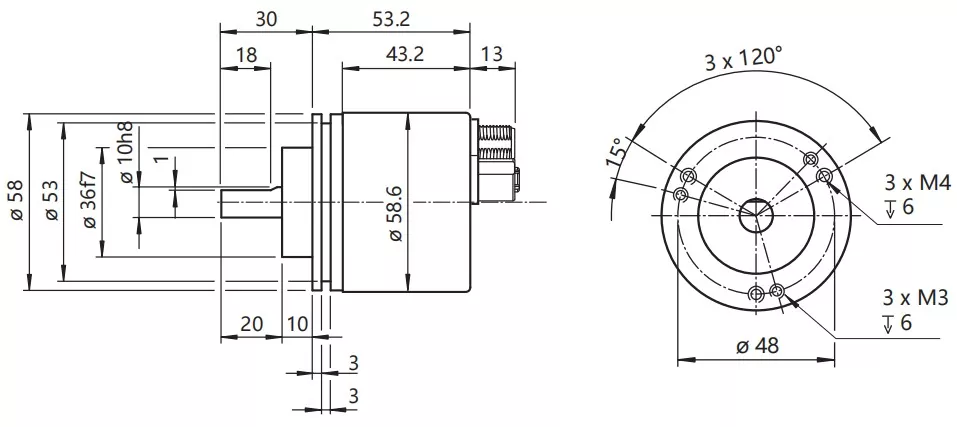

Installation dimensions

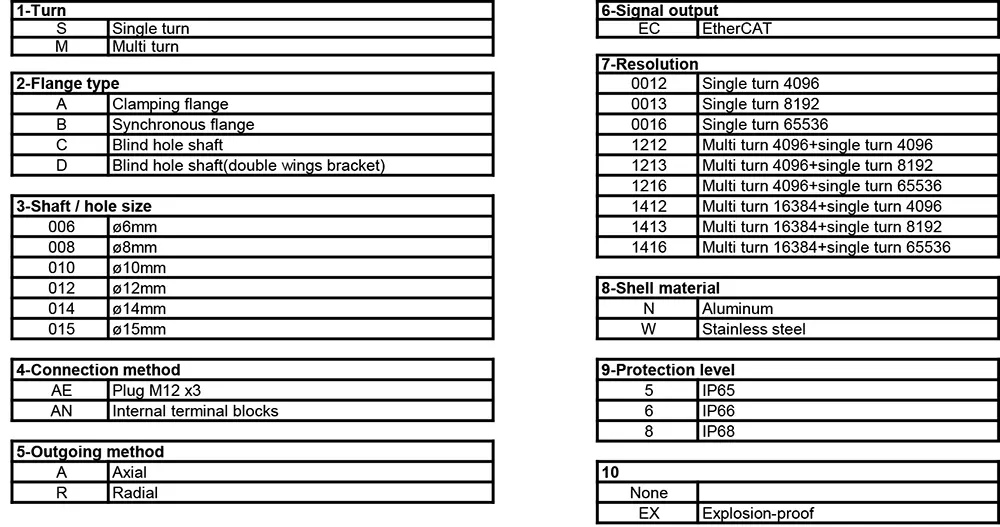

Selection

FAQ
