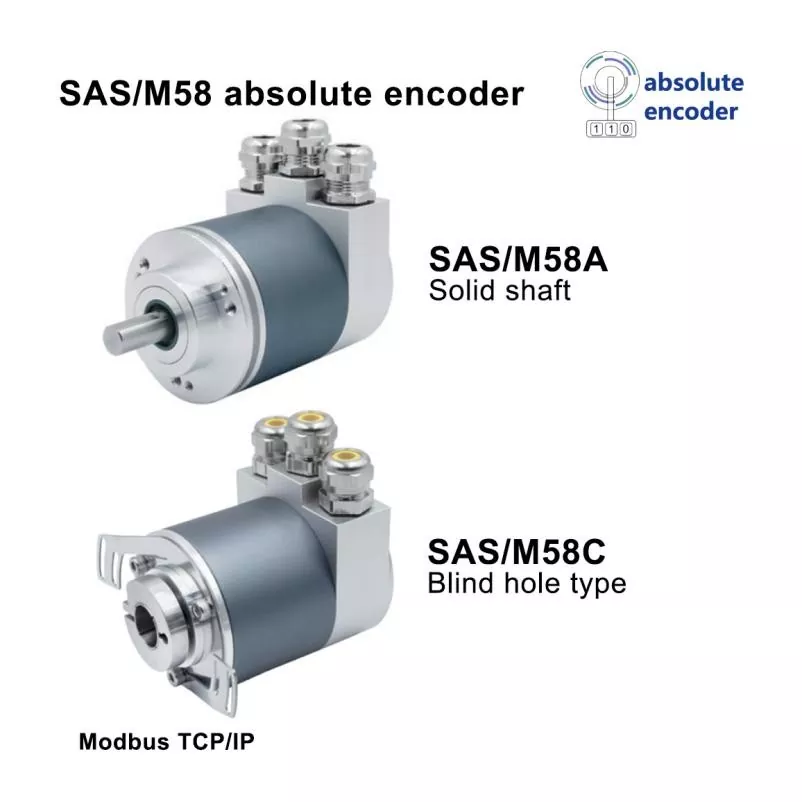

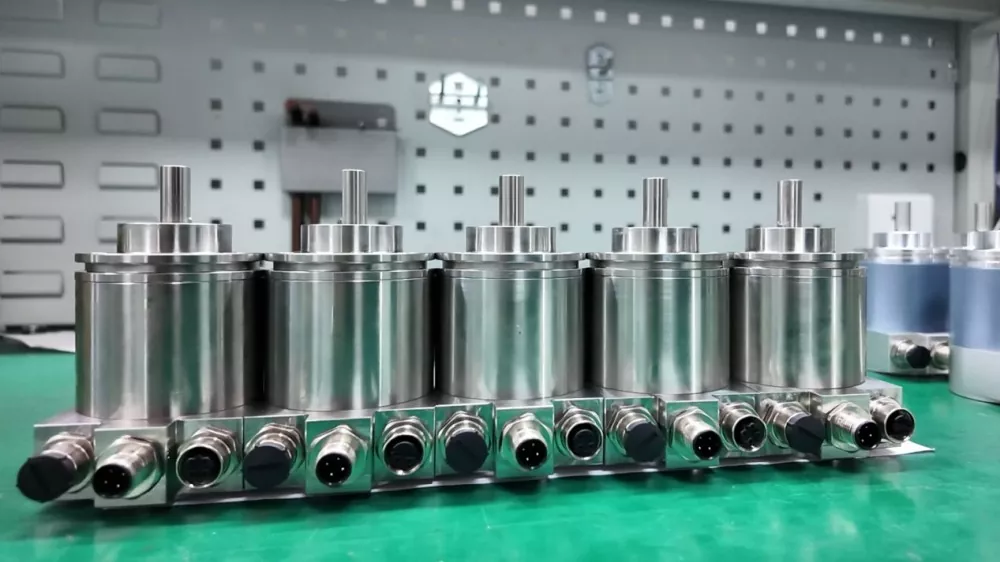

Modbus Heavy Duty Encoder

High-precision magnetic induction technology, single-turn or multi-turn encoders;

Modbus TCP/IP bus maximum speed 10/100Mbit;

Single-turn resolution up to 18 bits, multi-turn resolution up to 14 bits;

Superior resistance to magnetic field interference, LED status display;

Features reverse short-circuit and short-circuit protection,reducing the impact of installation errors.

With universal Modbus bus output, this encoder has extremely high compatibility, which can be seamlessly docked with almost all mainstream industrial control systems, reducing equipment matching difficulty and system transformation cost. The absolute multi-turn magnetic encoding technology ensures permanent storage of position data, no power-down data loss, and continuous and accurate data feedback. The high-strength metal structure and IP65-IP68 dustproof, waterproof and anti-corrosion performance adapt to complex harsh environments such as high dust, high corrosion and strong vibration in heavy industry. It supports dual synchronous output of single/multi-turn data and multi-resolution optional switching, fully adapting to high-reliability and low-precision industrial measurement scenarios. The professional redundant design improves equipment fault tolerance and operational safety. Diversified installation schemes meet different on-site layout requirements, and multiple authoritative certifications ensure long-term stable industrial operation.

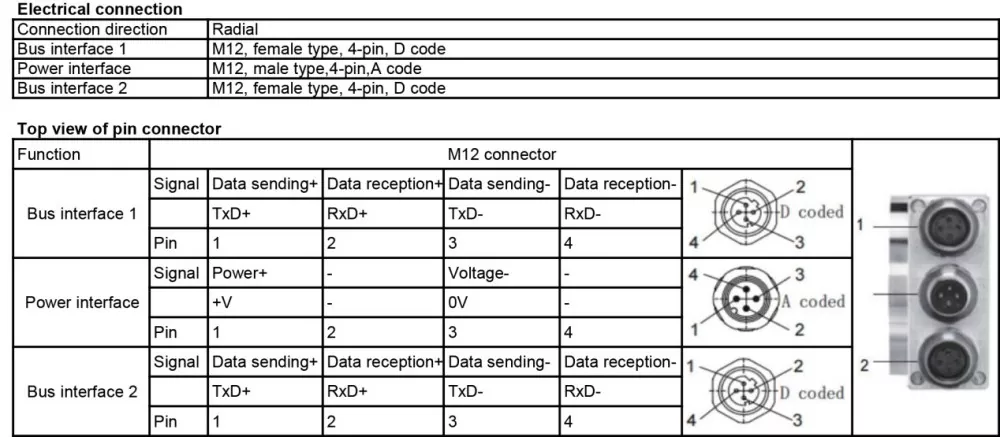

Parameter

This 58mm Modbus heavy duty encoder is applicable to all kinds of heavy industrial automation equipment requiring universal protocol docking. It is widely used in position monitoring and automatic control of production lines in steel manufacturing, metallurgy and papermaking industries. It is perfectly suitable for equipment signal collection and position feedback in petrochemical, oil refinery and oil field operation sites. In addition, it provides stable data support for automated control of mining machinery, large hoisting equipment, power plant power generation units and heavy construction machinery, ensuring the stable operation of industrial automated production systems.

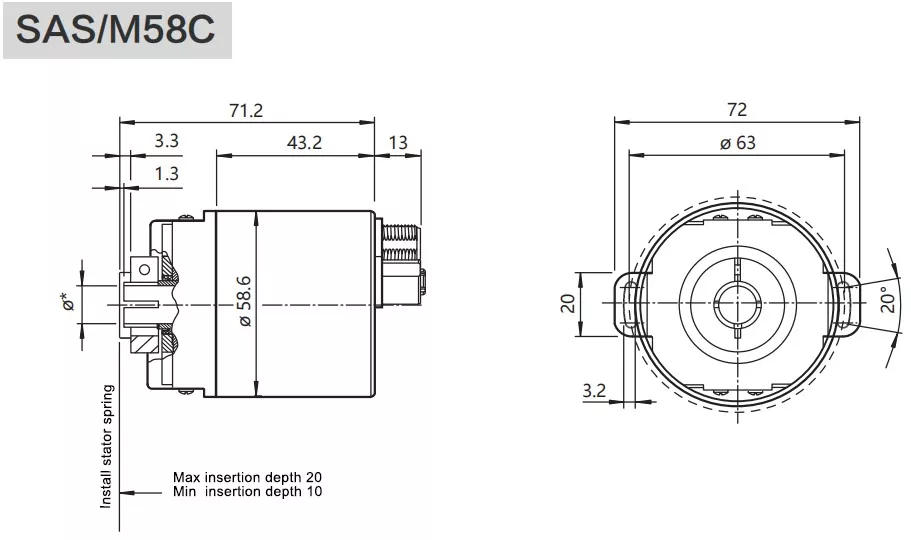

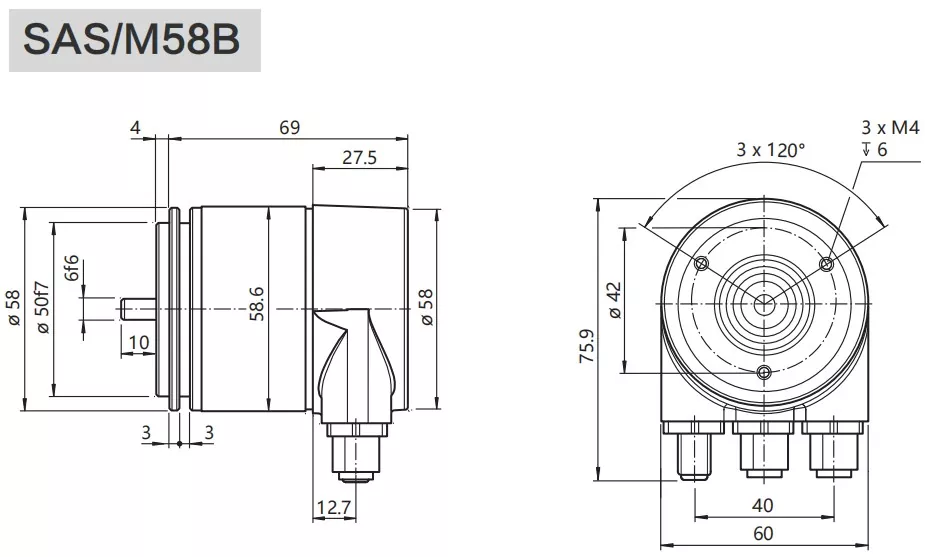

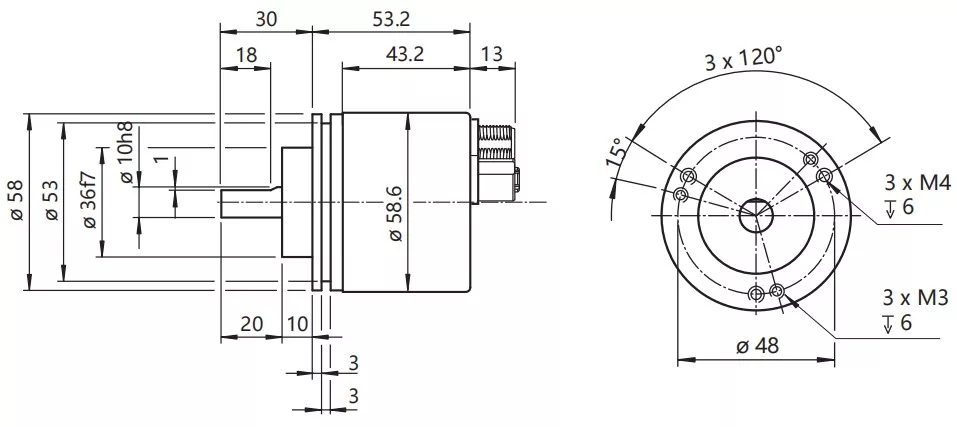

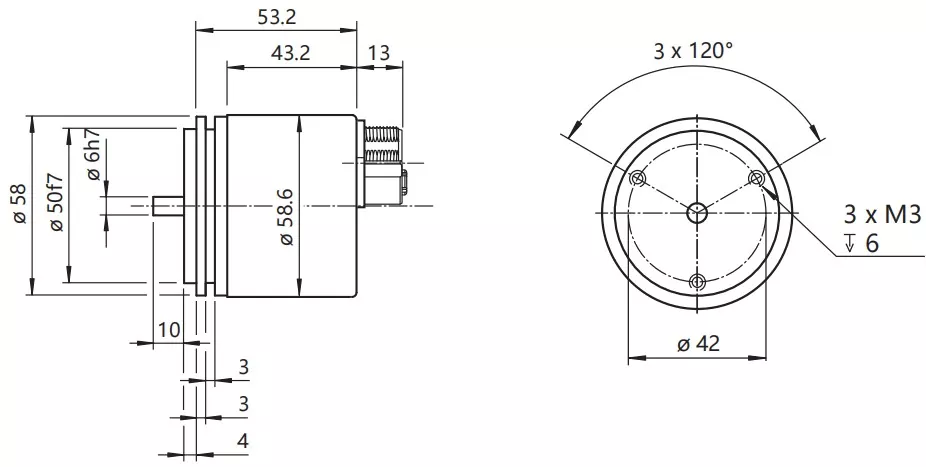

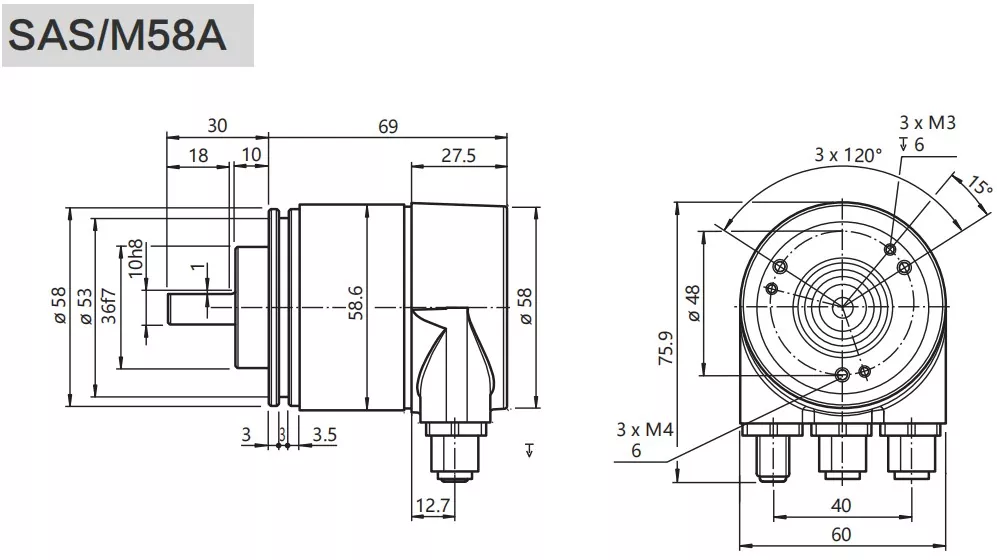

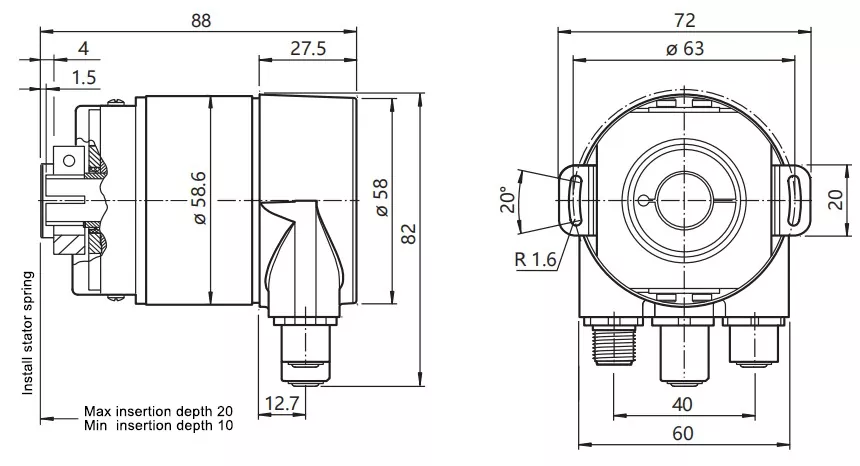

Installation dimensions

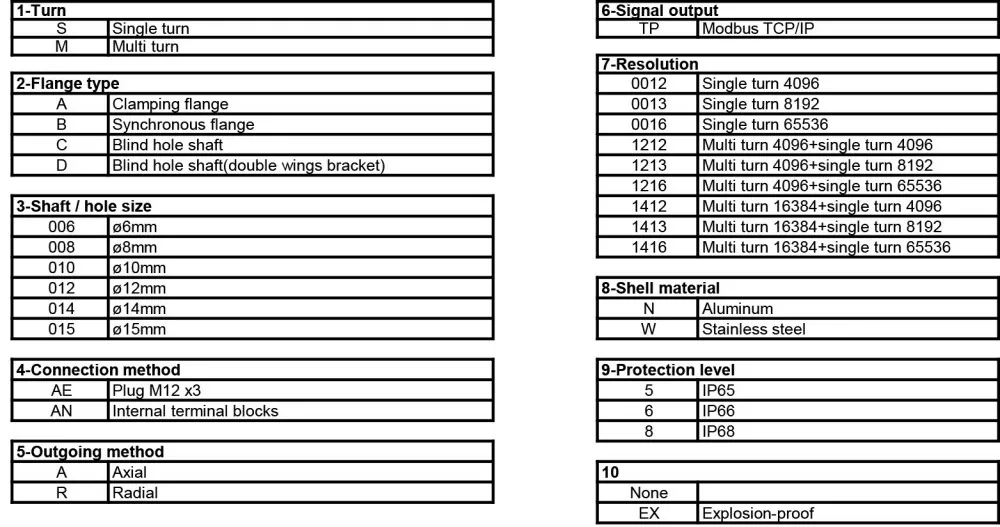

Selection

FAQ

Q1: What are the core advantages of your heavy duty encoders compared with ordinary encoders?

A: Our products adopt reinforced mechanical structure, high-quality raw materials and strict testing standards, with stronger vibration resistance, shock resistance, environmental adaptability and longer service life, suitable for all kinds of harsh industrial working conditions.

Q2: Can your encoders withstand high-intensity continuous operation?

A: Yes. All products pass 24-48 hours high-temperature continuous aging test, which verifies the stable continuous operation capability, meeting the long-term uninterrupted operation needs of industrial equipment.

Q3: How is the temperature resistance performance of the encoder?

A: Standard products adapt to conventional industrial temperature ranges. Customized models can pass high and low temperature thermal shock tests, realizing stable operation in extreme high and low temperature environments.

Q4: Do your encoders have strong anti-interference ability?

A: Yes. Equipped with high-quality certified cables and connectors, matched with mature differential signal and bus communication technology, the products have excellent EMC anti-interference performance, suitable for high-electromagnetic-interference industrial sites.

Q5: Can the product adapt to long-term dusty and oily working conditions?

A: Yes. With high-standard sealing structure and industrial protection grade, our encoders effectively prevent dust, oil mist and water vapor from invading, adapting to harsh working conditions such as steel and mining.
