Our core products abandon the bulky design of traditional servo drives, achieving a perfect balance of miniaturization and high power: the SEA 210A model is compact in size but supports 17KW maximum continuous output power, with far higher power density than traditional products of the same power. The advanced DSP+FPGA architecture brings ultra-high control bandwidth, fast response speed and precise linear control performance, covering all mainstream encoder feedback methods and dual combined feedback modes. We have established a full-process quality control system in line with international standards, obtaining ISO9001-2015 quality certification and SGS EMC certification, with product MTBF exceeding 50000 hours. Supported by a mature domestic industrial supply chain, our drives feature strong universality, can be perfectly matched with various frameless torque motors, and form integrated precision motion execution systems with motors and encoders for various high-standard industrial scenarios.
|
Parameters |
Organization |
1/100 |
3/100 |
6/100 |
10/100 |
15/100 |
25/100 |
50/100 |
70/100 |
80/80 |
|
Minimum supply voltage |
VDC |
11 |
||||||||
|
Rated supply voltage |
VDC |
85 |
65 |
|||||||
|
Maximum supply voltage |
VDC |
95 |
75 |
|||||||
|
Maximum continuous power output |
W |
80 |
235 |
470 |
800 |
1125 |
2000 |
4000 |
5600 |
50000 |
|
Efficiency (rated power) |
% |
95 |
||||||||
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
||||||||
|
Rated DC current |
A |
1 |
3 |
6 |
10 |
15 |
25 |
50 |
70 |
80 |
|
Effective continuous current(Ic) |
A |
0.7 |
2.1 |
4.2 |
7.1 |
10 |
17.7 |
35.3 |
49.5 |
56.5 |
|
Current peak(2*ic) |
A |
1.4 |
4.2 |
8.4 |
14.2 |
20 |
35.4 |
— |
— |
— |
SEA MOTION’s China brushless motor servo drives give full play to the application advantages of frameless torque motors such as high torque density and integrated installation. The compact structure is suitable for embedded assembly of precision equipment, effectively reducing the overall volume of motion systems. The high-precision dual-feedback positioning technology avoids transmission errors of traditional mechanical structures, and the high-speed dynamic response improves equipment operation efficiency and control accuracy. With industrial-grade stability and strong compatibility, the products are widely applied in industrial automation precision assembly, aerospace precision transmission, intelligent logistics handling robots and precision testing instrumentation. In high-end manufacturing scenarios requiring high integration, high precision and long-term stable operation, our drives can fully release the performance potential of frameless torque motors, providing reliable and efficient core power support for precision motion control.

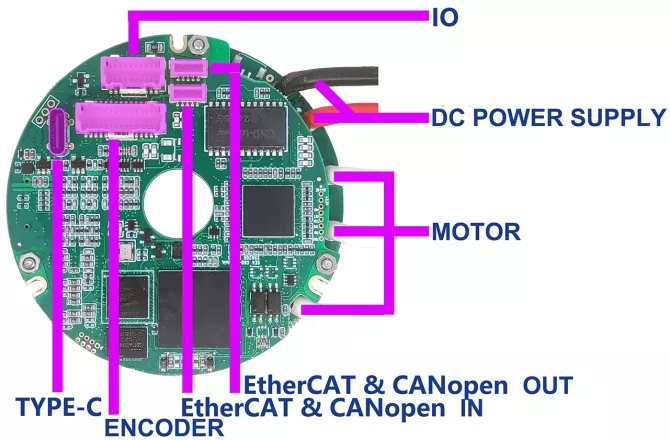

Interface definition of brushless motor servo drives SEAC68
