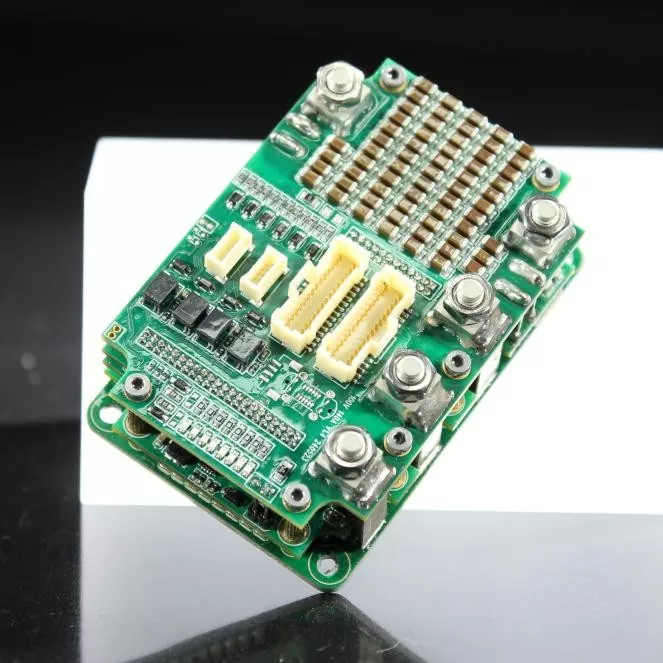

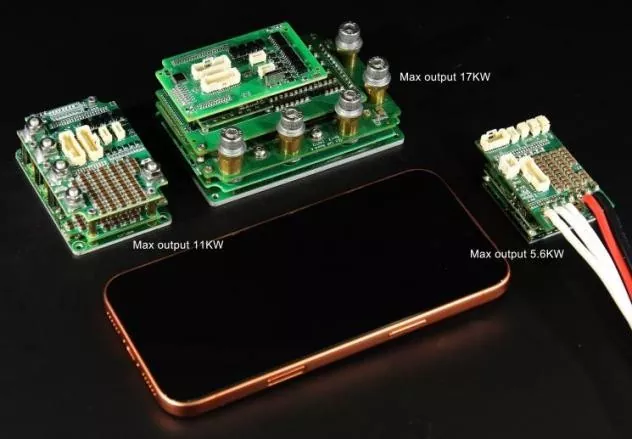

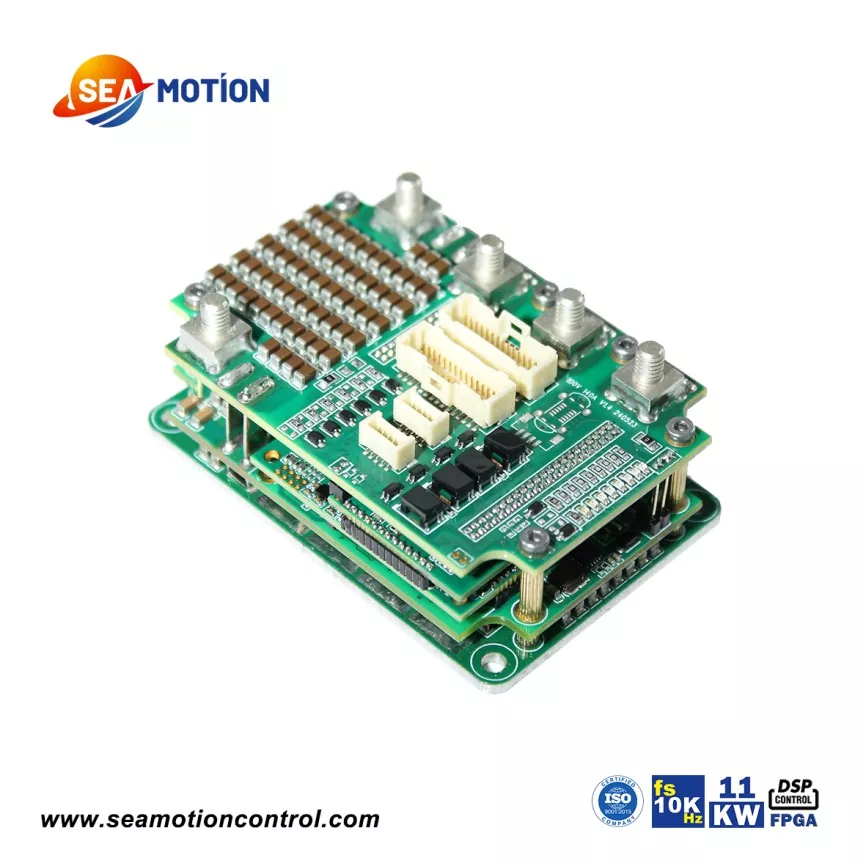

Specializing in R&D, production and supply of coreless motor servo drives, SEA MOTION focuses on solving the pain points of large volume, low precision and poor compatibility of traditional servo drives in high-end manufacturing. Our core products take small size and high power density as the core advantage, with the classic SEA 210A model achieving 17KW high power output in a tiny size, breaking the size-power limitation of traditional drives. Equipped with DSP+FPGA dual-core architecture, the products own ultra-high control bandwidth, fast response speed and excellent linear control performance, supporting absolute, incremental, resolver and various dual combined feedback modes. As a reliable provider, we adhere to strict quality control, all products pass ISO9001-2015 quality certification and SGS EMC electromagnetic compatibility certification, with ultra-high stability of 50000-hour MTBF. With mature supply chain and flexible delivery capability, our drives are universally compatible with most frameless torque motors, forming high-precision integrated actuators with motors and encoders for diverse high-end manufacturing applications.
|
Parameter |
Unit |
140/100 |
160/80 |
40/200 |
|
Minimum supply voltage |
VDC |
11 |
11 |
21 |
|
Rated supply voltage |
VDC |
85 |
65 |
170 |
|
Maximum supply voltage |
VDC |
95 |
75 |
195 |
|
Maximum continuous power output |
KW |
11 |
10 |
6.4 |
|
Efficiency (rated power) |
% |
95 |
95 |
95 |
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
||
|
Rated DC current |
A |
140 |
160 |
40 |
|
Effective continuous current(Ic) |
A |
99 |
113 |
28 |
|
Current peak(2*ic) |
A |
— |
— |
— |
SEA MOTION’s coreless motor servo drives are designed for the lightweight, high-torque and integrated application characteristics of frameless torque motors, realizing perfect adaptive matching. The miniaturized design saves equipment installation space greatly, while high power density ensures sufficient torque output for precision equipment.
The multi-encoder dual-feedback technology effectively improves motion control accuracy and anti-interference ability, and the high-bandwidth operation system realizes instantaneous response to control signals. These superior performances make our products widely applied in medical precision equipment, semiconductor processing equipment, automated inspection equipment and industrial robotic arms. In precision manufacturing scenarios with strict requirements on equipment volume, control accuracy and operational stability, our drives can optimize the overall performance of motion systems, reduce equipment failure rates, and provide stable and efficient drive support for high-end precision production.
