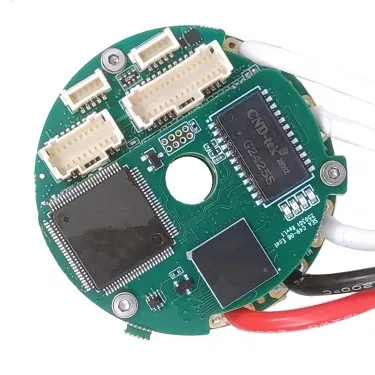

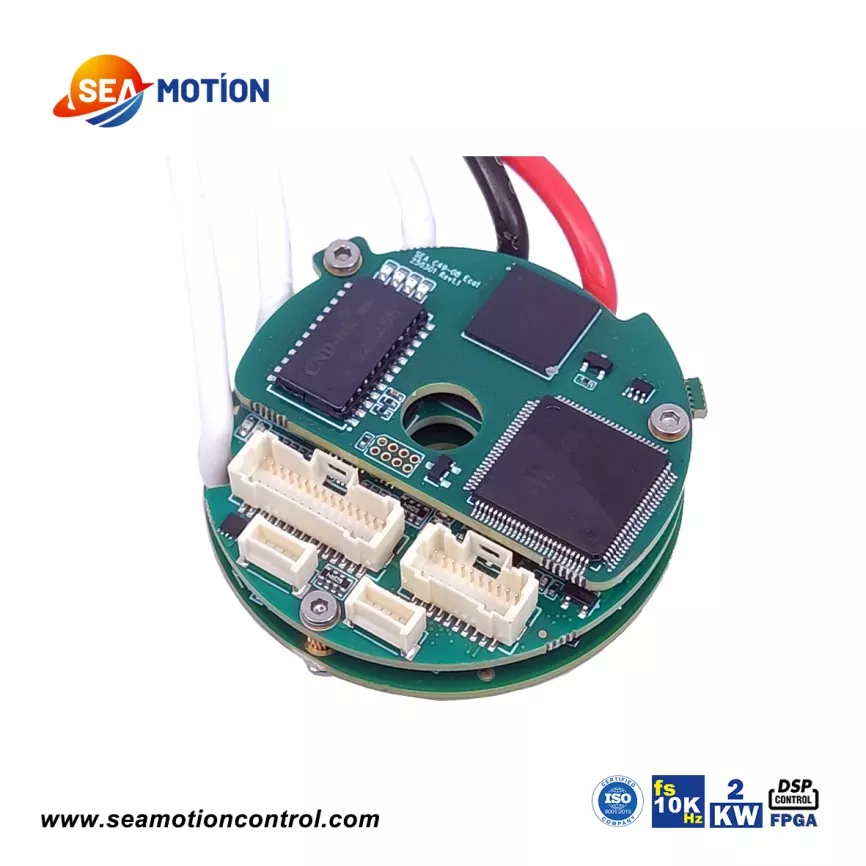

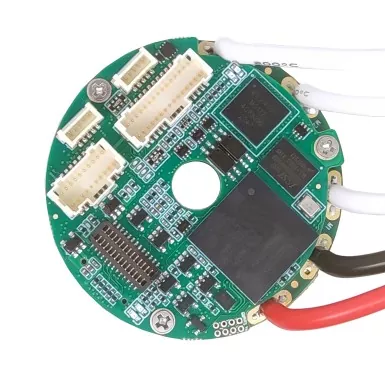

Our independently developed voice coil motor servo drives have obvious advantages over traditional products: ultra-small size and ultra-high power density, with SEA 210A realizing 17KW high power output in miniaturized size, greatly optimizing equipment space utilization. Adopting DSP+FPGA dual-control architecture, the products have ultra-high control bandwidth, fast dynamic response and excellent linearity, supporting absolute/incremental and resolver/absolute dual-feedback modes to meet diverse precision control needs.
All products strictly follow ISO9001-2015 quality system and pass SGS EMC certification, with industrial-grade 50000-hour long stable operation life. With localized complete supply chain and efficient production capacity, our products are universally compatible with various frameless torque motors, forming high-precision integrated actuators, widely used in domestic and foreign high-end precision manufacturing fields.
|
Parameter |
Unit |
1/100 |
3/100 |
6/100 |
10/100 |
15/100 |
25/100 |
|
Minimum supply voltage |
VDC |
11 |
|||||
|
Rated supply voltage |
VDC |
85 |
|||||
|
Maximum supply voltage |
VDC |
95 |
|||||
|
Maximum continuous power output |
W |
80 |
235 |
470 |
800 |
1125 |
2000 |
|
Efficiency (rated power) |
% |
95 |
|||||
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
|||||
|
Rated DC current |
A |
1 |
3 |
6 |
10 |
15 |
25 |
|
Effective continuous current(Ic) |
A |
0.7 |
2.1 |
4.2 |
7.1 |
10 |
17.7 |
|
Current peak(2*ic) |
A |
1.4 |
4.2 |
8.4 |
14.2 |
20 |
35.4 |
SEA MOTION’s Chinese voice coil motor servo drives are tailor-made for the integrated application of frameless torque motors, perfectly matching the characteristics of small size, high torque and zero transmission gap of frameless motors. The high-power density design solves the space occupation problem of traditional high-power drives, and the multi-mode dual-feedback technology ensures sub-arc-second level motion control accuracy. The high-bandwidth response system realizes real-time precise adjustment of equipment operation, with strong anti-interference ability and industrial environmental adaptability. The products are widely used in high-end fields such as humanoid robot joints, precision machine tool spindles, medical minimally invasive equipment and semiconductor precision handling equipment. Relying on superior cost performance and stable quality, our drives help domestic and foreign manufacturing enterprises upgrade precision motion control systems and replace imported high-end drive equipment efficiently.

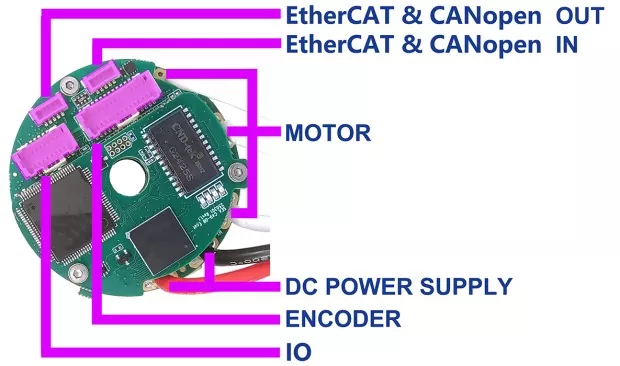

Interface definition of voice coil motor servo drives SEAC49
