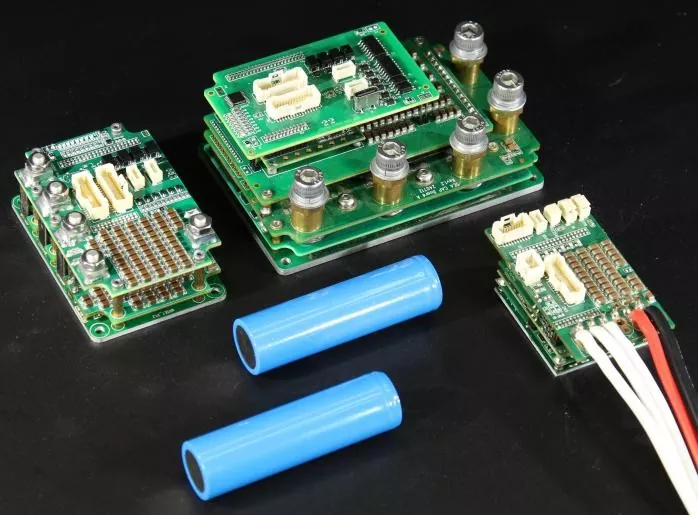

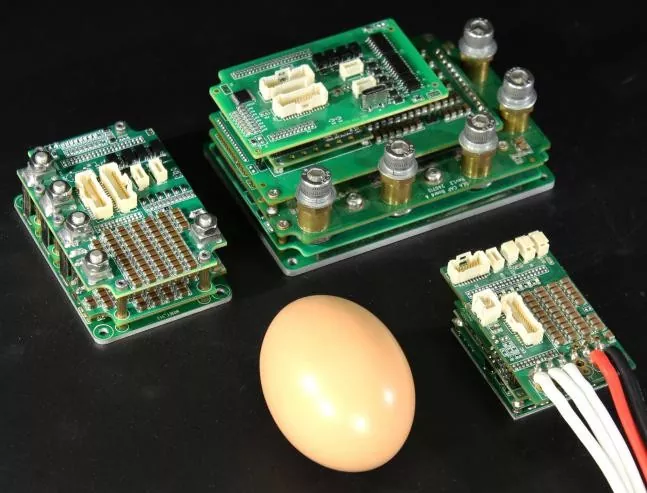

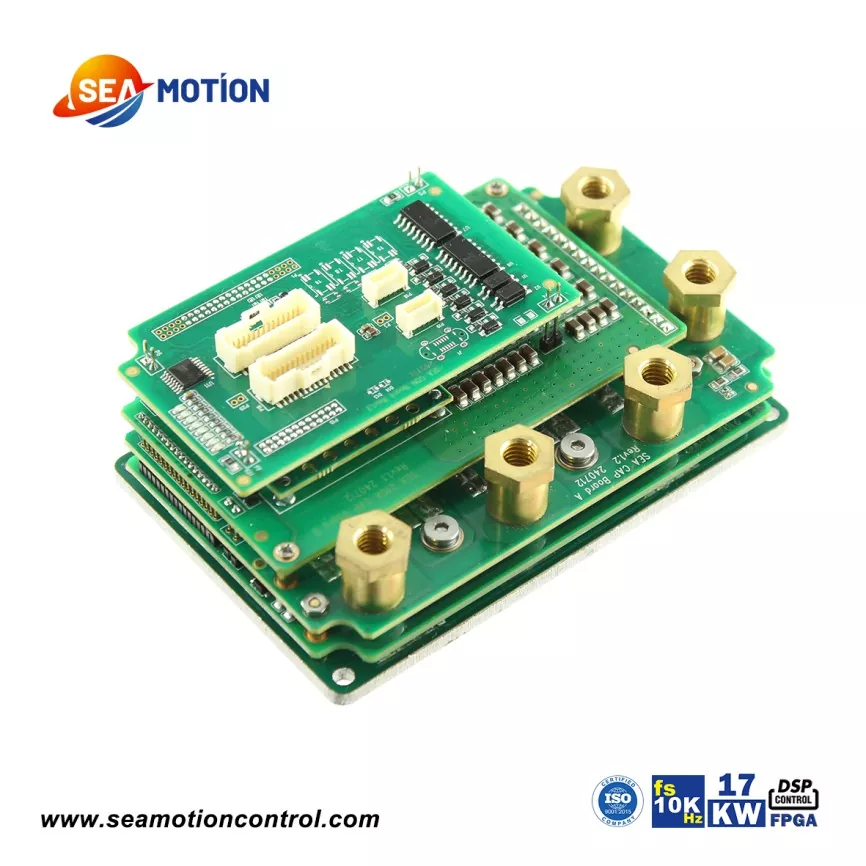

Compared with traditional servo drives, our products achieve revolutionary breakthroughs in power density and volume control: the SEA 210A model is as small as a cigarette box but supports 17KW continuous power output, while traditional drives of the same power are several times larger in volume. The advanced DSP+FPGA control architecture endows the products with ultra-high response speed and linear control accuracy, supporting full-range mainstream encoder feedback and dual-feedback composite control modes.
We implement full-process quality inspection in strict accordance with ISO9001-2015 system standards, and all products pass SGS EMC testing, with MTBF reaching more than 50000 hours. With a complete upstream and downstream supply chain, we support standardized and customized supply, and our products are highly compatible with various frameless torque motors, forming stable and efficient precision execution units with motors and encoders.
|
Parameter |
Unit |
210/100 |
100/200 |
|
Minimum supply voltage |
VDC |
11 |
20 |
|
Rated supply voltage |
VDC |
85 |
170 |
|
Maximum supply voltage |
VDC |
95 |
195 |
|
Maximum continuous power output |
KW |
17 |
16.5 |
|
Efficiency (rated power) |
% |
95 |
95 |
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
|
|
Rated DC current |
A |
210 |
100 |
|
Effective continuous current(Ic) |
A |
150 |
70 |
|
Current peak(2*ic) |
A |
— |
— |
Our Linear motor servo drives perfectly adapt to the core application advantages of frameless torque motors such as compact structure, high torque density and flexible integration. The high-precision dual-feedback positioning technology eliminates motion errors caused by transmission gaps, and the high-bandwidth dynamic response capability meets the high-speed and high-precision operation requirements of precision equipment.
The universal motor matching performance and industrial-grade stability make the products applicable to multiple high-precision fields including intelligent robot joints, precision optical equipment, aerospace automation devices and new energy precision processing equipment. In high-end manufacturing scenarios that require integrated installation, precise control and long-term stable operation, our drives can maximize the performance advantages of frameless torque motors, improve equipment automation and precision levels, and provide reliable core drive support for industrial upgrading.

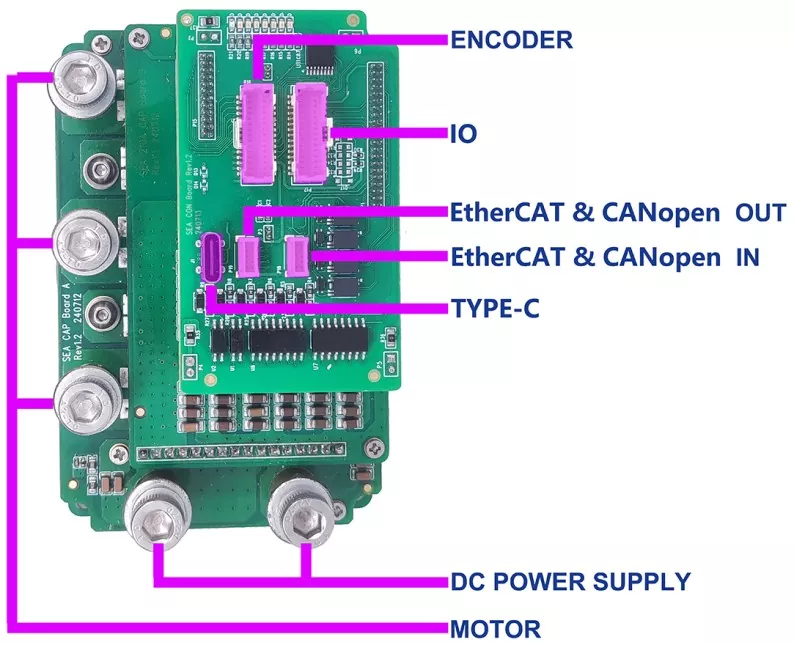

Interface definition of Linear motor servo drives SEA210A
