The ultra-compact body carries powerful performance, supporting nearly all mainstream encoder feedback, incremental/absolute and resolver/absolute dual feedback, IO and STO functions, and stable operation at -45°C low temperature. We implement industry-leading layered quality inspection: each PCB assembly layer is tested independently, with over ten inspections from production to warehousing. With outstanding technical strength, we dominate the domestic high-precision turntable market and serve high-end semiconductor, medical and intelligent robot industries.
|
Parameter |
Unit |
1/100 |
3/100 |
6/100 |
10/100 |
15/100 |
25/100 |
|
Minimum supply voltage |
VDC |
11 |
|||||
|
Rated supply voltage |
VDC |
85 |
|||||
|
Maximum supply voltage |
VDC |
95 |
|||||
|
Maximum continuous power output |
W |
80 |
235 |
470 |
800 |
1125 |
2000 |
|
Efficiency (rated power) |
% |
95 |
|||||
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
|||||
|
Rated DC current |
A |
1 |
3 |
6 |
10 |
15 |
25 |
|
Effective continuous current(Ic) |
A |
0.7 |
2.1 |
4.2 |
7.1 |
10 |
17.7 |
|
Current peak(2*ic) |
A |
1.4 |
4.2 |
8.4 |
14.2 |
20 |
35.4 |

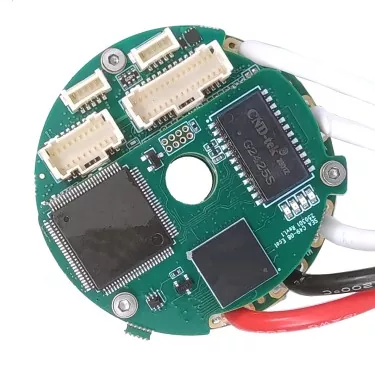

This micro high power servo drives boasts core strengths of miniaturization, high current and high precision, allowing flexible embedded installation in various equipment structures with simplified heat dissipation design. Its ultra-low temperature resistance and rich functional interfaces adapt to complex industrial working conditions.
It is widely used in semiconductor manufacturing equipment such as wafer handling machines, die bonders and placement machines. It supports high-precision single/multi-axis turntables and motion simulation equipment with leading domestic market share. It also applies to embodied intelligent robots, certified surgical robot systems and pathological slicing equipment, empowering domestic high-end precision manufacturing upgrading.

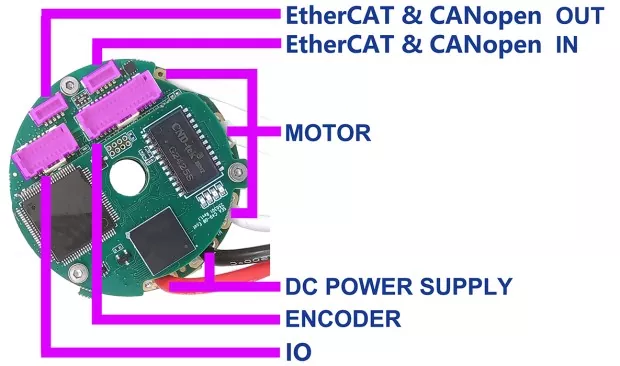

Interface definition of micro high power servo drives SEAC49
