Cutting Edge Micro Servo Drives

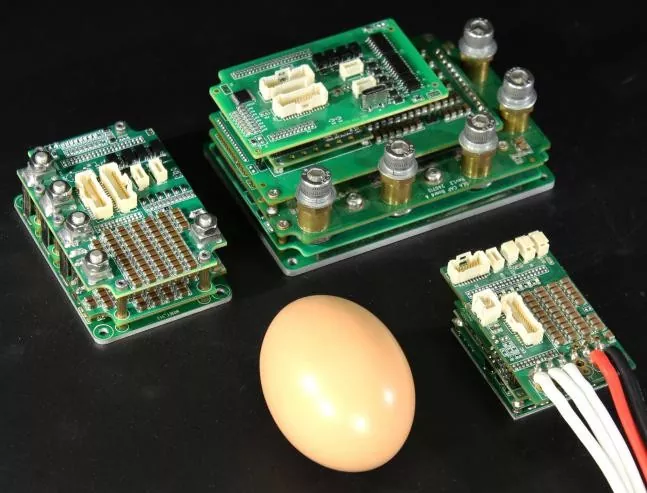

The SEA210A Cutting edge micro servo drives maintain the compact design characteristic of the SEA MOTION series. While retaining excellent data processing capabilities and response speed, we've achieved greater power output. The SEA 210A boasts a maximum continuous output current of 150A. Compared to traditional DC servo drives, other brands offering the same current are almost the size of a small computer case. The SEA210A, however, is smaller than a mobile phone.

Although the SEA210A is small in size, its performance surpasses that of most similar products. The product's current loop sampling frequency reaches 10kHz, with a theoretical bandwidth of 8kHz and an actual bandwidth exceeding 6kHz. Bandwidth is crucial for cutting-edge applications, as high bandwidth means more data can be processed simultaneously. As the core of MOTION CONTROL, the cutting edge micro servo drives are responsible for controlling the motor's precise movements and are the most important component of the entire servo system.

Product Parameter(Specification)

The SEA210A has maximum bus currents of 210A and 100A, corresponding to maximum voltages of 100V and 200V respectively. With a bus current of 210A, the continuous effective output current is 150A, and the maximum continuous output power reaches 17kW.

Compared to a 17kW motor, the SEA210A is so small that it can be easily housed within a motor casing.

In stark contrast to its small size, the SEA210A boasts impressive performance. It features a rich array of interfaces, supporting EtherCAT or CANopen , all popular encoder feedback, six digital input ports and two digital output ports, STO functionality, and a minimum operating temperature of -45°C.

Product feature And Application

The SEA210A boasts extremely high linearity and bandwidth. This is a powerful functional attribute brought to the product by the DSP+FPGA architecture. DSP+FPGA is the standard configuration for cutting-edge micro servo drives.

The SEA210A is a cutting-edge product in high-current servo drive products.The main applications of the SEA210A are as follows:

1. High-power DC servo systems;

2. Large integrated servo motors;

3. Heavy-duty servo equipment requiring precise motion;

4. Heavy-duty AGVs;

5. Large deep-sea robotic arms;

6. Heavy-duty submersibles.

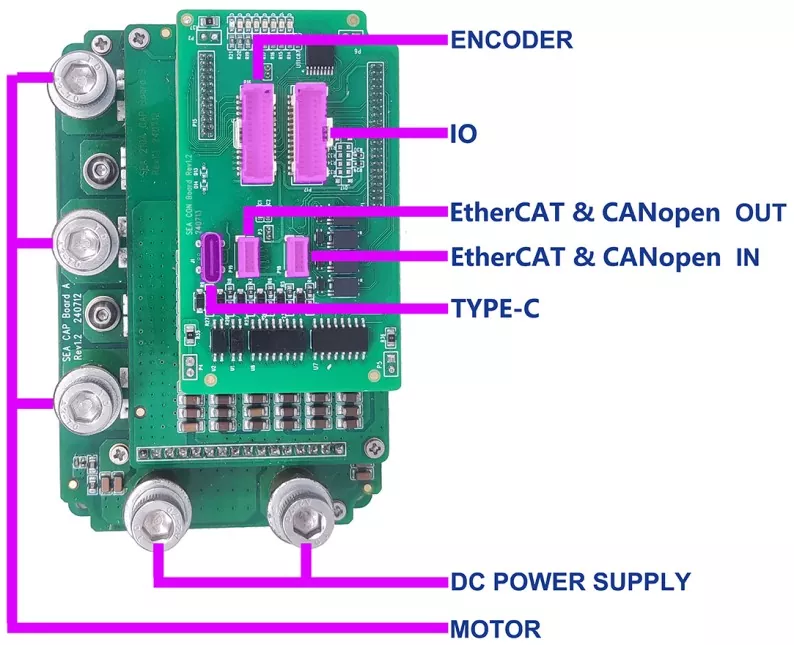

Interface definition of SEA 210A cutting edge micro servo drives

Product size / mm

Products video
