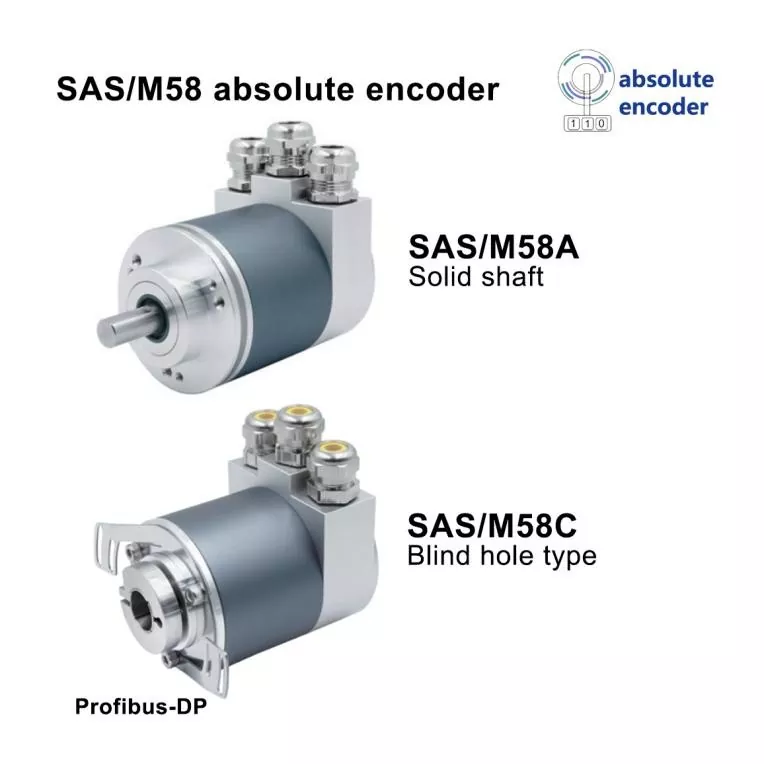

ProfiBUS DP Heavy Duty Encoder

High-precision magnetic induction technology, single-turn or multi-turn encoders;

Profibus-DP bus; Single-turn resolution up to 19 bits, multi-turn resolution up to 14 bits;

Superior shock and vibration resistance, high protection rating: up to IP66;

Features reverse short-circuit and short-circuit protection, reducing the impact of installation errors.

Equipped with ProfiBUS DP dedicated industrial bus output, this encoder realizes high-speed, stable and anti-interference data transmission, which is specially adapted to high-standard industrial automated production lines and complex electromagnetic environment scenarios. The absolute multi-turn magnetic sensing technology ensures accurate recording of multi-turn position information, no zero reset after power failure, and long-term consistent data output. The rugged metal housing and IP65-IP68 full protection structure resist mechanical vibration, impact, dust, water and chemical corrosion in heavy industry. It supports flexible resolution configuration and dual synchronous output of single/multi-turn data, meeting the high-stability operation requirements of heavy industrial equipment. The built-in redundant signal processing function effectively avoids system operation faults and improves production safety. Diversified installation and connection methods realize fast on-site docking, and professional protocol certifications ensure standardized and reliable industrial application.

Parameter

This 58mm ProfiBUS DP heavy duty encoder is mainly used in high-standard automated heavy industrial production scenarios. It is widely applied in high-end automated production lines of steel manufacturing and metallurgical industry, realizing high-speed and stable position data transmission of rolling and processing equipment. It serves large-scale automated production equipment in petrochemical plants and refineries, supporting precise operation monitoring of production lines. In addition, it is suitable for large intelligent mining equipment, heavy hoisting machinery, power plant automated power generation systems and high-precision papermaking automated production lines, providing high-reliability bus data transmission support for high-standard industrial automation systems.

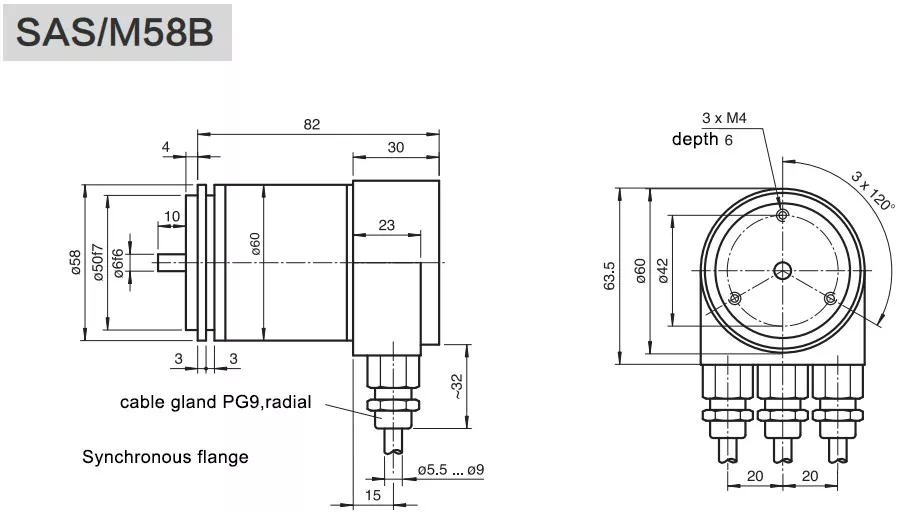

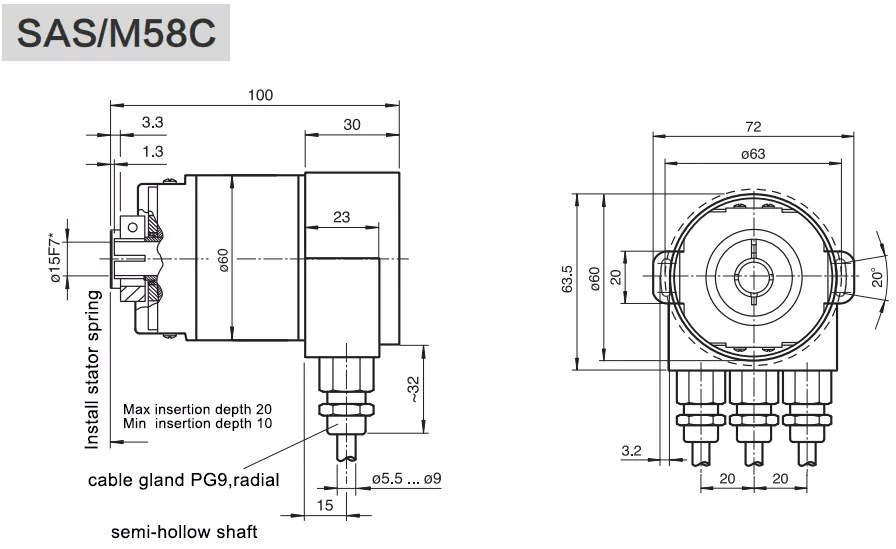

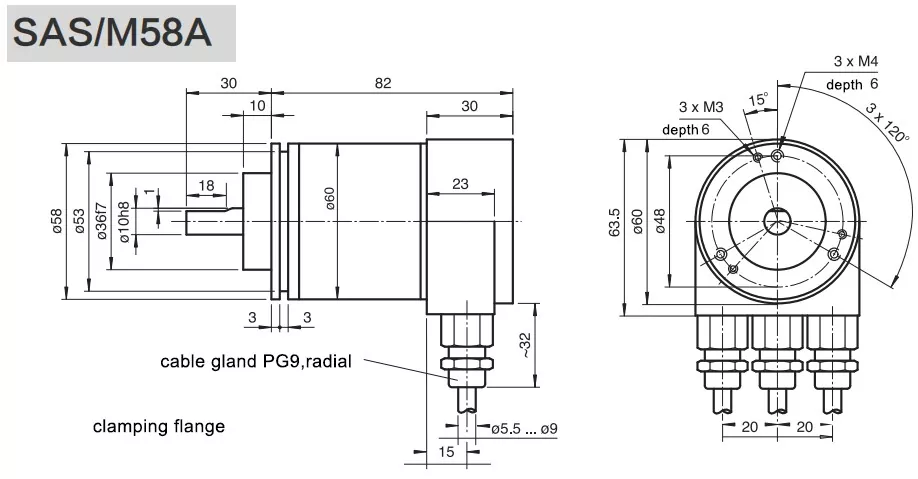

Installation dimensions

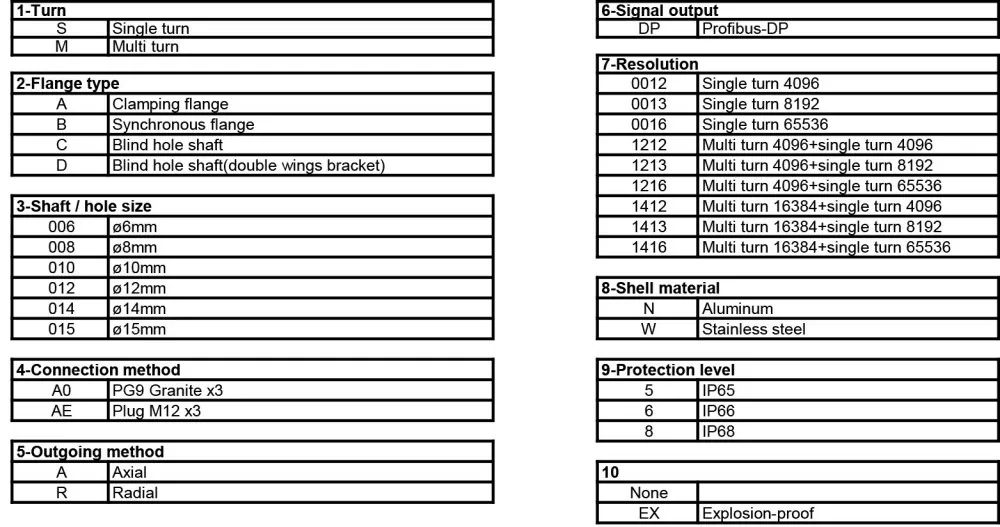

Selection

FAQ

Q1: Can you provide professional parameter selection guidance?

A: Yes. Our technical team will provide one-on-one parameter selection service according to customer’s equipment type, working condition, speed measurement and positioning requirements.

Q2: What types of encoders can you provide for different industrial scenarios?

A: We provide incremental, single-turn absolute and multi-turn absolute heavy duty encoders, covering speed measurement, positioning, stroke recording and other functions required by various industrial equipment.

Q3: How to confirm the protection grade required for on-site working conditions?

A: We can recommend IP65, IP67, IP69K and customized high-protection products according to on-site dust, water, oil pollution and flushing conditions to ensure perfect matching with working conditions.

Q4: How to choose the right signal output and communication protocol?

A: According to the customer’s PLC system, controller model and transmission distance, we recommend NPN/PNP, RS422 differential and various bus protocol encoders to ensure stable signal matching.

Q5: Can you replace and upgrade old models of encoders?

A: Yes. We can provide compatible replacement and performance upgrade schemes according to customer’s old encoder parameters, realizing seamless equipment replacement.
