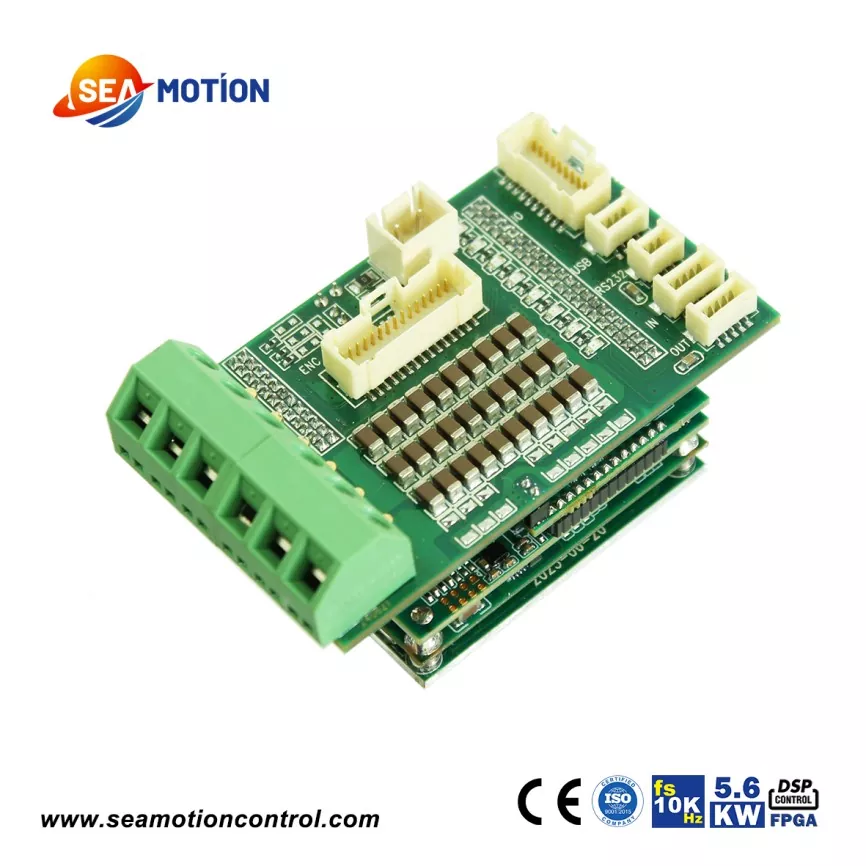

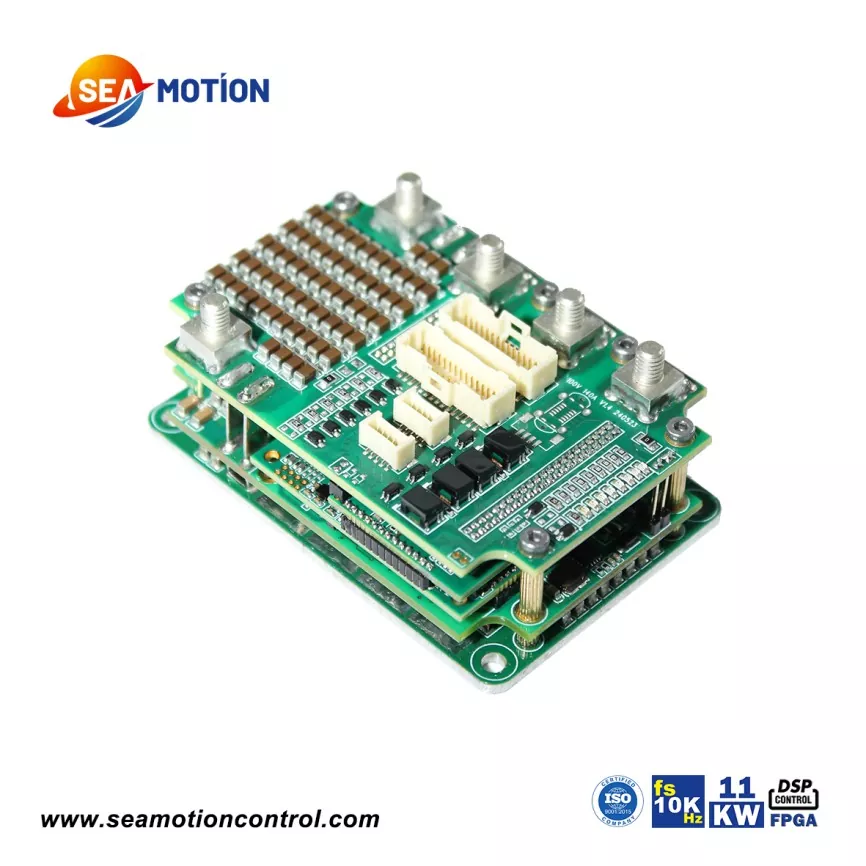

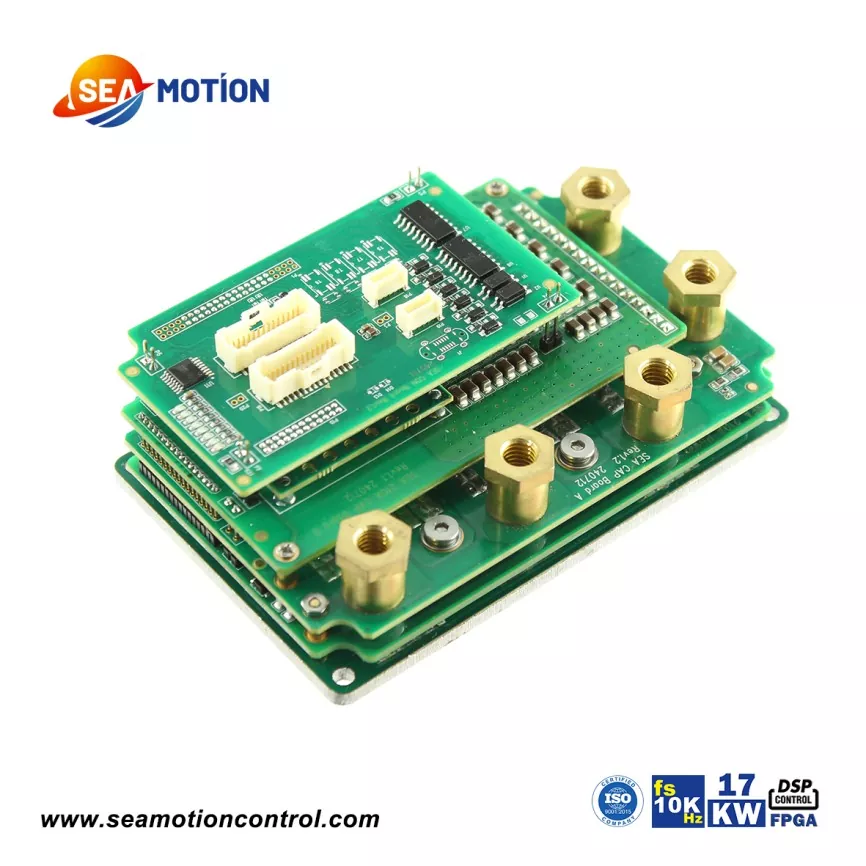

SEA MOTION Chinese AGV Servo Drives are benchmark products in the domestic high-end servo industry, comprehensively optimizing the defects of large size and low power density of traditional servo drives. The advanced DSP+FPGA architecture achieves ultra-high response speed, wide control bandwidth and excellent linearity. The ultra-compact design realizes extreme integration, with tiny size bringing powerful continuous power output. It supports incremental/absolute, resolver/absolute dual feedback and full-type DC motors, with extremely strong universality. Verified by 50000-hour MTBF and SGS EMC certification, the products have ultra-high operational stability. As a core supplier for top domestic robot and medical enterprises, we occupy a leading position in China’s high-precision turntable market with a 90% client coverage rate.
|
Parameter |
Unit |
70/100 |
80/80 |
140/100 |
|
Minimum supply voltage |
VDC |
12 |
||
|
Rated supply voltage |
VDC |
85 |
65 |
85 |
|
Maximum supply voltage |
VDC |
95 |
75 |
95 |
|
Maximum continuous power output |
W |
5600 |
5000 |
11000 |
|
Efficiency (rated power) |
% |
95 |
||
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
||
|
Rated DC current |
A |
70 |
80 |
140 |
|
Effective continuous current(Ic) |
A |
49.5 |
56.5 |
99 |
|
Current peak(2*ic) |
A |
— |
— |
— |
SEA MOTION AGV Servo Drives have remarkable advantages in miniaturization, power performance, control precision and response speed. The highly integrated structure saves equipment space, while the high power density meets high-load industrial operation demands. The multi-feedback and multi-motor compatibility greatly expands application scenarios. With ultra-high stability and precision, they are widely used in semiconductor IC precision equipment, embodied intelligent robots, high-precision single and multi-axis motion turntables, high-end medical devices and military special equipment, becoming a representative high-quality domestic solution for high-end motion control.
