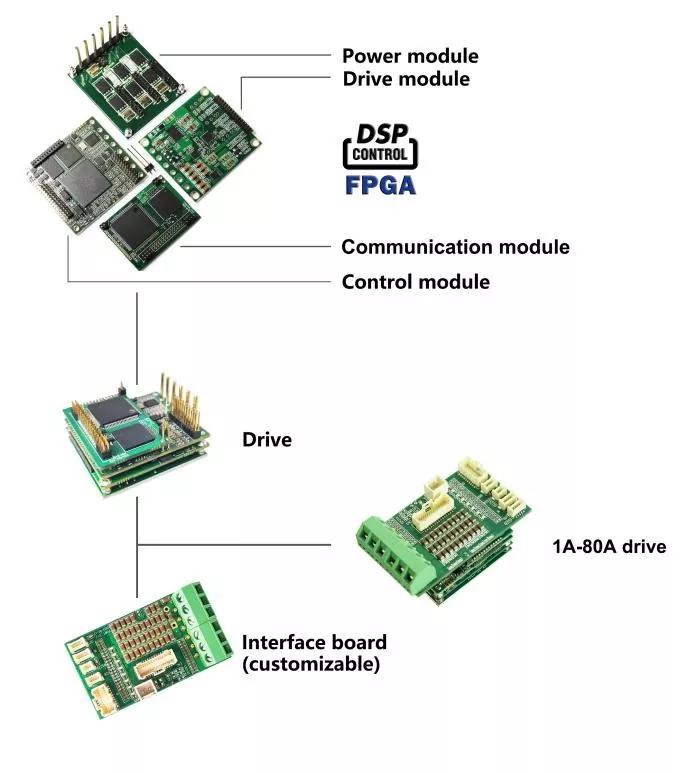

SEA MOTION Motion control Servo Drives are flagship core products that outperform traditional servo drives in size, power and response performance. Adopting advanced DSP+FPGA architecture, the drives achieve ultra-fast response, high bandwidth and excellent linearity.

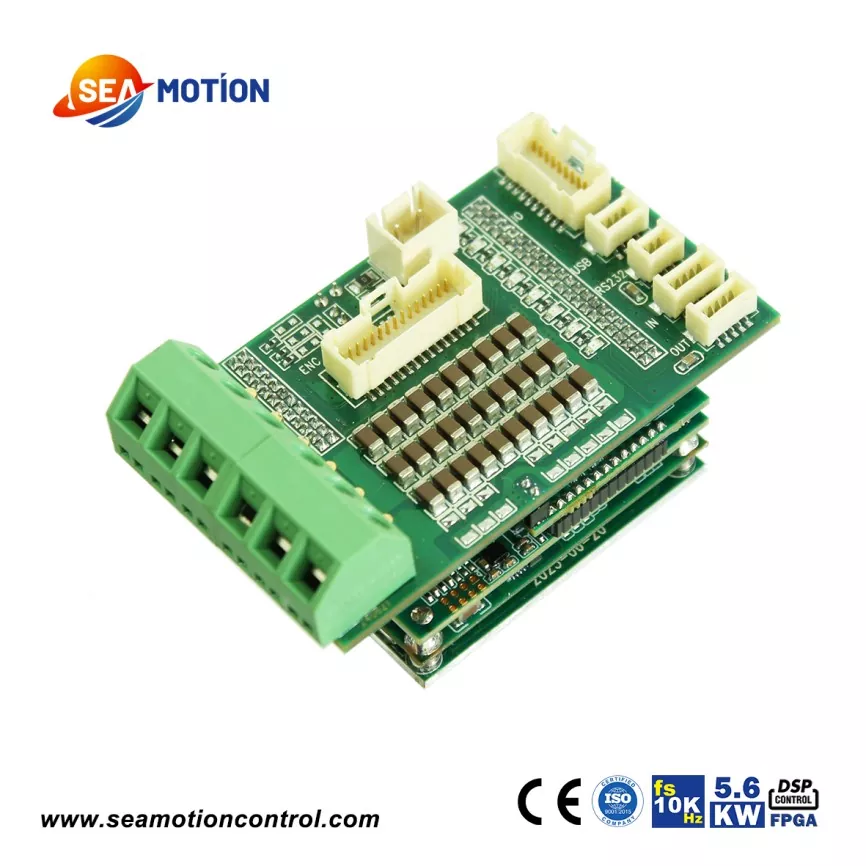

They feature ultra-high integration and power density: the SEA 1-80A is matchbox-sized, while the cigarette-box-sized SEA210A reaches 17KW continuous output power. Supporting mainstream encoders, dual feedback modes and nearly all DC motors, the products boast strong universality. As a reliable Motion control Servo Drives manufacturer, we serve top domestic robot and surgical robot enterprises, covering 90% of China’s high-precision turntable manufacturers. Certified with 50000-hour MTBF and SGS EMC, our products deliver long-term stable operation.
|
Parameters |
Organization |
1/100 |
3/100 |
6/100 |
10/100 |
15/100 |
25/100 |
50/100 |
70/100 |
80/80 |
|
Minimum supply voltage |
VDC |
11 |
||||||||
|
Rated supply voltage |
VDC |
85 |
65 |
|||||||
|
Maximum supply voltage |
VDC |
95 |
75 |
|||||||
|
Maximum continuous power output |
W |
80 |
235 |
470 |
800 |
1125 |
2000 |
4000 |
5600 |
50000 |
|
Efficiency (rated power) |
% |
95 |
||||||||
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
||||||||
|
Rated DC current |
A |
1 |
3 |
6 |
10 |
15 |
25 |
50 |
70 |
80 |
|
Effective continuous current(Ic) |
A |
0.7 |
2.1 |
4.2 |
7.1 |
10 |
17.7 |
35.3 |
49.5 |
56.5 |
|
Current peak(2*ic) |
A |
1.4 |
4.2 |
8.4 |
14.2 |
20 |
35.4 |
— |
— |
— |

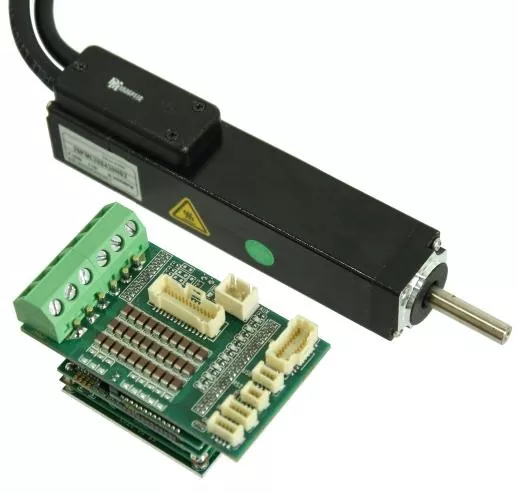

These Motion control Servo Drives have core competitive edges of miniaturization, high power density and high control precision. The dual feedback design ensures accurate motion calibration, while the advanced architecture guarantees ultra-sensitive response and stable linear output. Compatible with frameless torque motors, brushless DC motors, voice coil motors and other mainstream DC motors, they adapt to diverse equipment demands. Widely applied in integrated circuit equipment, embodied intelligence robots, high-precision motion simulation turntables, medical devices and military equipment, they have become the core preferred component for high-end precision motion control projects across multiple industries.

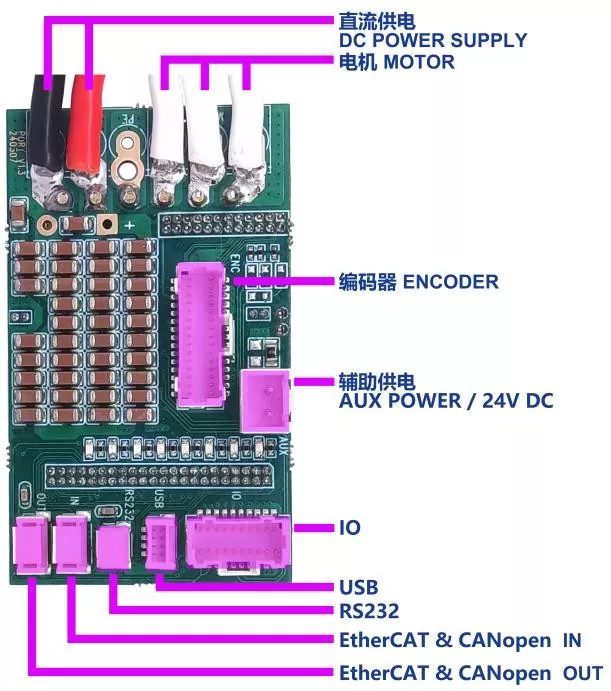

Interface definition of Motion control Servo Drives SEA1-80A

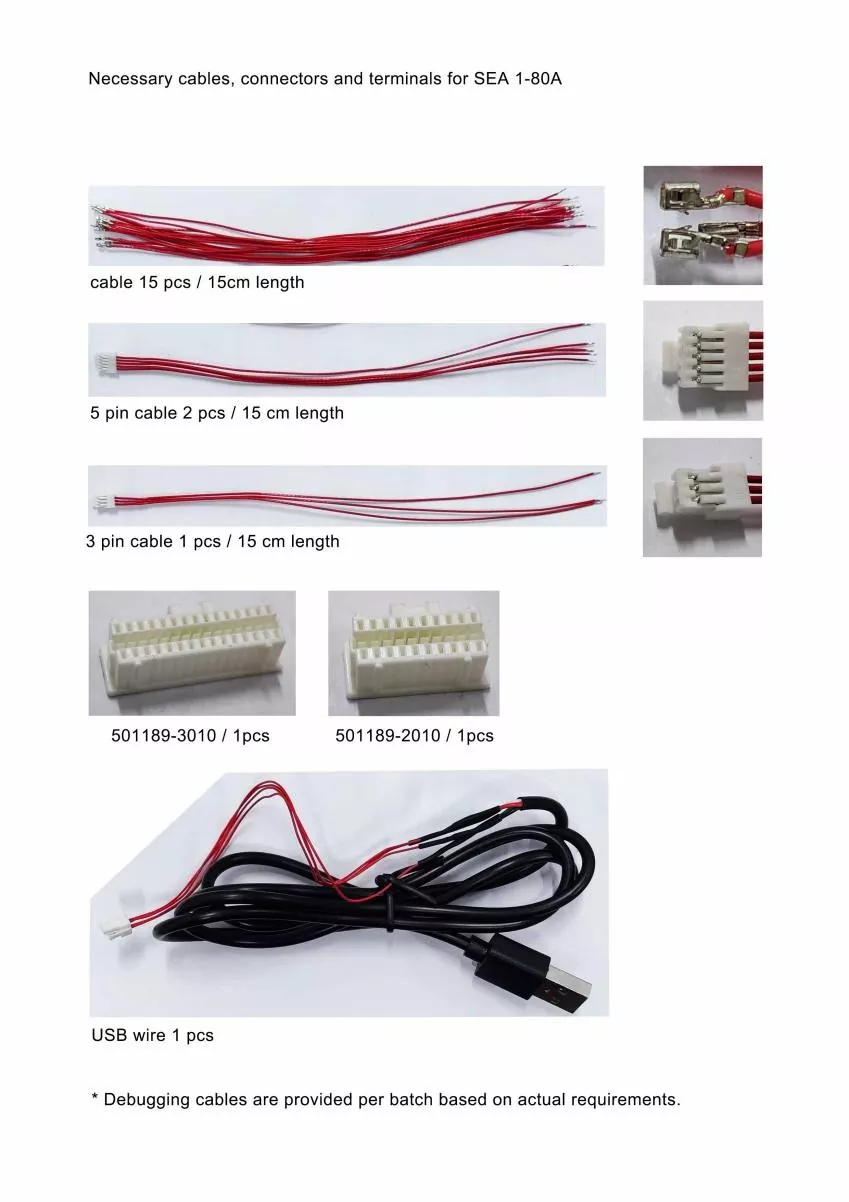

Necessary cables for product debugging.
