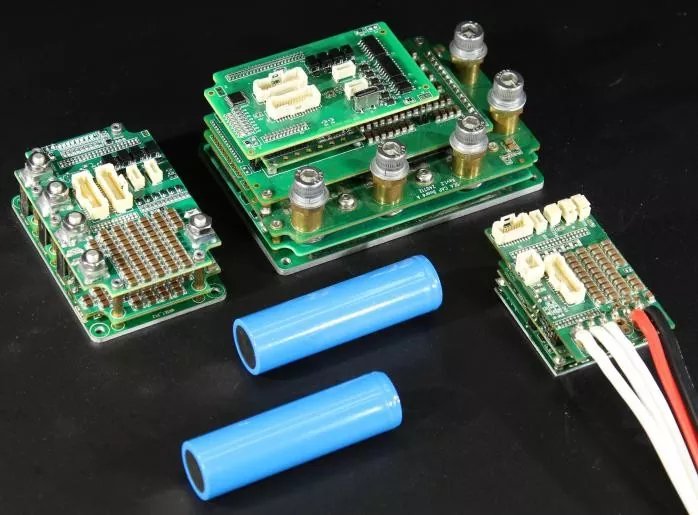

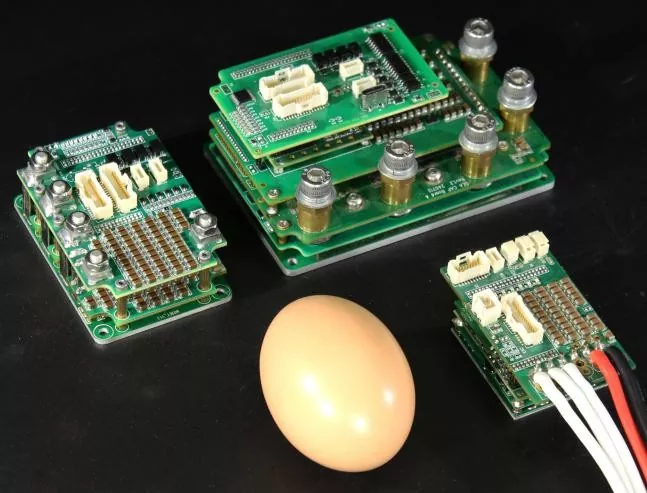

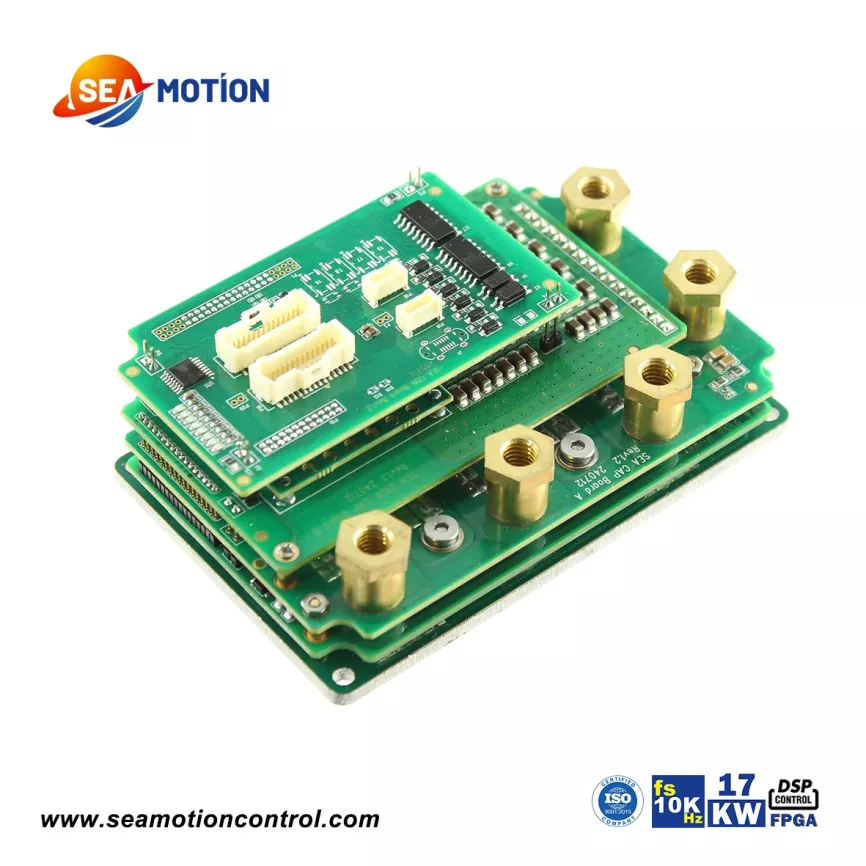

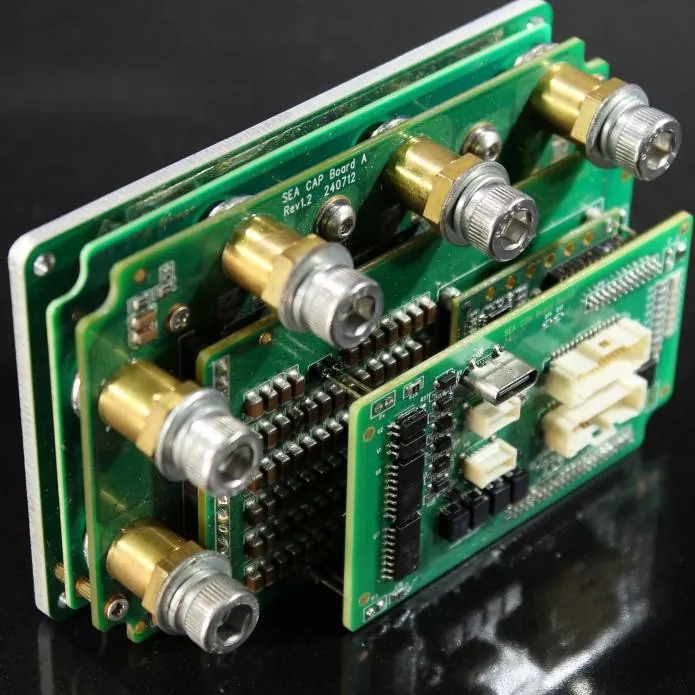

Different from traditional bulky servo drives, our Motion simulation servo drives adopt ultra-high integrated design with ultra-small size and ultra-high power density. The DSP+FPGA architecture empowers ultra-fast response, wide bandwidth and excellent linearity. Supporting multiple dual feedback modes and full-type DC motors, the products have extremely strong universality. All products pass strict quality tests, with 50000-hour MTBF and SGS EMC certification. We are a core supplier for top domestic robot and surgical robot companies, partnering with 90% of China’s high-precision turntable manufacturers to provide high-quality and reliable motion control core components.
|
Parameter |
Unit |
210/100 |
100/200 |
|
Minimum supply voltage |
VDC |
11 |
20 |
|
Rated supply voltage |
VDC |
85 |
170 |
|
Maximum supply voltage |
VDC |
95 |
195 |
|
Maximum continuous power output |
KW |
17 |
16.5 |
|
Efficiency (rated power) |
% |
95 |
95 |
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
Up to 96% of DC link voltage |
|
Rated DC current |
A |
210 |
100 |
|
Effective continuous current(Ic) |
A |
150 |
70 |
|
Current peak(2*ic) |
A |
— |
— |
Our Motion simulation Servo Drives stand out for miniaturization, high power output, high control accuracy and wide compatibility. The compact structure simplifies equipment assembly and saves installation space, while the high power density meets high-load operation demands. The multi-feedback switching function adapts to different precision working conditions, and the excellent linearity ensures stable operation.
They are widely applicable to IC semiconductor equipment, embodied intelligence robotic systems, high-precision motion simulation equipment, sophisticated medical devices and military special equipment, becoming the preferred high-reliability solution for global high-end industrial motion control.
