As a professional China Robot dogs servo drive supplier, SEA MOTION’s core Robot dog Servo Drives break the performance bottleneck of traditional servo products. The unique DSP+FPGA dual-core system brings ultra-fast dynamic response, maximum bandwidth and excellent linear control accuracy. The ultra-high integrated design realizes miniaturization and high power density, with ultra-small size supporting super-large continuous power output.
Compatible with almost all DC motors and mainstream encoder dual feedback modes, the products have strong versatility. After strict testing, they obtain 50000-hour MTBF and SGS EMC certification. We maintain long-term cooperative relations with top domestic robot and surgical robot manufacturers, covering 90% of domestic high-precision turntable clients with stable and reliable supply services.
|
Parameters |
Organization |
1/100 |
3/100 |
6/100 |
10/100 |
15/100 |
25/100 |
50/100 |
70/100 |
80/80 |
|
Minimum supply voltage |
VDC |
11 |
||||||||
|
Rated supply voltage |
VDC |
85 |
65 |
|||||||
|
Maximum supply voltage |
VDC |
95 |
75 |
|||||||
|
Maximum continuous power output |
W |
80 |
235 |
470 |
800 |
1125 |
2000 |
4000 |
5600 |
50000 |
|
Efficiency (rated power) |
% |
95 |
||||||||
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
||||||||
|
Rated DC current |
A |
1 |
3 |
6 |
10 |
15 |
25 |
50 |
70 |
80 |
|
Effective continuous current(Ic) |
A |
0.7 |
2.1 |
4.2 |
7.1 |
10 |
17.7 |
35.3 |
49.5 |
56.5 |
|
Current peak(2*ic) |
A |
1.4 |
4.2 |
8.4 |
14.2 |
20 |
35.4 |
— |
— |
— |
The Robot dogs servo drive feature compact installation size, outstanding power density, precise control and rapid response, bringing great design freedom for equipment developers. The multi-scenario compatible design adapts to various complex working conditions, and the high stability ensures long-term non-fault operation. They are widely applied in high-end fields including integrated circuit manufacturing, embodied intelligence bionic robots, high-precision motion simulation turntables, sophisticated medical surgical equipment and military special equipment, delivering cost-effective and high-reliability motion control solutions for global high-end manufacturing industries.

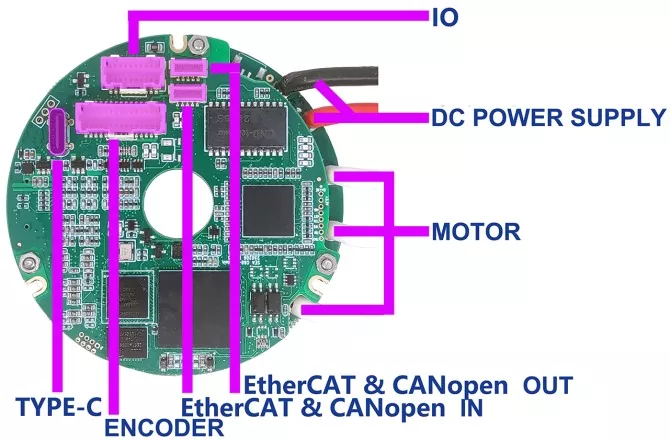

Interface definition of Robot dog Servo Drives SEAC68
