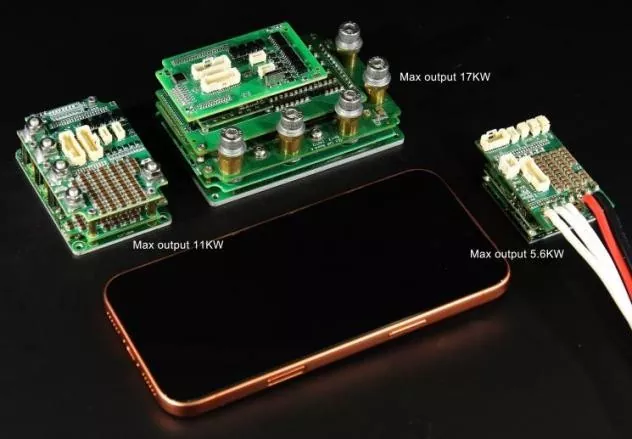

SEA MOTION rate tables servo drives subvert the performance limitations of traditional servo drives with outstanding comprehensive advantages. Powered by DSP+FPGA dual-core architecture, they realize ultra-fast response speed, large bandwidth and superior linear control. The ultra-compact design achieves extreme integration: tiny body size matches huge power output, with the SEA210A delivering 17KW continuous power in a cigarette-box size. They support incremental/absolute and resolver/absolute dual feedback, covering almost all mainstream encoders and various DC motors. With 50000-hour MTBF and SGS EMC certification, the products are highly reliable. We cooperate with top domestic robot and medical enterprises, dominating 90% of China’s high-precision turntable market with stable and trustworthy product performance.
|
Parameter |
Unit |
140/100 |
160/80 |
40/200 |
|
Minimum supply voltage |
VDC |
11 |
11 |
21 |
|
Rated supply voltage |
VDC |
85 |
65 |
170 |
|
Maximum supply voltage |
VDC |
95 |
75 |
195 |
|
Maximum continuous power output |
KW |
11 |
10 |
6.4 |
|
Efficiency (rated power) |
% |
95 |
95 |
95 |
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
||
|
Rated DC current |
A |
140 |
160 |
40 |
|
Effective continuous current(Ic) |
A |
99 |
113 |
28 |
|
Current peak(2*ic) |
A |
— |
— |
— |
Featuring small size, high power density, high precision and strong universality, SEA MOTION rate tables servo drives solve the pain points of bulky size and insufficient power of traditional products. The high-precision dual feedback system ensures precise motion control, and the advanced architecture ensures stable and sensitive dynamic response.
Compatible with full-series DC motors, they adapt to complex motion control demands. They are widely used in semiconductor and IC manufacturing equipment, embodied intelligent robots, high-precision single/multi-axis turntables, surgical medical devices and special military equipment, providing stable and efficient motion control solutions for global high-end manufacturing fields.
