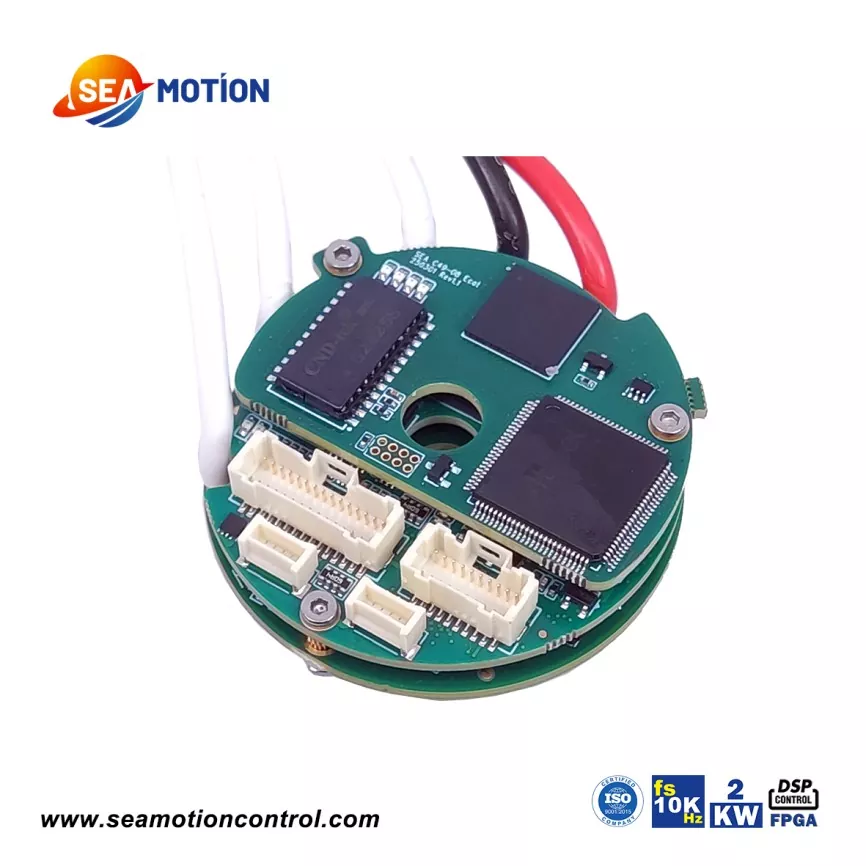

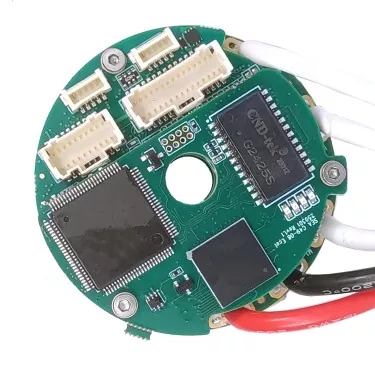

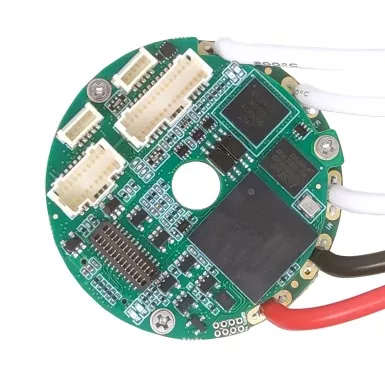

The Humanoid Robots Servo Drive features ultra-fast response, large bandwidth and high linearity. They achieve industry-leading miniaturization and power density: matchbox-sized SEA 1-80A and 17KW high-power SEA210A with cigarette-box size. Supporting full mainstream encoders, dual feedback modes and all types of DC motors, the products have wide universality. Certified with 50000-hour MTBF and SGS EMC, they own ultra-high stability. We serve top domestic robot and medical enterprises, occupying 90% of China’s high-precision turntable market with superior product strength.
|
Parameter |
Unit |
1/100 |
3/100 |
6/100 |
10/100 |
15/100 |
25/100 |
|
Minimum supply voltage |
VDC |
11 |
|||||
|
Rated supply voltage |
VDC |
85 |
|||||
|
Maximum supply voltage |
VDC |
95 |
|||||
|
Maximum continuous power output |
W |
80 |
235 |
470 |
800 |
1125 |
2000 |
|
Efficiency (rated power) |
% |
95 |
|||||
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
|||||
|
Rated DC current |
A |
1 |
3 |
6 |
10 |
15 |
25 |
|
Effective continuous current(Ic) |
A |
0.7 |
2.1 |
4.2 |
7.1 |
10 |
17.7 |
|
Current peak(2*ic) |
A |
1.4 |
4.2 |
8.4 |
14.2 |
20 |
35.4 |
SEA MOTION Humanoid robots Servo Drives have four core advantages: ultra-compact size, ultra-high power density, high control precision and fast response speed. The flexible compatibility with various DC motors and dual feedback modes enables adaptive control of diverse equipment.
Strict industrial-level testing ensures long-term stable operation. Relying on superior performance, the products are widely used in semiconductor IC equipment, embodied intelligent robots, high-precision multi-axis turntables, surgical medical equipment and military special devices, providing reliable domestic high-end motion control core components for sophisticated industrial upgrading.

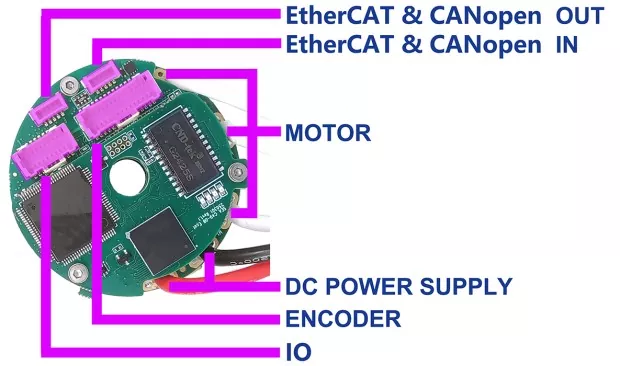

Interface definition of Humanoid robots Servo Drives SEAC49
