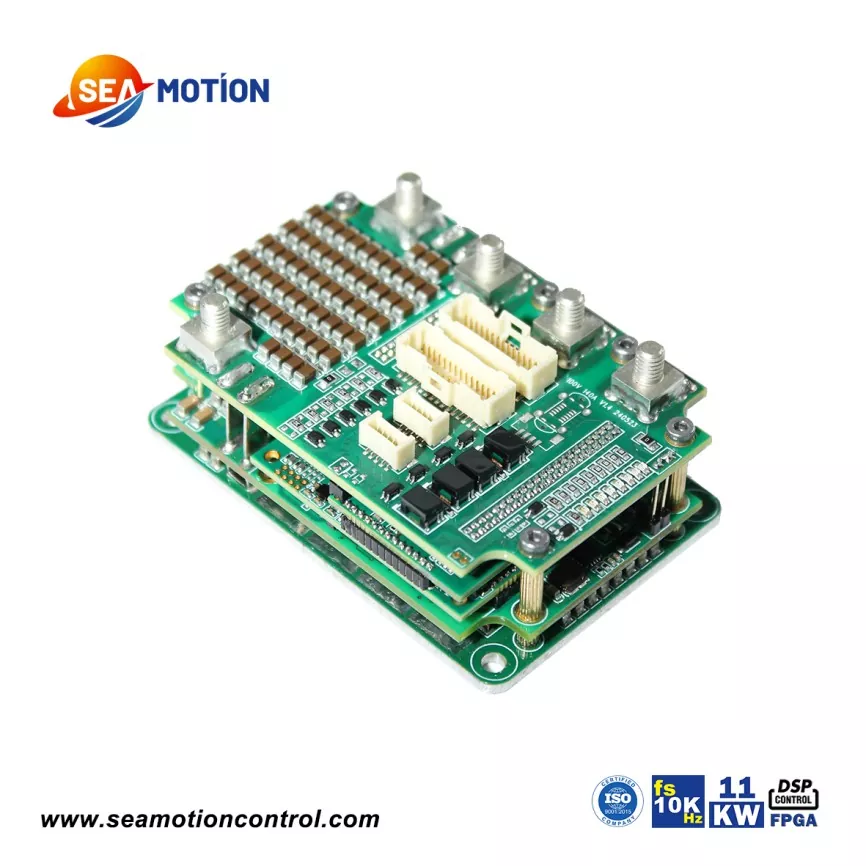

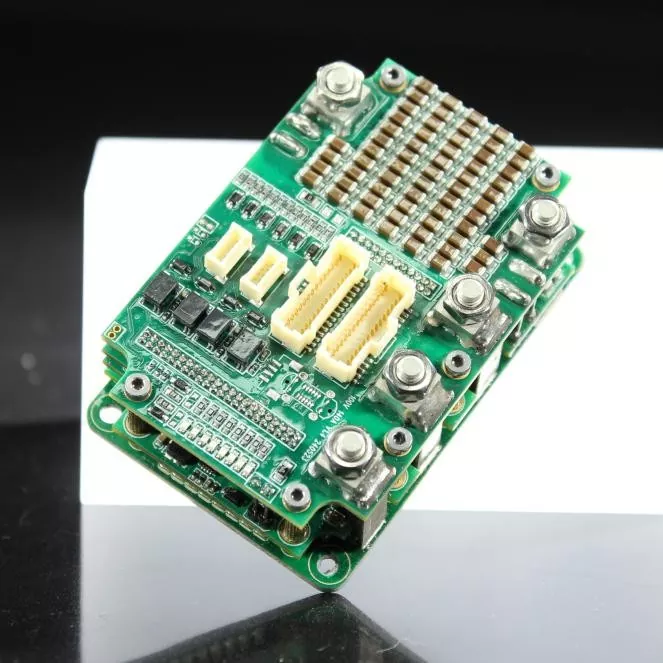

SEA MOTION high current dc servo drives breaks the performance limitations of traditional servo drives, combining ultra-portable appearance with powerful motion control capabilities. The exclusive DSP+FPGA architecture empowers ultra-fast response speed, maximum bandwidth and optimal linearity, laying a solid foundation for high-precision operation. It supports almost all mainstream encoder types, multiple dual feedback modes, IO expansion and STO safety functions, and adapts to -45°C low-temperature harsh environments. Every production link follows strict standards; each PCB layer is tested separately, with over ten inspections throughout production. Though positioned in the high-end market, its reliable quality supports all kinds of sophisticated industrial and intelligent equipment applications.
|
Parameter |
Unit |
140/100 |
160/80 |
40/200 |
|
Minimum supply voltage |
VDC |
11 |
11 |
21 |
|
Rated supply voltage |
VDC |
85 |
65 |
170 |
|
Maximum supply voltage |
VDC |
95 |
75 |
195 |
|
Maximum continuous power output |
KW |
11 |
10 |
6.4 |
|
Efficiency (rated power) |
% |
95 |
95 |
95 |
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
||
|
Rated DC current |
A |
140 |
160 |
40 |
|
Effective continuous current(Ic) |
A |
99 |
113 |
28 |
|
Current peak(2*ic) |
A |
— |
— |
— |

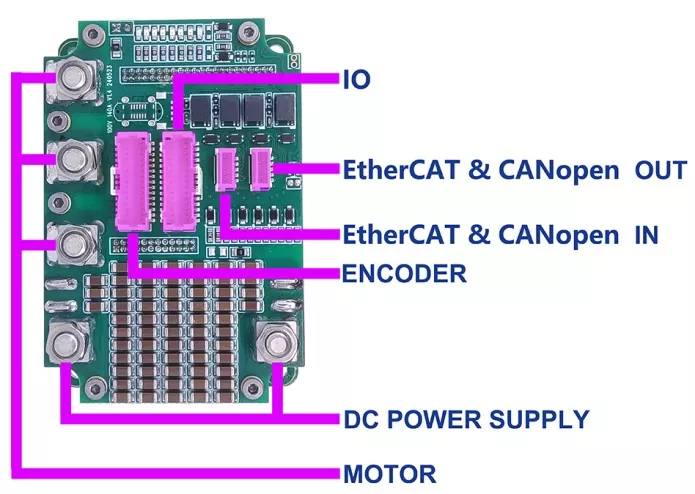

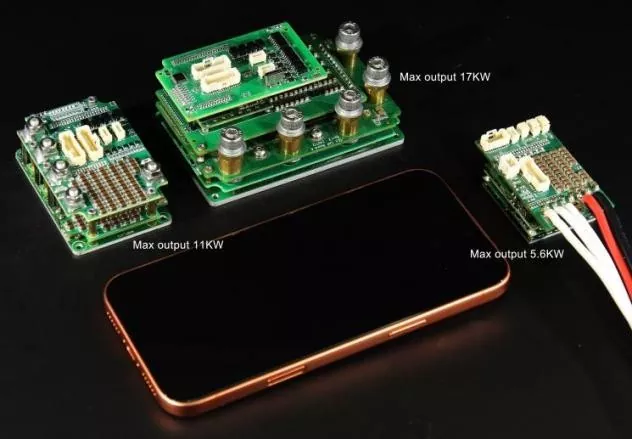

The core advantages of SEA MOTION high current dc servo drives lie in high integration, miniaturization and high current output, enabling flexible embedding into equipment shells, bases and brackets with simple heat dissipation design. Its diverse feedback interfaces and safety functions ensure operational stability and compatibility. It is widely used in semiconductor precision equipment such as chip mounting and wafer transmission devices. It also excels in embodied intelligent robots like robotic wolves, high-precision motion simulation turntables, medical surgical robots and pathological slicing equipment, becoming a preferred solution for global high-end precision motion control scenarios.
high current dc servo drivess SEA140A
