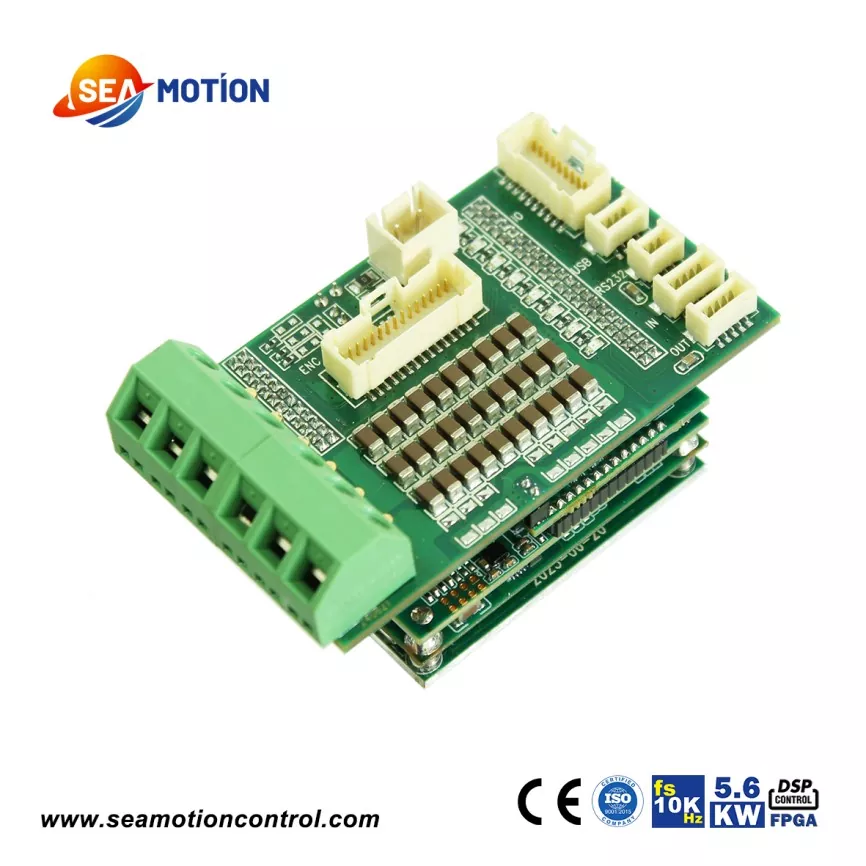

As a professional Integrated servo drive manufacturer, SEA MOTION develops ultra-compact, high-performance integrated servo drives built with advanced DSP+FPGA architecture. Our strict multi-layer testing process and industrial-grade quality control earn global client trust. This premium integrated servo drive supports diverse encoder feedback and extreme low-temperature operation for high-end industrial scenarios.
|
Parameters |
Organization |
1/100 |
3/100 |
6/100 |
10/100 |
15/100 |
25/100 |
50/100 |
70/100 |
80/80 |
|
Minimum supply voltage |
VDC |
11 |
||||||||
|
Rated supply voltage |
VDC |
85 |
65 |
|||||||
|
Maximum supply voltage |
VDC |
95 |
75 |
|||||||
|
Maximum continuous power output |
W |
80 |
235 |
470 |
800 |
1125 |
2000 |
4000 |
5600 |
50000 |
|
Efficiency (rated power) |
% |
95 |
||||||||
|
Maximum output voltage |
V |
Up to 96% of DC link voltage |
||||||||
|
Rated DC current |
A |
1 |
3 |
6 |
10 |
15 |
25 |
50 |
70 |
80 |
|
Effective continuous current(Ic) |
A |
0.7 |
2.1 |
4.2 |
7.1 |
10 |
17.7 |
35.3 |
49.5 |
56.5 |
|
Current peak(2*ic) |
A |
1.4 |
4.2 |
8.4 |
14.2 |
20 |
35.4 |
— |
— |
— |

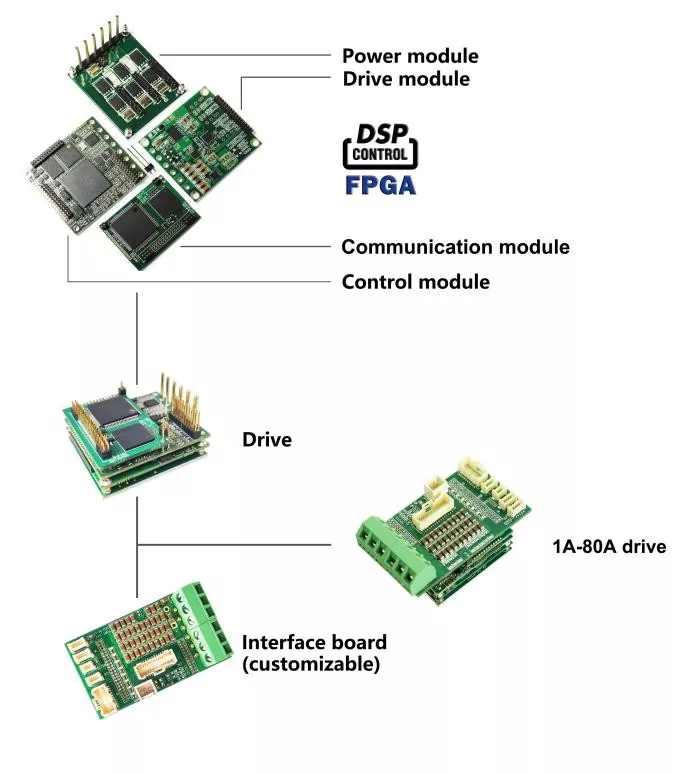

SEA MOTION Integrated servo drive stands as one of our flagship core products, outperforming traditional servo drives with a ultra-compact form factor and superior comprehensive performance. Adopting advanced DSP+FPGA dual-core architecture, it delivers ultra-fast response, wide bandwidth and excellent linearity. As a reliable Integrated servo drive manufacturer, we implement extremely stringent quality control standards. Each unit undergoes more than ten repeated tests during multi-layer PCB assembly before warehousing, ensuring top-tier stability. It supports full mainstream encoder feedback, dual feedback modes, IO and STO functions, and works stably at -45°C low temperature. Backed by professional R&D and quality teams, it perfectly meets diverse high-end industrial application demands.

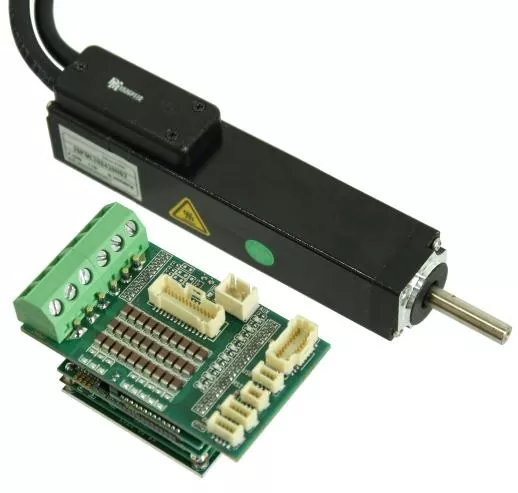

Featuring small size, large current output and high integration, this Integrated servo drives grant engineers great design freedom for flexible embedded installation. Its powerful compatibility covers incremental/absolute dual feedback, resolver/absolute dual feedback, IO and STO functions, with outstanding low-temperature resistance. It is widely adopted in semiconductor industries including wafer handling, dicing, die bonding and probing stations. It also dominates high-precision single/multi-axis turntables with a 90% domestic market share, and serves embodied intelligence robots, surgical robots and pathological slicing equipment for top-tier high-precision motion control.

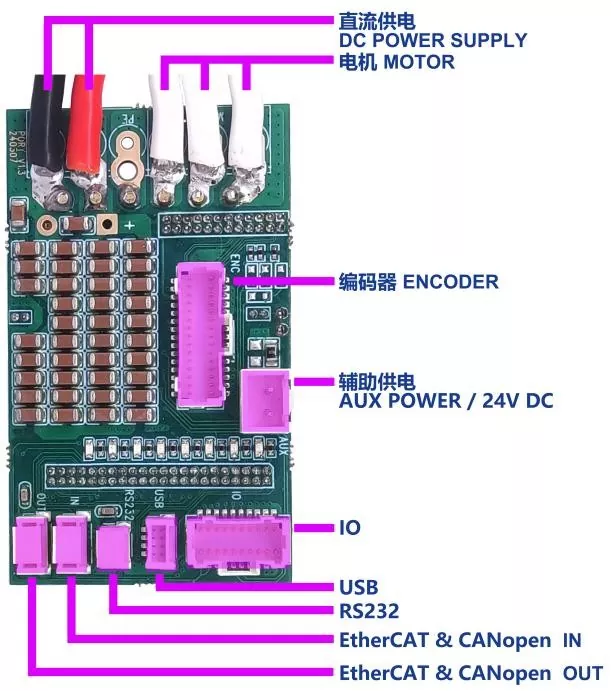

Interface definition of SEA 1-80A dc servo drive

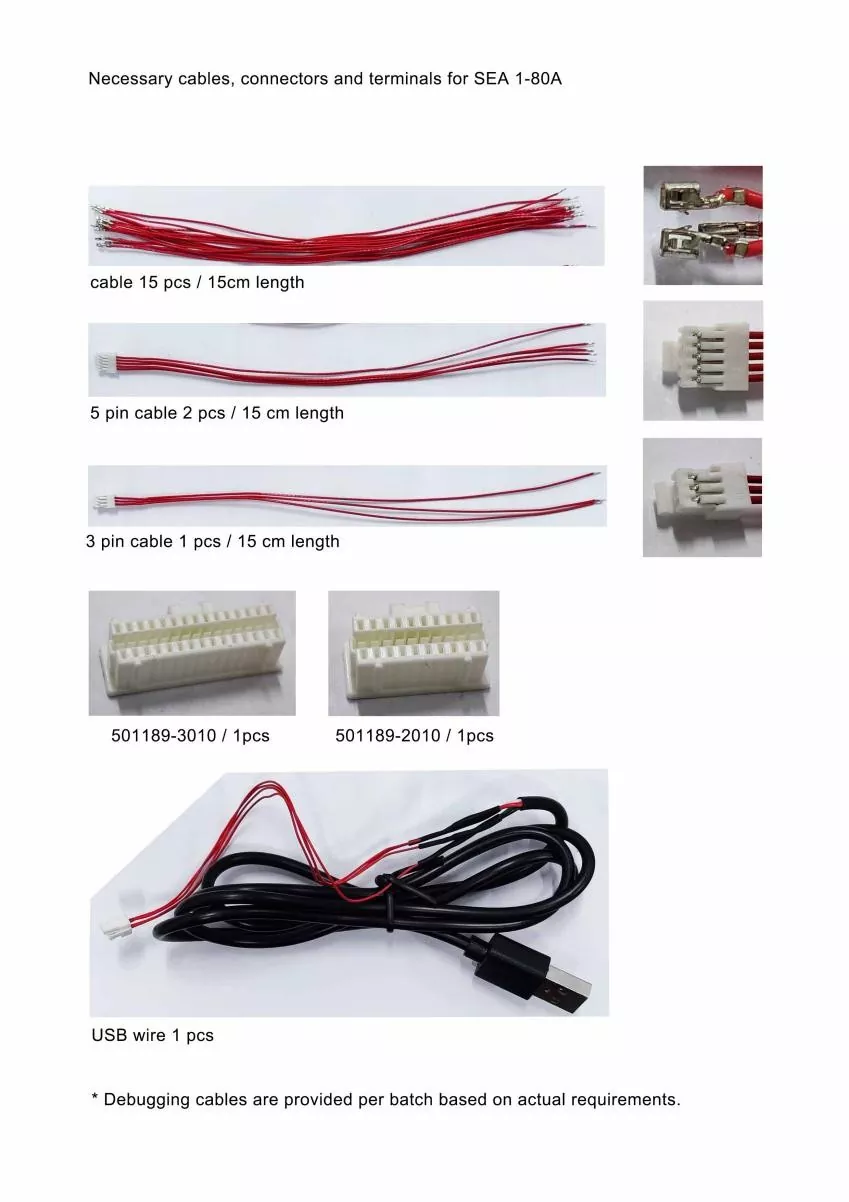

Necessary cables for product debugging.
